DRAM, or Dynamic Random-Access Memory, is the type of memory that is erased when a Cisco device is rebooted. DRAM is used to store the running configuration and routing tables of the device. Since DRAM is volatile memory, its contents are lost when the device is powered down or restarted. This is in contrast to non-volatile memory types like flash and NVRAM, which retain their contents even after a reboot1. Reference := Types of memory on a Cisco device - Study-CCNA

The Cisco Nexus 9300 Series switches are a family of high-performance data center switching products. However, only a specific subset of models within this series supports 400-Gbps Ethernet ports.

Based on the information available online, two models from the Cisco Nexus 9300 Series that offer 400-Gbps Ethernet ports are:

Cisco Nexus 9316D-GX: This is a 1RU fixed switch that provides 16 ports of 400 Gbps (QSFP-DD) with a non-blocking switch architecture. It's suitable for aggregation, core, or spine applications.

Cisco Nexus 93600CD-GX: This is also a 1RU fixed switch, but it offers a combination of ports. It includes 28 ports of 100G and 8 ports of 400 Gbps (QSFP-DD) with a non-blocking switch architecture. This model is well-suited for data center Top-of-Rack (ToR), End-of-Row (EoR), and collapsed aggregation and access deployments, particularly when used with Cisco Nexus 2000 Fabric Extenders.

Cisco Nexus 9000 Series 400G Deployment Guide

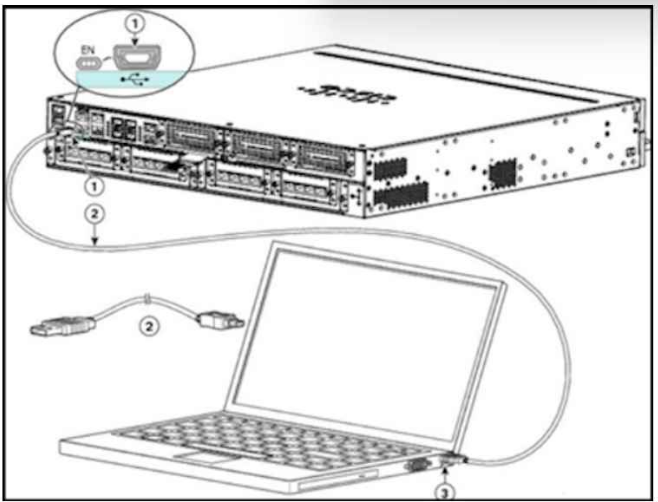

* The label '1' points to a rectangular port on the laptop. This is consistent with the shape of a USB Type A port.

* The cable labeled '2' has an RJ-45 connector on one end and a USB Type A connector on the other end.

Incorrect Answers:

* C. 2 is a USB 5-pin mini USB Type B to USB Type A console cable: The connector on the cable labeled '2' is not a mini USB Type B connector. It is a standard RJ-45 connector.

* D. 3 is a USB Type A port: The label '3' points to a port on the server that is not visible in the image. Therefore, we cannot identify the type of port it is.

* E. 3 is a USB 5-pin mini USB Type B port: Same as D, we cannot identify the type of port labeled '3' due to lack of visibility in the image.

The tftpdnld command is specifically designed to initiate a TFTP (Trivial File Transfer Protocol) transfer of an image within ROMmon mode on a Cisco device. Here's why it's the correct answer:

ROMmon Functionality: ROMmon (Read-Only Memory Monitor) is a basic operating system mode used when the main Cisco IOS is unavailable. The tftpdnld command works from ROMmon to download a new IOS image.

TFTP Protocol: The tftpdnld command utilizes TFTP, which is a simple and reliable protocol commonly used for transferring Cisco IOS images.

Purpose: The command is used primarily for recovering corrupt images or upgrading to a different IOS version.

Why other options are incorrect:

Xmodem: XMODEM is an older and less reliable file transfer protocol that's less suitable than TFTP for Cisco IOS image transfers.

copy tftp: flash: This command format is used within the Cisco IOS itself, not in ROMmon mode.

copy flash: tftp: This command format would attempt to upload an image from flash memory to a TFTP server, instead of downloading an image.

RMA (Return Materials Authorization) is a tracking number that is assigned to a product that is being returned to the manufacturer for repair or replacement. The RMA number allows the manufacturer to track the progress of the return and ensure that the product is returned to the correct customer.

While the initial answers focused on the most common causes, here's why the other options could also contribute to an interface being stuck in the 'up/down' state:

A . Speed or Duplex Mismatch: Devices on either end of an Ethernet connection need to use compatible speed (e.g., 100 Mbps, 1 Gbps) and duplex (full-duplex or half-duplex) settings. Mismatches can prevent the line protocol from coming up even if the physical link is established.

B . Layer 2 Mismatch in Encapsulation Type: Some protocols used on Ethernet networks, like ISL and 802.1Q, have specific encapsulation requirements. If devices on each end aren't using the same encapsulation type, the line protocol will likely remain down.

C . The Ethernet Interface Has Been Manually Disabled: Correct! Administrators can put an interface in a shutdown state using commands like shutdown. This brings down the line protocol even if the physical connection is good.

D . Keepalives Are Not Being Received by the Local Device: While less likely to be the sole cause, issues with keepalive mechanisms used in some routing protocols could potentially lead to the line protocol going down. If the local device expects keepalives and doesn't receive them, it might assume a connectivity problem and affect the interface status.

E . The Ethernet Cable Might Not Be Attached Properly: While a disconnected or faulty cable would usually make the interface down/down, it's possible in some scenarios for a partially connected or damaged cable to result in a link being detected (Layer 1 up) but with errors preventing the line protocol (Layer 2) from initializing.

Troubleshooting network issues often involves considering multiple factors and testing different possibilities. The 'up/down' status gives important clues but might have several potential root causes.

The copy startup-config running-config command is used during the password recovery process on a Cisco router to load the saved configuration into the device's active running configuration. Here's why this is the correct choice:

Password Recovery Context: Password recovery often involves booting into ROMmon mode and changing the configuration register to bypass the normal boot process. This leaves the device with a blank running configuration.

Restoring Configuration: The copy startup-config running-config command copies the stored configuration (startup-config) from NVRAM into the running-config, which is used by the router for its operations.

Why other options are incorrect:

load_helper: While the load_helper command sometimes appears in password recovery procedures, it's typically used for older models and may not be necessary for all Cisco routers.

configure terminal: This command simply enters global configuration mode. It doesn't directly load a configuration.

copy running-config startup-config: This command saves the active running configuration into NVRAM as the startup-config. It's the reverse of what you need for password recovery.

The copy tftp flash command is used to download a Cisco IOS image from a TFTP (Trivial File Transfer Protocol) server and store it in the Flash memory of the Cisco device. Here's the breakdown of the command:

copy: Indicates a file transfer operation.

tftp: Specifies the use of the TFTP protocol.

flash: Specifies the destination as the flash memory of the Cisco device.

Why other options are incorrect:

copy tftp nvram: This would attempt to copy a file from a TFTP server to the NVRAM of the device. NVRAM is typically not the desired location for storing IOS images.

copy flash tftp: This command would copy a file from the local flash memory to a TFTP server (uploading).

copy xmodem flash: This would use the XMODEM protocol for the transfer, which is slower and less reliable than TFTP for Cisco IOS images.

https://en.wikipedia.org/wiki/Trivial_File_Transfer_Protocol

A Cisco router can be configured to act as a TFTP (Trivial File Transfer Protocol) server. TFTP is a simple protocol used to transfer files without the need for authentication. On a Cisco router, the tftp-server command is used to designate the router as a TFTP server, allowing it to manage file transfers to and from connected devices. This is particularly useful for tasks such as updating the router's firmware or backing up configuration files. Neither CSU/DSU, modem, nor Cisco Content Engine are typically used as TFTP servers. Reference := The ability to configure a Cisco router as a TFTP server is documented in Cisco's support forums and knowledge base articles
