VCE 210-015 Practice Test - Questions Answers

Question list

List of questions

Question 1

(0)

During Vblock System 320 testing, one of your ESXi 5.1 servers has lost connectivity with vCenter. Which log file would first be used to troubleshoot this problem?

Question 2

(0)

You are asked to upgrade the version of the Cisco Nexus 1000V software on the Vblock System 320. Which component are you upgrading on the hypervisor?

Question 3

(0)

What is the proper sequence when upgrading the Cisco Nexus 1000V switch module?

Question 4

(0)

During the deployment of a Vblock System 320, the customer stresses the importance of network security and states that they would like to have a VM scan and capture all packets on the virtual switch

Question 5

(0)

What is the standard size of an ESXi boot LUN for a Vblock System 300?

Question 6

(0)

You are asked to restore a virtual machine from a SAN array snapshot. Which two actions must you perform to present the LUN to the ESXi host to make the data available? (Choose two.)

Question 7

(0)

You are adding an NFS volume to an ESXi host. Which three steps are required? (Choose three.)

Question 8

(0)

Click the Exhibit button. After scanning a host for compliance in VMware Update Manager you receive the message shown in the exhibit. What is the reason for the message?

Question 9

(0)

A DNS server is not reachable from the vCenter server. Which file would you need to modify to communicate properly with the vCenter infrastructure?

Question 10

(0)

During the deployment of a Vblock System, it was discovered that the Cisco Nexus 1000V VSM virtual machines were residing upon the same vSphere host in the AMP. To comply with VCE best practices fo

Related questions

You are implementing 32 new UCS B230 M3 blades into an existing Vblock System with 16 blades. After powering the new blades on, and migrating them to the Cisco Nexus 1000V, you notice that half of the new blades no longer respond to any network traffic. What is the cause?

You power on a Vblock System 320 and look at the Maps tab of an ESXi server in vCenter's Hosts And Clusters view and see an ESXi server with a red "x" over it. What is causing the ESX server problem?

A VM on the Vblock System 320 is unable to communicate on the customer network. When examining the virtual machine, you notice it has the same port group as the other VMs on the same ESXi server. Which action must you perform to resolve the problem?

Which database platform is supported with VMware 5.x in a Vblock System?

While upgrading five hosts in a vSphere cluster, the maintenance window ends. The customer does not allow you to extend the window, so now the cluster is running the hosts at different build levels. There are two hosts at the new build version, and three hosts at the previous build version. There are 11 virtual machines protected by VMware Fault Tolerance in the cluster. You now see the following error No suitable host can be found to place the Fault Tolerance Secondary VM for virtual machine SalesVM. What is the cause of this error?

The ESXi 5.0 servers appear to have hardware problems after you have powered up the Vblock System 320. You want to view the log files for the ESXi servers. What are two ways to accomplish this task? (Choose two.)

During the deployment of a Vblock System, it was discovered that the Cisco Nexus 1000V VSM virtual machines were residing upon the same vSphere host in the AMP. To comply with VCE best practices for separating the Cisco Nexus 1000V VSM virtual machines, what is missing?

Which two methods would you use to deploy an ESXi image created with Image Builder CLI? (Choose two.)

In a standard Vblock System 300 configuration with two vHBAs, the VNX Storage Processor A (SP-A) has rebooted. How will the hosts be impacted?

You want to configure vMotion on a virtual switch in a Vblock System 320. Which network configuration is required?

Question 1

During Vblock System 320 testing, one of your ESXi 5.1 servers has lost connectivity with vCenter.

Which log file would first be used to troubleshoot this problem?

varlogmessages

varlogvmkernel.log

varlogvmkwarning.log

varlogvmksummary.log

Show Answer Comment (0)

Question 2

You are asked to upgrade the version of the Cisco Nexus 1000V software on the Vblock System 320.

Which component are you upgrading on the hypervisor?

Service Console

Virtual Supervisor Module (VSM)

Virtual Ethernet Module (VEM)

Virtual Network Interface Card (vNIC)

Show Answer Comment (0)

Question 3

What is the proper sequence when upgrading the Cisco Nexus 1000V switch module?

1. Upload new VEM code to bootflash.2. Install new Cisco Nexus 1000V bin.3. Verify the upgrade using the show install all status command.

1. Upload new VSM code to bootflash.2. Install new Cisco Nexus 1000V bin.3. Verify the upgrade using the show version command.

1. Upload the new VSM code to a USB drive.2. Install new Cisco Nexus 1000V bin.3. Verify the upgrade using the show install all status command.

1. Upload the new VEM code to a USB drive.2. Install a new Cisco Nexus 1000V bin.3. Verify the upgrade using the show version command.

Show Answer Comment (0)

During the deployment of a Vblock System 320, the customer stresses the importance of network security and states that they would like to have a VM scan and capture all packets on the virtual switch to which it is connected.

Which security policy should you set?

jumbo frame

MAC address change

promiscuous

port scan

Show Answer Comment (0)

Question 5

What is the standard size of an ESXi boot LUN for a Vblock System 300?

5 gigabytes

15 gigabytes

20 gigabytes

50 gigabytes

Show Answer Comment (0)

Question 6

You are asked to restore a virtual machine from a SAN array snapshot.

Which two actions must you perform to present the LUN to the ESXi host to make the data available? (Choose two.)

Force mount the copy of the LUN if you are sure the original is not in use.

Resignature the copy of the LUN if the original is still in use.

Restore the LUN to the ESXi host.

Add the copy of the LUN to the ESXi host using the format option.

Show Answer Comment (0)

Question 7

You are adding an NFS volume to an ESXi host.

Which three steps are required? (Choose three.)

Create a vmkernel interface on the ESXi host.

Create a network label to identify the connection.

Choose the NFS folder name in the format volmountsdatastore1.

Choose Network File System as the storage type.

Assign a VSAN to the vmkernel interface.

Show Answer Comment (0)

Question 8

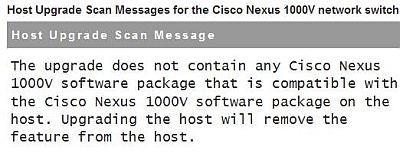

Click the Exhibit button.

After scanning a host for compliance in VMware Update Manager you receive the message shown in the exhibit.

What is the reason for the message?

The VEM VIB in the ESXi 5.x upgrade image is not compatible with the version of the VSM.

A VEM VIB is not available in the ESXi 5.x upgrade image.

The host and the image do not contain VEM VIBs, but the host is still listed in vCenter Server as managed by Cisco Nexus 1000V.

There was a problem with determining compatibility between the VEM VIB in the ESXi 5.x upgrade image and the VSM.

Show Answer Comment (0)

Question 9

A DNS server is not reachable from the vCenter server. Which file would you need to modify to communicate properly with the vCenter infrastructure?

networks

lmhosts.sam

services

hosts

Show Answer Comment (0)

Question 10

During the deployment of a Vblock System, it was discovered that the Cisco Nexus 1000V VSM virtual machines were residing upon the same vSphere host in the AMP.

To comply with VCE best practices for separating the Cisco Nexus 1000V VSM virtual machines, what is missing?

VMware HA virtual machine startup policy

VMware DRS Rules

VMware DRS Admission Control

VMware DRS Automation Level

Show Answer Comment (0)

Total 83 questions

1 2 3 4 5

Go to page: of 9
