The IPv4 address (192.168.10.5) and the gateway address (192.168.1.1) are on different subnets. With a netmask of 255.255.255.0, the network part of the IPv4 address is 192.168.10.x, while the network part of the gateway address is 192.168.1.x. For the workstation to correctly route traffic to the gateway, both must be on the same subnet. The correct gateway address should be within the same subnet as the IPv4 address, such as 192.168.10.1.

After replacing a hot-swappable hard drive in a RAID 5 array, the array must rebuild the data onto the new drive. This process involves reading data from the remaining drives and writing it to the new drive to restore full redundancy. The performance decrease is due to the intensive read and write operations necessary to rebuild the RAID array, which can take several hours depending on the size of the drives and the amount of data.

For network printing, the required ports are typically those used by printing protocols. Port 515 is used by the Line Printer Daemon (LPD) protocol, and port 631 is used by the Internet Printing Protocol (IPP). These ports need to be opened in the firewall to allow print jobs to be sent to and from network printers.

The IP address 192.168.1.56 is within the private IP address range (192.168.0.0 to 192.168.255.255) and is appropriate for use in an internal network utilizing NAT (Network Address Translation). The other IP addresses provided (172.15.65.10, 175.16.20.3, and 193.167.35.4) are either public IP addresses or not in the private IP range suitable for an internal network using NAT.

The mechanical engineer's PC shutting off during resource-intensive tasks like rendering could be caused by overheating or hardware issues. The two most logical steps to diagnose the problem are:

B . Check if the computer is overheating: Rendering is a CPU- and GPU-intensive task that generates heat. Overheating could cause the system to shut down as a protective measure. Checking the system's temperature can help identify if this is the cause.

A . Listen for POST beeps when turning on the PC: POST (Power-On Self-Test) beeps can indicate hardware issues, such as with the motherboard, CPU, or GPU. Listening for beeps can help identify potential problems with these components.

Why the other options are incorrect:

C . Run chkdsk: This tool is used for checking disk integrity, but the symptoms don't suggest a hard drive issue.

D . Reinstall the operating system: Reinstalling the OS is a time-consuming step and not typically necessary for hardware-related shutdowns.

E . Check if the graphics card is compatible with the motherboard: If the PC has been working for three years, the GPU is already compatible with the motherboard.

F . Replace the HDD: There's no indication that the hard drive is causing the issue, as the problem occurs during rendering, which is more GPU/CPU-intensive.

This topic falls under the Hardware Troubleshooting domain in the CompTIA A+ Core 1 exam.

Since the on-premises email server has been decommissioned and users are experiencing issues with scan-to-email functionality, the best solution would be to configure an email relay. An email relay server can accept emails from devices like printers and forward them to the correct destination (such as a cloud-based email service). This avoids the need to bring back the old server or set up a new one.

A . Configure an email relay on an existing server: This allows the scanner to send emails through another server, ensuring the functionality is restored.

Why the other options are incorrect:

B . Configure a secure, cloud-based email relay: While a cloud-based solution could work, configuring an email relay on an existing server is a more immediate and likely solution.

C . Bring the old email server back into production: This is unnecessary and would defeat the purpose of decommissioning it.

D . Configure a new email server from scratch: Setting up a new email server would be time-consuming and not necessary in this situation.

This is part of the Networking and Troubleshooting domain in the CompTIA A+ Core 1 exam.

To prevent unauthorized access to printed sensitive data on a shared printer in a high-traffic area, the best solution is to require user authentication via a PIN. This ensures that print jobs are only released when the authorized user is present at the printer, protecting sensitive information from being exposed.

A . Set up a PIN for user authentication at the printer: This allows users to securely release their print jobs only when they are physically at the printer, preventing unauthorized access.

Why the other options are incorrect:

B . Relocate the printer to an unused office space: While this may reduce traffic, it doesn't ensure that sensitive data is protected from unauthorized access.

C . Configure printing of sensitive data through a specific tray: This wouldn't solve the issue of unauthorized users accessing sensitive prints.

D . Schedule print jobs to be released at certain times: This doesn't address the security concern of preventing unauthorized access to sensitive documents.

This falls under the Hardware and Security domain of the CompTIA A+ Core 1 exam.

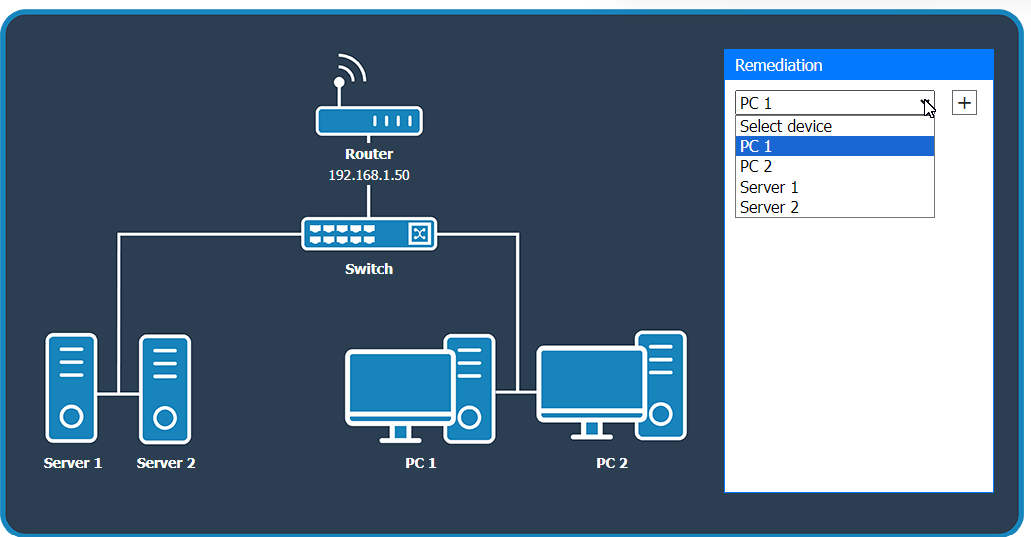

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

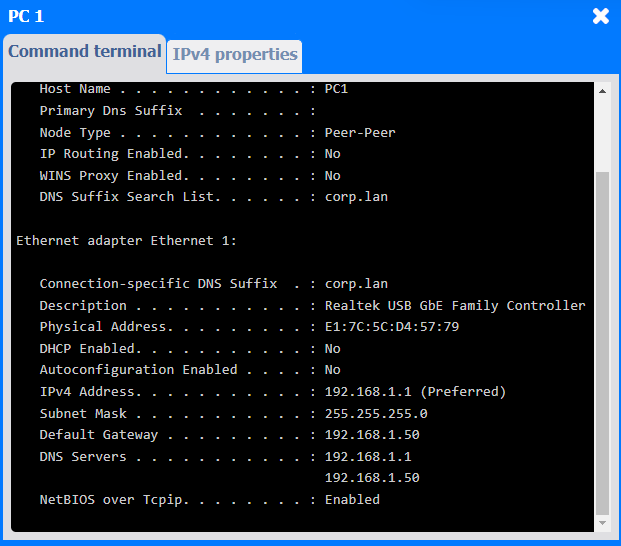

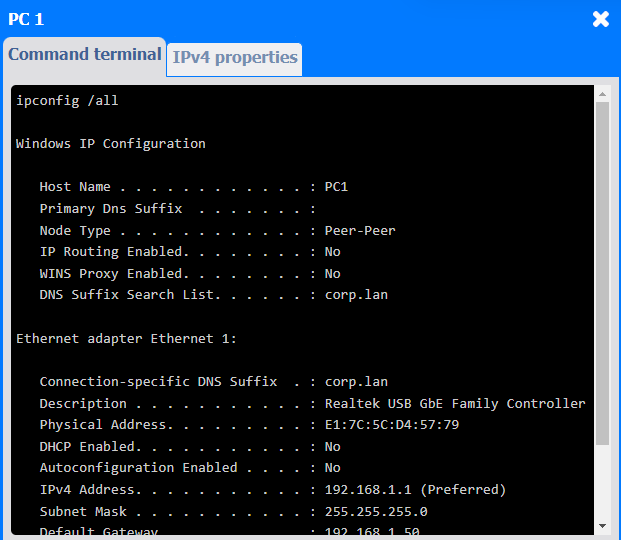

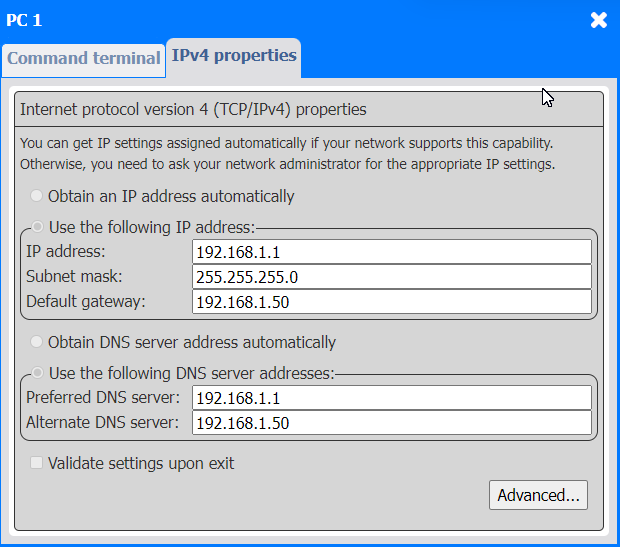

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

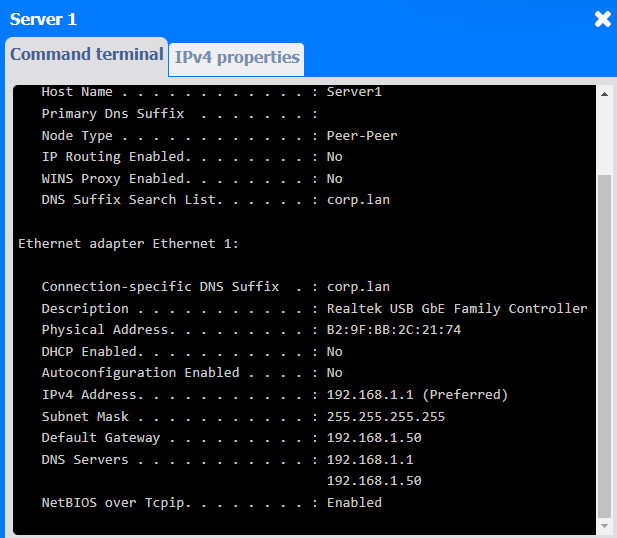

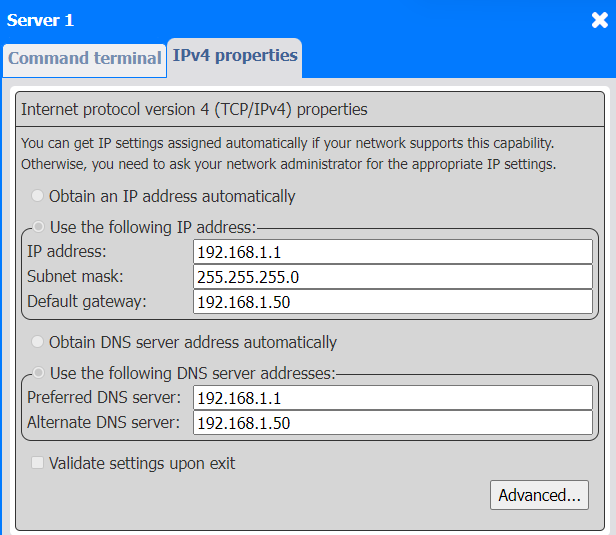

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

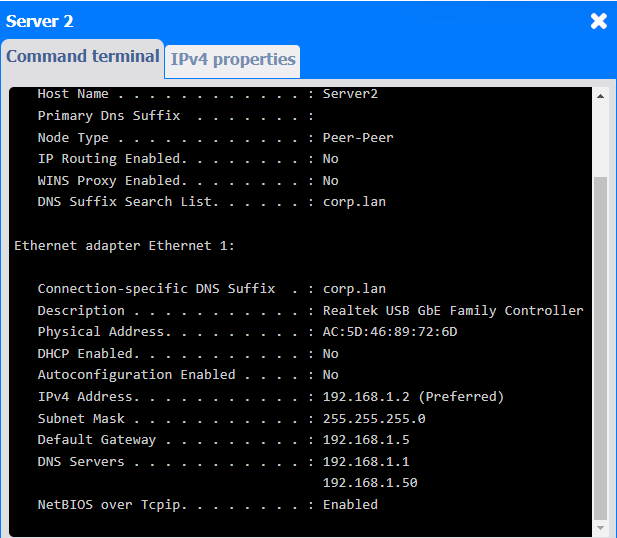

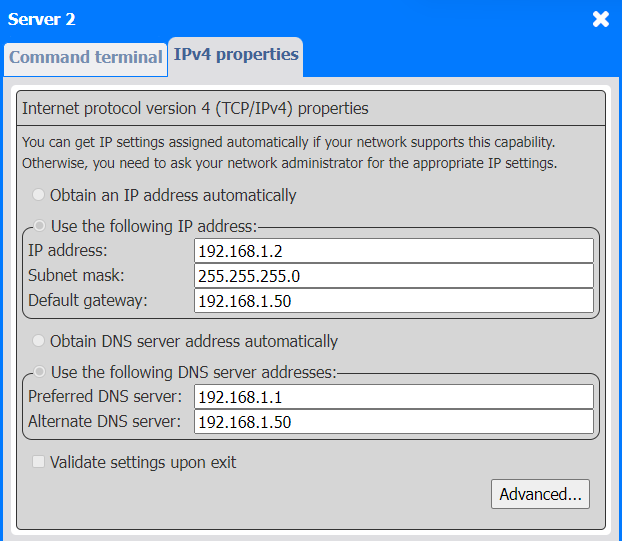

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.
