A newly Installeo router starts establishing an LDP session from another MPLS router to which it is not directly connected. Which LDP message type responds by target router to the Initiating router using UDP protocol?
notification message
session message
extended discovery message
advertisement message
What is considered the primary advantage of running BFD?
reduction in time needed to detect Layer 2 switched neighbor failures
reduction in time needed to detect Layer 3 routing neighbor failures
reduction in CPU needed to detect Layer 2 switch neighbor failures
reduction in CPU needed to detect Layer 3 routing neighbor failures

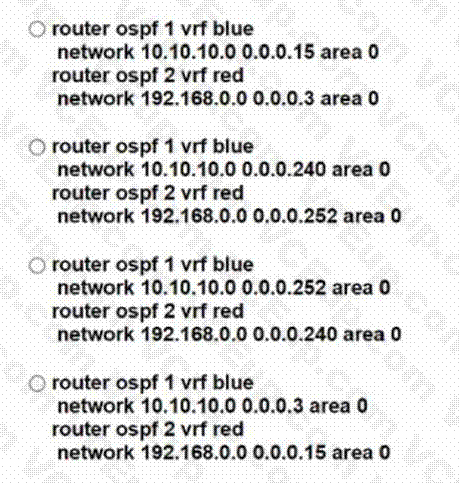

An engineer configured VRF-Lite on a router for VRF blue and VRF red. OSPF must be enabled on each VRF to peer to a directly connected router in each VRF. Which configuration forms OSPF neighbors over the network 10.10.10.0/28 for VRF blue and 192.168.0.0/30 for VRF red?
Option A
Option B
Option C
Option D
The network administrator is tasked to configure R1 to authenticate telnet connections based on Cisco ISE using RADIUS. ISE has been configured with an IP address of 192.168.1.5 and with a network device pointing towards R1
(192.168.1.1) with a shared secret password of Cisco123. If ISE is down, the administrator should be able to connect using the local database with a username and password combination of admin/cisco123.

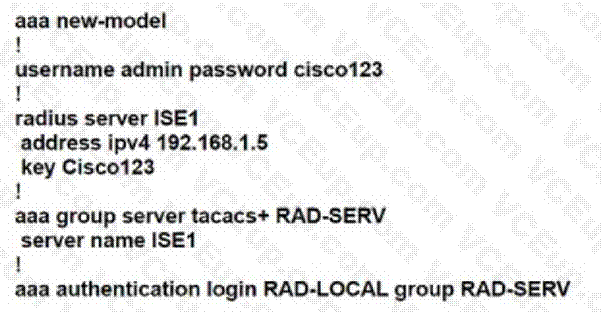

The administrator has configured the following on R1:
ISE has gone down. The Network Administrator is not able to Telnet to R1 when ISE went down.

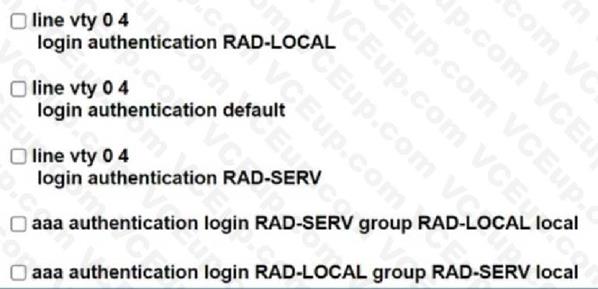

Which two configuration changes will fix the issue? (Choose two.)
Option A
Option B
Option C
Option D
Option E
What are the two reasons for RD and VPNv4 addresses in an MPLS Layer 3 VPN? (Choose two.)
RD is prepended to each prefix to make routes unique.
VPN RT communities are used to identify customer unique routes.
When the PE redistributes customer routes into MP-BGP, they must be unique.
They are on a CE device to use for static configuration.
They are used for a BGP session with the CE device.
Refer to the exhibit.
The network operation team observes a traffic forwarding issue between R2 and R3:
Ping and traceroute of loopback IP address from R2 to R3 is successful. iBGP peering in AS 65101 and AS 65201 is up.
Which configuration resolves the issue?
Configure MD5 password authentication on R2.
Advertise R2 and R3 loopback IPs in AS 65101 and AS 65201.
Remove MD5 password authentication on R3.
Set up eBGP multihop on R2 and R3 routers.
Refer to the exhibit.

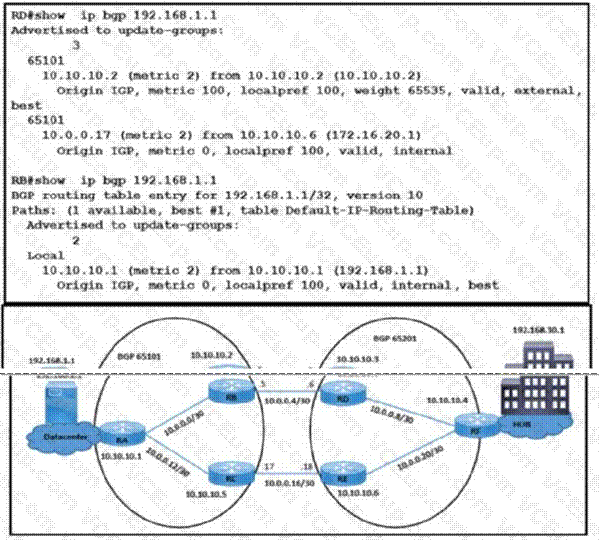

Refer to the exhibit. A customer finds that traffic from the application server (192.168.1.1) to the HUB site passes through a congested path that causes random packet drops. The NOC team influences the BGP path with MED on RB. but
RD still sees that traffic coming from RA is not taking an alternate route. Which configuration resolves the issue?
Refer to the exhibit.

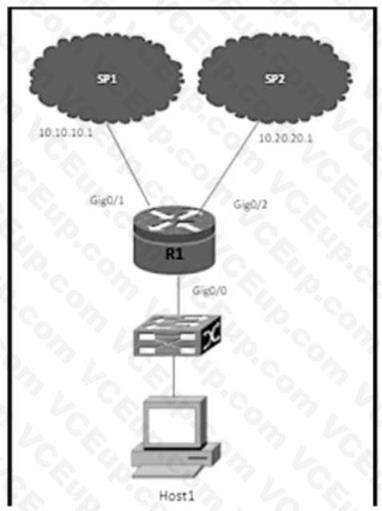

Refer to the exhibit. R1 uses SP1 as the primary path. A network engineer must force all SSH traffic generated from R1 toward SP2. Which configuration accomplishes the task?
Refer to the exhibit.

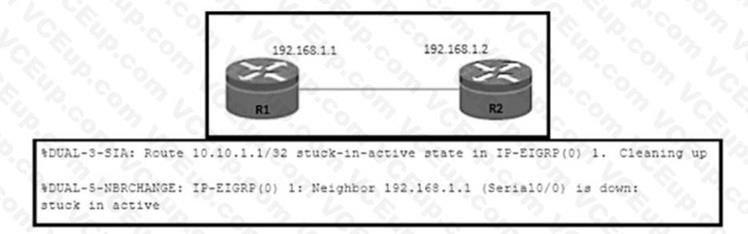

Refer to the exhibit. An engineer notices a connectivity problem between routers R1 and R2. The frequency of this problem is high during peak business hours. Which action resolves the issue?
Increase the MTU on the interfaces that connect R1 and R2.
Increase the available bandwidth between R1 and R2.
Decrease the EIGRP keepallve and hold down timers on R1 and R2.
Set static EIGRP neighborship between R1 and R2.
Refer to the exhibit.

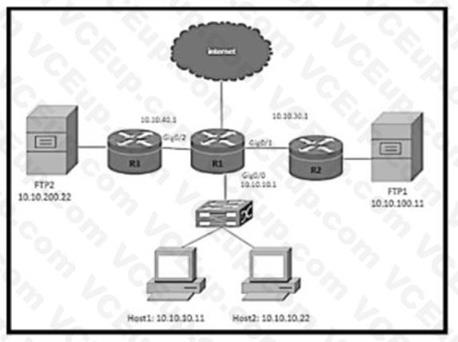

Refer to the exhibit. The R1 routing table has the prefixes for the FTP1 and FTP2 file servers. A network engineer must configure the R1 with these requirements:
Host1 must use the FTP1 fileserver.
Host2 must use the FTP2 fileserver.
Which configuration meets the requirement on R1?
