Which routing protocol is used by the PE router to advertise routes to a CE router without redistribution or static after removing the RD tag from the P router?
IS-IS
OSPF
BGPIPv4
MP-BGP
Refer to the exhibit.

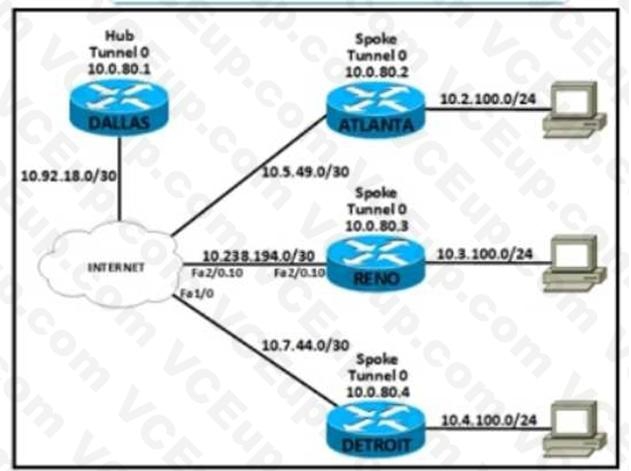

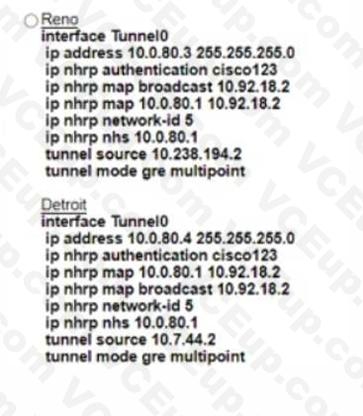

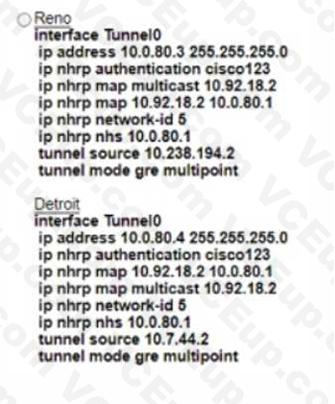

Refer to the exhibit An engineer must connect the Reno and Detroit spokes using DMVPN phase 2 Hub tunnel configuration is
Which configuration accomplishes the task?
Option A
Option B
Option C
Option D
Which control plane process allows the MPLS forwarding state to recover when a secondary RP takes over from a failed primary RP?
MP-BGP uses control plane services for label prefix bindings in the MPLS forwarding table
LSP uses NSF to recover from disruption *i control plane service
FEC uses a control plane service to distribute information between primary and secondary processors
LDP uses SSO to recover from disruption in control plane service
What must a network architect consider for RTs when planning for a single customer full-mesh VPN m an MPLS Layer 3 network?
RT must be globally unique within the same VPN
RT must be globally identical within the same VPN
RT values must be Afferent from the RD values in the same VPN
Each RT value must be identical to an RD value within the same VPN.
Refer to the exhibit.

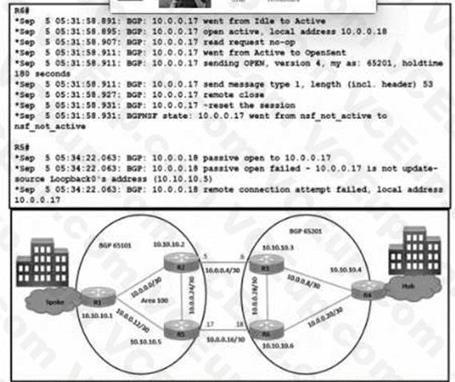

Refer to the exhibit. The traffic from spoke to hub is dropping. The operations team observes:
R2-R3 link is down due to the fiber cut.
R2 and R5 receive traffic from R1 in AS 65101.
R3 and R5 receive traffic from R4 in AS 65201.
Which configuration resolves the issue?
Refer to the exhibit.

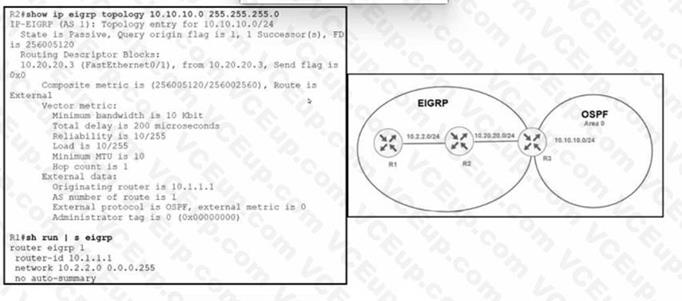

Refer to the exhibit. An engineer configured router R3 to redistribute the prefix 10.10.10.0/24 from OSPF into EIGRP R1 has no connectivity to the prefix. Which action enables receipt of prefixes on R1?
R3 is advertising the 10.20.20 0'24 prefix with a TTL of 1, R3 must set the TTL to 2 for this prefix.
R1 docs not have a neighbor relationship with R2. The EIGRP process should be cleared on R1.
Duplicate router IDs on R1 and R3, R1 should modify its router ID.
R1 is not receiving the next-hop IP address of R3. R2 must enable the network 10 20.20.0V24 within EIGRP.
Refer to the exhibit.

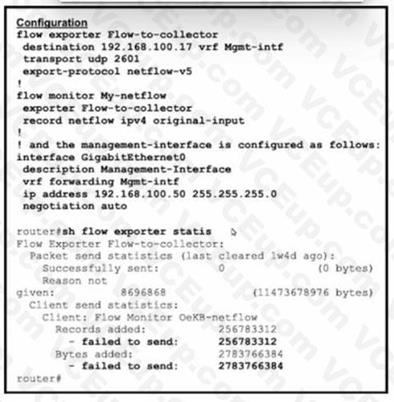

Refer to the exhibit. A network administrator configured NetFlow data, but the data is not visible at the NetFlow collector. Which configuration allows the router to send the records?
Configure the management interface in the global routing table to send the records.
Configure a different interface to send the records.
Configure the NetFlow collector to listen at export-protocol netflow-v5.
Rectify NetFlow collector reachability from the management interface.
A network administrator opens a telnet connection to the router and gets the message:
R1#telnet 10.1.1.2
Trying 10 1.1 2 Open
(Connection to 10.1.1.2 closed by foreign host)
Router R2 is configured with enable secret and password commands. Which action resolves the issue?
Configure the logging synchronous command on line vty.
Configure the exec command on line vty.
Configure the login local command on line vty
Configure the enable password command on line vty.
Refer to the exhibit.

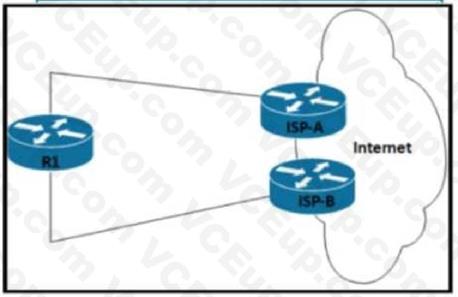

Refer to the exhibit. Router R1 peers with two ISPs using static routes to get to the internet. The requirement is that R1 must prefer ISP-A under normal circumstances and failover to ISP-B if the connectivity to ISP-A is lost. The engineer observes that R1 is load balancing traffic across the two ISPs Which action resolves the issue by sending traffic to ISP-A only with failover to ISP-B?
Configure OSPF between R1. ISP-A. and ISP-B for dynamic failover if any ISP link to R1 fails
Configure two static routes on R1. one pointing to ISP-A and another pointing to ISP- B with 222 admin distance
Change the bandwidth of the interface on R1 so that interface to ISP-A has a higher value than the interface to ISP-B
Configure two static routes on R1. one pointing to ISP-B with more specific routes and another pointing to ISP-A with summary routes
Refer to the exhibit.

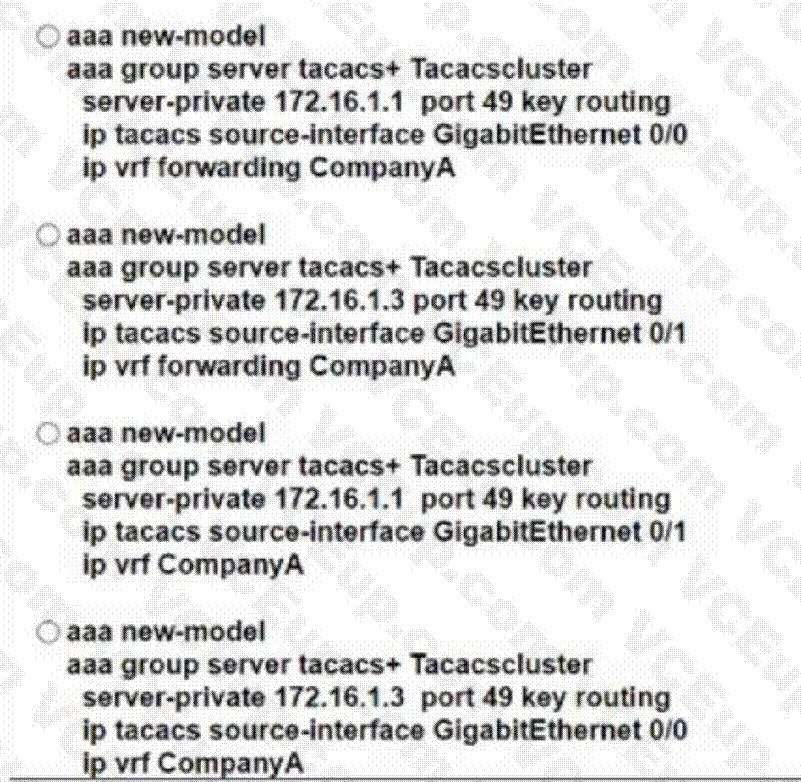

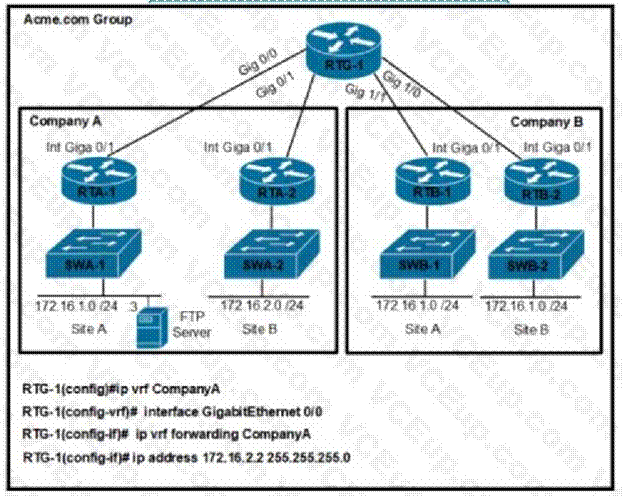

Refer to the exhibit. An engineer must configure a per VRF for TACACS+ for company A. Which configuration on RTG-1 accomplishes the task?
Option A
Option B
Option C
Option D
