Cisco 300-425 Practice Test - Questions Answers
List of questions
Question 1
A network engineer is working on a design for a wireless network that must support data, voice, and location services. To support these services, which access point placement must the engineer use?
corner only
perimeter and corner
perimeter only
indoor and outdoor
Question 2

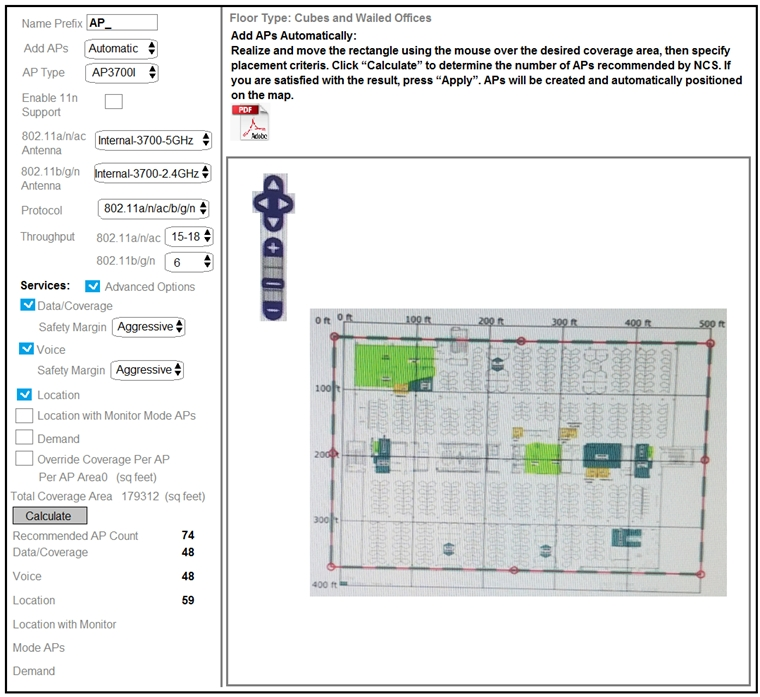

Refer to the exhibit.
Which two statements about Cisco Prime Infrastructure are true? (Choose two.)
It presents the recommended number of APs for the selected coverage area based on the selections made.
Planning mode requires a special license in Cisco Prime Infrastructure.
It shows the map editor feature in Cisco Prime Infrastructure.
Controllers must be synchronized with Cisco Prime Infrastructure for planning mode to work.
It shows the planning mode feature in Cisco Prime Infrastructure.
Question 3
A customer has noticed that Client Band Select is enabled and no clients are utilizing the 5 GHz band. Which three parameters must be met to ensure that wireless clients use the 5 GHz band? (Choose three.)
Ensure that channel bonding is enabled on the WLAN.
Ensure that the co-channel interference has not exceeded -85 dBm.
Ensure that the UNII-2 extended channels are enabled on the 802.11a radios.
Ensure that the client is receiving RSSI above the minimum band select RSSIthreshold.
Ensure that the client is dual-band capable.
Ensure that the WLAN has 802.11a enabled.
https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Mobility/emob41dg/emob41dg-wrapper/ch3_WLAN.pdf
Question 4
How are mobility groups created, excluding mobility anchors?
The WLGs do not have to be of the same model or type to be a member of a mobility group, however each member should be running different software versions.
A mobility group does not require ell WLCs in the group lo use the same virtual IP address.
Each WLC must use the same mobility domain name and be defined as a peer in each other' s static mobility members list.
If WLCs with HA SSO are deployed, each WLC in the WLC HA pair is considered separately as a mobility peer.
Question 5
How should the concept of mobility domains and mobility groups be explained to a customer?
WLCs do not need to be in the same mobility domain to communicate with each other Mobility groups constrain the distribution of security context of a client and also constrain AP fail-over between controllers.
A mobility group does not constrain the distribution of security context of a client and also does not constrain AP fail-over between controllers when the WLCs are in the same mobility domain.
if WLCs are in same mobility domain, they communicate with each other. Mobility groups constrain the distribution of security context of a client and also constrain AP fail-over between controllers.
If WLCs are in the same mobility domain, they communicate with each other but. if an anchor WLC present, it must: be in the same mobility domain for communication to be possible.
Question 6
A medium-sized hospitality company with 50 hotels needs to upgrade the existing WLAN in each hotel to 802.11n. During the site surveys for each hotel, what needs to be taken into consideration when determining the locations for each AP?
Selecting locations that are easily accessed so maintenance and upgrades can be performed quickly.
Selecting AP locations where power is already available.
Selecting APs that can be hidden in ceiling panels to provide a secure and clean aesthetic look.
Selecting locations that make visual assessment of the AP operation easy.
Question 7
An engineer is using a Cisco AIR-2702i AP to conduct a Layer 1 site Survey, which mode is selected for the AP to discover non-Wi-Fi interference with metageek chanalyzer?
FlexConnect
Sniffer
Monitor
SE-connect
Question 8
A network engineer needs to create a wireless design to bridge wired IP surveillance cameras in the parking lot through a mesh AP. To which operate mode of the AP should the cameras connect?
Flexconnect
MAP
RAP
Local
Question 9
A wireless engineer is performing a post verification of a wireless network. Which two metrics does the engineer verify to ensure that the wireless network can support voice services? (Choose two.)
The coverage area must have a noise floor that does not exceed -87 dBm.
The client device must have at least an -67 dBm RSSI.
The rate of retransmitted packets must be 15 percent or below.
The rate of retransmitted packets must be 20 percent or below.
The client device must have at least an -65 dBm RSSI.
Question 10
Which three pieces of equipment are needed to conduct a fully measured wireless survey? (Choose three.)
PoE battery
spirit level
access point
tall tripod
goggles
ladder
https://www.cisco.com/c/en/us/td/docs/wireless/technology/mesh/81/design/guide/b_mesh_81/Site_Preparation_and_Planning.html
