Question 41

Report
Export
Collapse

In the context of VMM, which protocol between ACI leaf and compute hosts ensures that the policies are pushed to the leaf switches for immediate and on demand resolution immediacy?

A.

VXLAN

A.

VXLAN

Answers
B.

LLDP

B.

LLDP

Answers
C.

ISIS

C.

ISIS

Answers
D.

STP

D.

STP

Answers
Suggested answer: B

Explanation:

Immediate—Specifies that EPG policies (including contracts and filters) are downloaded to the associated leaf switch software upon ESXi host attachment to a DVS. LLDP or OpFlex permissions are used to resolve the VM controller to leaf node attachments.

The policy will be downloaded to leaf when you add host to the VMM switch. CDP/LLDP neighborship from host to leaf is required.

On Demand—Specifies that a policy (for example, VLAN, VXLAN bindings, contracts, or filters) is pushed to the leaf node only when an ESXi host is attached to a DVS and a VM is placed in the port group (EPG).

The policy will be downloaded to leaf when host is added to VMM switch and virtual machine needs to be placed into port group (EPG). CDP/LLDP neighborship from host to leaf is required.

With both immediate and on demand, if host and leaf lose LLDP/CDP neighborship the policies are removed.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/acifundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01011.html

Question 42

Report
Export
Collapse

Which tenant is used when configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes?

A.

default

A.

default

Answers
B.

infra

B.

infra

Answers
C.

common

C.

common

Answers
D.

mgmt

D.

mgmt

Answers
Suggested answer: D

Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Configuring_Static_Management_Access.html#concept_CFF63FEBE947424291B0F10E6F23DA7D

Question 43

Report
Export
Collapse

What represents the unique identifier of an ACI object?

A.

universal resource identifier (URI)

A.

universal resource identifier (URI)

Answers
B.

application programming interface

B.

application programming interface

Answers
C.

management information tree

C.

management information tree

Answers
D.

distinguished name

D.

distinguished name

Answers
Suggested answer: D

Explanation:

Reference: https://www.slideshare.net/CiscoDevNet/introduction-to-aci-apis

Question 44

Report
Export
Collapse

Which new construct must a user create when configuring in-band management?

A.

VLAN pool

A.

VLAN pool

Answers
B.

management contract

B.

management contract

Answers
C.

management tenant

C.

management tenant

Answers
D.

bridge domain

D.

bridge domain

Answers
Suggested answer: C

Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Configuring_Static_Management_Access.html

Question 45

Report
Export
Collapse

What must be configured to allow SNMP traffic on the APIC controller?

A.

out-of-band management interface

A.

out-of-band management interface

Answers
B.

contract under tenant mgmt

B.

contract under tenant mgmt

Answers
C.

SNMP relay policy

C.

SNMP relay policy

Answers
D.

out-of-band bridge domain

D.

out-of-band bridge domain

Answers
Suggested answer: B

Question 46

Report
Export
Collapse

Which type of port is used for in-band management within ACI fabric?

A.

spine switch port

A.

spine switch port

Answers
B.

APIC console port

B.

APIC console port

Answers
C.

leaf access port

C.

leaf access port

Answers
D.

management port

D.

management port

Answers
Suggested answer: C

Question 47

Report
Export
Collapse

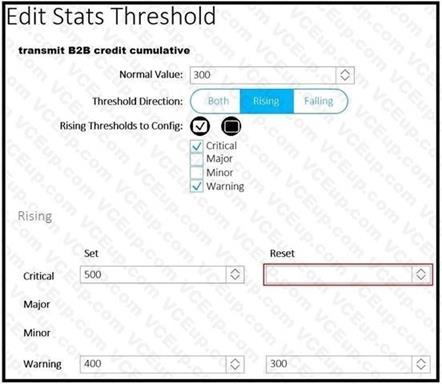

Refer to the exhibit.

A client reports that the ACI domain connectivity to the fiber channel storage is experiencing a B2B credit oversubscription. The environment has a SYSLOG server for state collection messages. Which value should be chosen to clear the critical fault?

A.

300

A.

300

Answers
B.

410

B.

410

Answers
C.

350

C.

350

Answers
D.

510

D.

510

Answers
Suggested answer: B

Question 48

Report
Export
Collapse

Which statement about ACI syslog is true or Which statement describes the ACI syslog?

A.

Notifications for different scopes of syslog objects can be sent only to one destination.

A.

Notifications for different scopes of syslog objects can be sent only to one destination.

Answers
B.

Syslog messages are sent to the destination through the spine.

B.

Syslog messages are sent to the destination through the spine.

Answers
C.

All syslog messages are sent to the destination through APIC.

C.

All syslog messages are sent to the destination through APIC.

Answers
D.

Switches send syslog messages directly to the destinations.

D.

Switches send syslog messages directly to the destinations.

Answers
Suggested answer: D

Explanation:

Reference: https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2016/pdf/BRKACI-2303.pdf

Question 49

Report
Export
Collapse

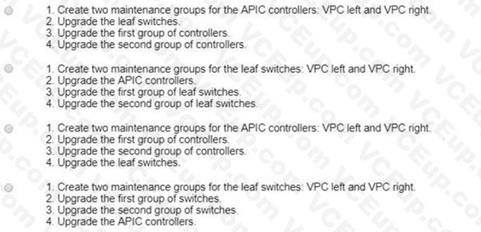

A data center administrator is upgrading an ACI fabric. There are 3 APIC controllers in the fabric and all the servers are dual-homed to pairs of leaf switches configured in VPC mode. How should the fabric be upgraded to minimize possible traffic impact during the upgrade?

A.

Option A

A.

Option A

Answers
B.

Option B

B.

Option B

Answers
C.

Option C

C.

Option C

Answers
D.

Option D

D.

Option D

Answers
Suggested answer: B

Question 50

Report
Export
Collapse

Which protocol does ACI use to securely sane the configuration in a remote location?

A.

SCP

A.

SCP

Answers
B.

HTTPS

B.

HTTPS

Answers
C.

TFTP

C.

TFTP

Answers
D.

FTP

D.

FTP

Answers
Suggested answer: A

Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Using_Import_Export_to_Recover_Config_States.html

Total 192 questions
