Cisco 300-620 Practice Test - Questions Answers, Page 7

Add to Whishlist

List of questions

Question 61

Report Export Collapse

An engineer needs to deploy a leaf access port policy group in ACI Fabric to support the following requirements:

• Control the amount of application data flowing into the system

• Allow the newly connected device to auto-negotiate link speed with the leaf switch Which two ACI policies must be configured to achieve these requirements? (Choose two.)

L2 interface policy

L2 interface policy

link level policy

link level policy

slow drain policy

slow drain policy

ingress control plane policing policy

ingress control plane policing policy

ingress data plane policing policy

ingress data plane policing policy

Suggested answer: B, E
Explanation:

Cisco 300-620 image Question 61 explanation 113408 10072024010039000000

Slow Drain handles FCoE packets that are causing traffic congestion on ACI fabric. So, it is wrong.

Ingress control plane is wrong, because the request is for “application data flowing”.

L2 interface policy is concerned about QinQ and VLAN scope.

asked 07/10/2024
john wick
41 questions

Question 62

Report Export Collapse

Which method does the Cisco ACI fabric use to load-balance multidestination traffic?

PIM routing

PIM routing

spanning trees

spanning trees

shortest-path trees

shortest-path trees

forwarding tag trees

forwarding tag trees

Suggested answer: D
Explanation:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/acifundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

Cisco 300-620 image Question 62 explanation 113409 10072024010039000000

asked 07/10/2024
Joyce Ann Devilles
43 questions

Question 63

Report Export Collapse

Refer to the exhibit.

Cisco 300-620 image Question 63 113410 10072024010039000000

Which action should be taken to ensure authentication if the RADIUS servers are unavailable?

Adjust the priority of server 10.1.1.1 to 1.

Adjust the priority of server 10.1.1.1 to 1.

Set the fallback login to local.

Set the fallback login to local.

Assign the user to the default role.

Assign the user to the default role.

Set the default login realm to LDAP

Set the default login realm to LDAP

Suggested answer: B
Explanation:

Changing the server priority is not logical answer.

The command “aaa user default-role no-login” means that remote users who do not have a user role cannot login. This means that assigning the user to default role will not be able to login.

The “aaa authentication login default” and “aaa authentication login fallback” has identical configuration. The fallback uses RADIUS server. We should change is to local.

asked 07/10/2024
Padmavathi Jawaharlal
41 questions

Question 64

Report Export Collapse

Refer to the exhibit.

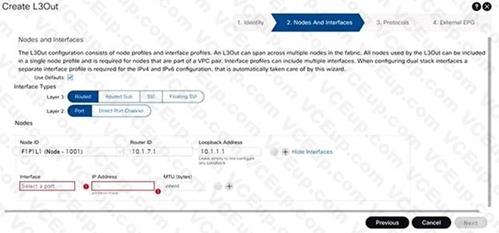

Cisco 300-620 image Question 64 113411 10072024010039000000

An engineer must configure an L3Out peering with the backbone network. The L3Out must forward unicast and multicast traffic over the link. Which two methods should be used to configure L3Out to meet these requirements? (Choose two.)

Layer 3 routed port

Layer 3 routed port

VPC with SVI

VPC with SVI

port channel with SVI

port channel with SVI

Layer 3 routed subinterface

Layer 3 routed subinterface

Layer 3 floating SVI

Layer 3 floating SVI

Suggested answer: A, D
Explanation:

https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/applicationcentricinfrastructure/guide-c07-743150.html#_L3Out_sStatic_rRoutes

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/L3-configuration/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401_chapter_010010.html

Cisco 300-620 image Question 64 explanation 113411 10072024010039000000

asked 07/10/2024
CARL COUCH
47 questions

Question 65

Report Export Collapse

Refer to the exhibit.

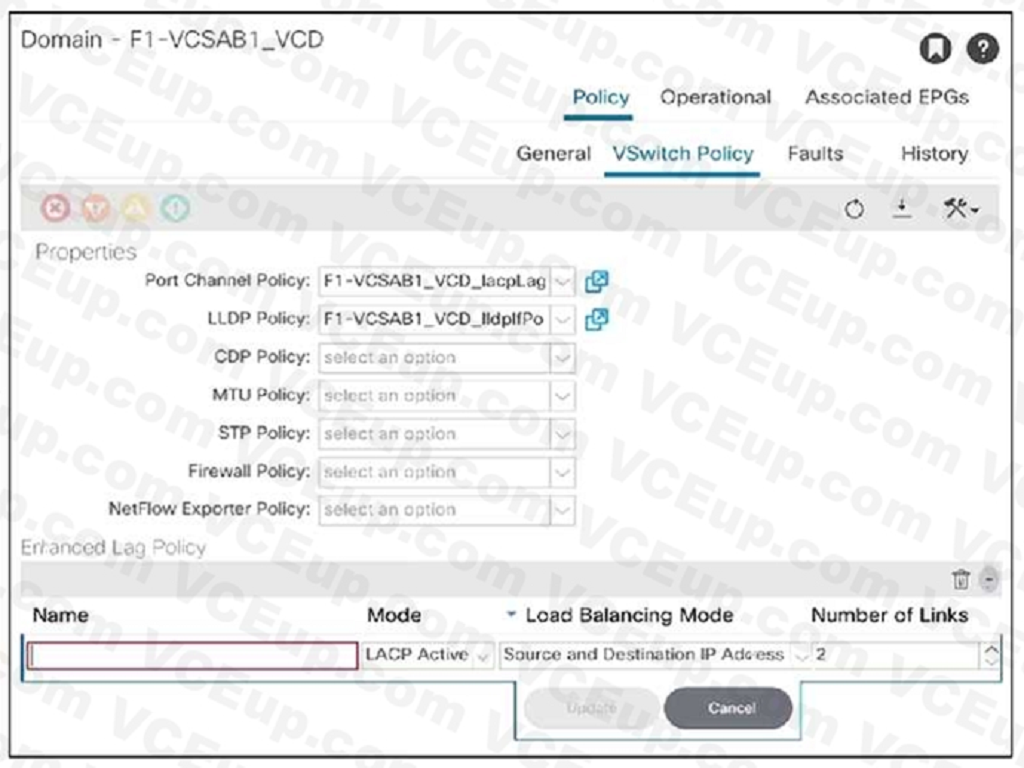

Cisco 300-620 image Question 65 113412 10072024010039000000

An engineer configures the Cisco ACI fabric for VMM integration with ESXi servers that are to be connected to the ACI leaves. The server team requires the network switches to initiate the LACP negotiation as opposed to the servers. The

LAG group consists of two 10 Gigabit Ethernet links. The server learn also wants to evenly distribute traffic across all available links. Which two enhanced LAG policies meet these requirements? (Choose two.)

LACP Mode: LACP Standby

LACP Mode: LACP Standby

LB Mode: Destination IP Address and TCP/UDP Port

LB Mode: Destination IP Address and TCP/UDP Port

LB Mode: Source and Destination MAC Address

LB Mode: Source and Destination MAC Address

LB Mode: Source IP Address and TCP/UDP Port

LB Mode: Source IP Address and TCP/UDP Port

LACP Mode: LACP Active

LACP Mode: LACP Active

Suggested answer: C, E
Explanation:

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/aci_virtual_edge/configuration/2-x/Cisco-ACIVirtual-Edge-Configuration-Guide-202/Cisco-ACI-Virtual-Edge-Configuration-Guide-202_chapter_0100.html

asked 07/10/2024
Vojtech Danek
43 questions

Question 66

Report Export Collapse

An engineer must connect Cisco ACI fabric using Layer 2 with external third-party switches. The thirdparty switches are configured using 802.1s protocol. Which two constructs are required to complete the task?

(Choose two.)

spanning tree policy for mapping MST Instances to VLANs

spanning tree policy for mapping MST Instances to VLANs

MCP policy with PDU per VLAN enabled

MCP policy with PDU per VLAN enabled

MCP instance policy with administrative slate disabled

MCP instance policy with administrative slate disabled

dedicated EPG for native VLAN

dedicated EPG for native VLAN

static binding of native VLAN in all existing EPGs

static binding of native VLAN in all existing EPGs

Suggested answer: A, D
Explanation:

https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2019/pdf/BRKACI-3101.pdf

https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centricinfrastructure/white-paper-c07-732033.html

Cisco 300-620 image Question 66 explanation 113413 10072024010039000000

Cisco 300-620 image Question 66 explanation 113413 10072024010039000000

asked 07/10/2024
Siphiwe Soldat
39 questions

Question 67

Report Export Collapse

An engineer configures a Multi-Pod system with the default getaway residing outside of the ACI fabric for a bridge domain. Which setting should be configured to support this requirement?

disable Limit IP Learning to Subnet

disable Limit IP Learning to Subnet

disable IP Data-plane Learning

disable IP Data-plane Learning

disable Unicast Routing

disable Unicast Routing

disable Advertise Host Routes

disable Advertise Host Routes

Suggested answer: A
asked 07/10/2024
Nick Sheremet
29 questions

Question 68

Report Export Collapse

New ESXi hosts are procured in a data center compute expansion project. An engineer must update the configuration on the Cisco APIC controllers to support the addition of the new servers to the existing VMM domain. Which action should be taken to support this change?

Create a range of internal VLANs in the associated VLAN pool.

Create a range of internal VLANs in the associated VLAN pool.

Set the encapsulation mode as VXLAN.

Set the encapsulation mode as VXLAN.

Enable infrastructure VLAN in the associated AEP.

Enable infrastructure VLAN in the associated AEP.

Map the leaf interface selector to the AEP that is associated with the VMM domain.

Map the leaf interface selector to the AEP that is associated with the VMM domain.

Suggested answer: D
asked 07/10/2024
Spencer Karenbauer
42 questions

Question 69

Report Export Collapse

A customer migrates a legacy environment to Cisco ACI. A Layer 2 trunk is configured to interconnect the two environments. The customer also builds ACI fabric in an application-centric mode. Which feature should be enabled in the bridge domain to reduce instability during the migration?

Set Multi-Destination Flooding to Flood in BD.

Set Multi-Destination Flooding to Flood in BD.

Enable Flood in Encapsulation.

Enable Flood in Encapsulation.

Set Multi-Destination Flooding to Flood in Encapsulation.

Set Multi-Destination Flooding to Flood in Encapsulation.

Disable Endpoint Dataplane Learning

Disable Endpoint Dataplane Learning

Suggested answer: B
asked 07/10/2024
Maximo Ian Canino
44 questions

Question 70

Report Export Collapse

An engineer wants to filter the System Faults page and view only the active faults that are present in the Cisco ACI fabric. Which two lifecycle stages must be selected for filtering? (Choose two.)

Raised

Raised

Retaining

Retaining

Soaking, Clearing

Soaking, Clearing

Raised, Clearing

Raised, Clearing

Soaking

Soaking

Suggested answer: D, E
Explanation:

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/all/faults/guide/b_APIC_Faults_Errors/b_IFC_Faults_Errors_chapter_01.html

asked 07/10/2024
Harri Jaakkonen
50 questions
Total 247 questions
Go to page: of 25
