Refer to the exhibit A collaboration engineer is troubleshooting a Cisco Jabber for Windows client issue The end user reports that they cannot control their Cisco 8845 IP Phone from the Cisco Jabber client Which configuration addition to the end user profile resolves the issue?
""Standard CTI allows control of phones supporting rollover mode" and the "Standard CTI Enabled" group.
"Standard CTI allows control of phones supporting connected Xfer and conf and the "Standard CTI Enabled" group.
"Standard CTI allows control of all devices" and the "Standard CTI Enabled" group.
"Standard CTI secure connection" and the "Standard CTI Enabled" group
An engineer must create a Cisco Jabber installation switch The engineer created the installation file and named it CiscoJabberSetup.msi Which CLI command installs Jabber silently on a Windows machine and deletes any existing bootstrap?
Option A
Option B
Option C
Option D
An administrator is configuring Cisco Unity Express and is using the default Auto-Attendant script, aa aef Which script parameter prevents the script from transferring callers to external numbers?
aIlowExternal Transfers
disallowExternalTransfers
disableExternalTransfers
disableToli Fraud
DRAG DROP
An engineer must enable group chat and persistent chat with Cisco UCM and the Cisco IM and Presence service cluster The engineer has already configured the group chat system administrators Drag and drop the remaining configuration steps from the left into the correct order on the right to complete the configuration.

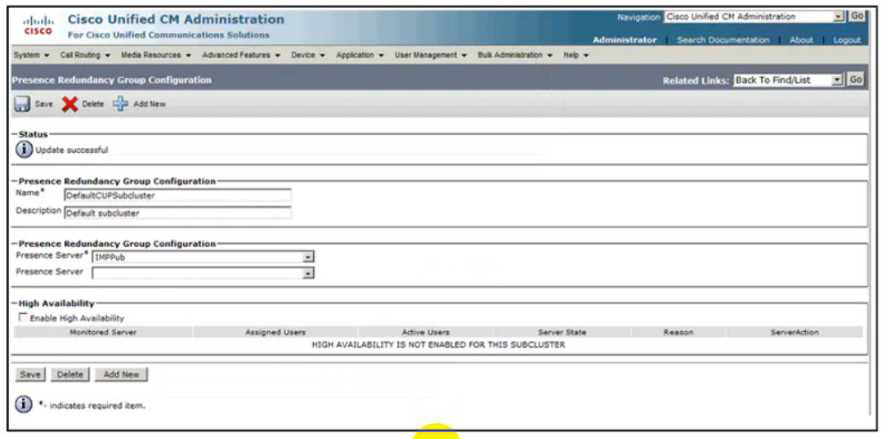

Refer to the exhibit. An engineer must configure Cisco IM and Presence server high availability so that the publisher node fails over to the subscriber node if the publisher node becomes unavailable On the Presence Redundancy Group Configuration page the engineer receives this message ‘High availability is not enabled for this cluster " Which two actions must the engineer perform to resolve the issue? (Choose two.)
Add IMPSub as a secondary presence server in the redundancy group
Click Save and restart the Cisco Presence Engine.
Replace iMPPub with IMPSub m the redundancy group.
Add a new presence redundancy group and click Save
Select Enable High Availability and dick Save.
Refer to the exhibit An engineer is troubleshooting a Cisco Jabber issue in Cisco UCM and validates that these configurations are correctly configured
Cisco UCM Service discovery Cisco UCM User authentication •SOAP login
Which protocol interactions between Cisco UCM and the Cisco IM and Presence servers must be validated next?
LDAP
XMPP
SCCP
SAML
DRAG DROP
An engineer must configure Microsoft Office 365 calendar integration with Cisco IM and Presence The engineer has already configured the presence gateway Drag and drop the remaining configuration steps from the left into the correct order on the right to complete the configuration
What are two characteristics of Smart Card Authentication for Cisco UC Applications? (Choose two.)
requires a PIN password or passphrase
requires a card reader
is supported on all devices and operating systems
uses single-factor authentication
is less secure than form-based authentication
A collaboration engineer is troubleshooting a Cisco Jabber IM and Presence issue Cisco TAC asked the engineer to generate a client-side problem report Which set of actions must the engineer perform to find and download the problem report logs?
Click the Help menu select Report a problem and follow the instructors
Click Settings Help and follow the instructions
Click Settings Help Reports and follow the instructions
Click Admin select Logs and follow the instructions

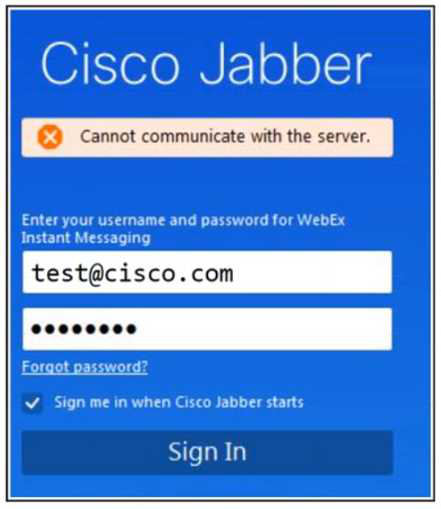

A collaboration engineer is troubleshooting an issue with Cisco Jabber for Windows clients Users in a new branch location report that 'cannot locate server is displayed when they launch the client When the engineer manually configures the server settings on a client, the dient logs in successfully. The
Cisco IM and Presence servers are located across the WAN at the corporate HQ Which action resolves the issue?
Reinstall the Jabber clients with UPN_DISCOVERY_ENABLED=false
Add a firewall rule to allow TCP/8443 from the branch to HQ
Add a _collab-edge _Us.company com SRV record to the branch DNS server
Add a _cisco-uds_tcp company com SRV record to the branch DNS server
