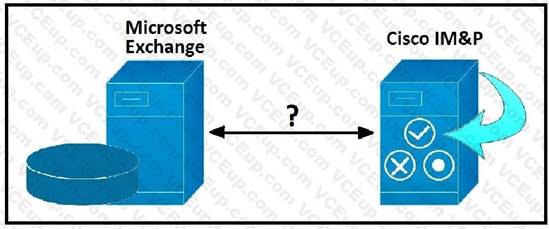

Refer to the exhibit.
Which protocol is used for communication between Cisco IM and Presence and Microsoft Exchange Server?
POP3
IMAP
EWS
XMPP
Which dial-peer configuration routes calls from SIP-based phones on Cisco Unified Communications Manager Express to Cisco Unity Express?
dial-peer voice 7000 voip
destination-pattern 7000
session protocol sipv2
session target ipv4: 10.3.6.127
codec g711alaw
dial-peer voice 7000 voip
destination-pattern 7000
session protocol sipv2
session target ipv4: 10.3.6.127
codec ilbc
dial-peer voice 7000 voip
destination-pattern 7000
session protocol sipv2
session target ipv4: 10.3.6.127
codec g711ulaw
dial-peer voice 7000 voip
destination-pattern 7000
session protocol sipv2
session target ipv4: 10.3.6.127
codec g729r6
What are two Cisco Jabber 12.6 on-premises deployment types that can be run on a Windowsenabled PC? (Choose two.)
Contact Center Agent
IM-only
multicloud-based
Full UC
cloud-based
An engineer is checking the Cisco Unified Communications Manager and Cisco Unity Connection integration and presses the Message button on a phone to check the voicemail. Which action does Cisco Unified CM take?
Cisco Unified CM looks up the voicemail pilot configured to dial.
Cisco Unified CM routes the configured hunt pilot to Unity Connection.
Cisco Unified CM looks up the hunt pilot configured to dial.
Cisco Unified CM sends an AXL query to Unity Connection.
An end user opened a ticket, stating that though he can log in to Jabber for Windows, and presence and chat works, he cannot place phone calls using the desktop client. You investigate the user and find that no phone device is associated with the user account in Cisco Unified Communications Manager. Which device type must you create for this user to enable calling services from the Jabber for Windows desktop client?
Cisco Unified Personal Communicator
Cisco Jabber for Tablet
Cisco Unified Client Services Framework
third-party SIP device (advanced)
Which step is the first for web-based single sign-on login?
Authenticate.
Redirect to IdP to get authenticated.
Present authentication assertion.
Request access to protected service.
How is automatic fallback enabled on a Cisco IM and Presence server?
In IM and Presence Service Parameter Configuration > Cisco Server Recovery Manager, change the Failover parameter to True.
In Communications Manager Service Parameter Configuration > Cisco Server Recovery Manager, change the Enable Automatic Fallback parameter to True.
Automatic fallback is enabled by default.
In the Presence Redundancy Group Configuration > Cisco Unified Communications Manager, check the Enable Automatic Fallback parameter.
Refer to the exhibit.
A customer reports that after a network failure, all of the Cisco Jabber clients are not switched back to their home nodes. An engineer determines that the primary Cisco IM&P server is in Failed Over state. Which two actions should be performed to bring the system back to operational state and to prevent future occurrences? (Choose two.)
Advise all users to re-login to their Jabber clients.
Confirm that both IM&P servers are configured in the Presence Redundancy Group configuration pane.
Perform a restart of the IM&P primary server to force fallback.
Click the Fallback button in the Server Action pane.
Set the Automatic Failover parameter in the Server Recovery Manager Service Parameters to the value True.
An administrator is configuring Cisco Jabber 12.8 to work with Cisco UCM and Cisco IM and Presence 12.5 using an encrypted SIP profile. Which record should be configured for Jabber to work when logging into the corporate network with the domain "domain.com?
DNS SRV query _sip._tcp.domain.com
DNS SRV query _cisco-uds._tls.domain.com
DNS SRV query _cisco-uds._tcp.domain.com
DNS SRV query _sip._tls.domain.com
Refer to the exhibit.
When troubleshooting an internal Jabber login problem, there is a pop-up about a certificate error, and then the login fails The FQDN of Cisco UCM is cucm.ex.com. and the FODN of the IM and Presence Server is imp.ex.com. Which two actions should be taken to fix this issue? (Choose two.)
Sign the Cisco Untried IM and Presence server certificate with trusted a trusted
Import the certificate of cucm.ex.com into the Trusted Certificate Authorities on the PC running Jabber.
Import the Cisco UCM CallManager certificate into the Trusted Certificate Authorities on the PC running Jabber
Sign the Cisco UCM CallManager certificate with a trusted certificate authority.
Sign the Cisco UCM tomcat certificate with a trusted certificate authority.
