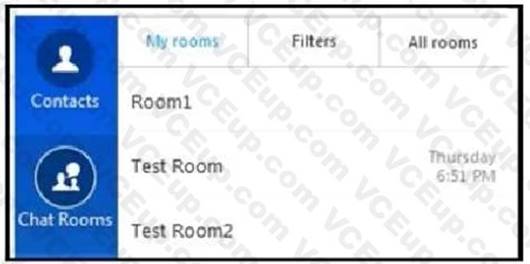

Refer to the exhibit.
Persistent Chat is configured in the Cisco IM and Presence server using PostgreSQL as the back-end database. Users report that the Chat Rooms icon is missing from their Cisco Jabber clients. Which action should the administrator take to resolve this issue?
Start the Cisco XCP Message Archiver.
Start the Cisco XCP Text Conference Manager.
Restart the Cisco XCP Directory Service
Restart the Cisco XCP XMPP Federation Connection Manager.
Which SAML component defines the content of data transferred from an IdP to a service provider?
protocol
assertion
binding
profiles
Refer to the exhibit.
An administrator is troubleshooting an issue with XMPP Federation between two. eight-node IM and Presence clusters. After looking at the logs, the administrator finds this message and must publish one or more DNS SRV records containing one or more addresses of the IM and Presence node(s).
How many nodes must be selected to publish?
1
5
10
20
The persistent chat feature is configured in a Cisco Jabber deployment that is running Cisco Unified IM and Presence 11.5 SU6 Desktop clients are working but mobile clients are not displaying persistent chats. Which configuration Is necessary to enable the Jabber persistent chat feature on mobile devices?
while logged into IM and Presence server Administration, go to 'Messaging', then Settings", and check the checkbox for the 'Enable persistent chat for mobile" field
add the <Persistent_Chat_Mobile_Enabled>false</Persistent_Chat_Mobile_Enabled> line to the Jabber configuration file that is used by all Jabber devices
add the <Persistent_Chat_Enable>true</Persistent_Chat_Enabled> line to the Jabber configuration rule that is used by mobile devices
add "Enable_Persistent_Chat'' in the "Cisco Support Field' on the Jabber for mobile device configuration page on Cisco UCM
An administrator is configuring digital networking between Cisco Unity Connection clusters. What are two requirements for the configuration? {Choose two.) end-user credentials
IP address/FODN of LDAP server
IP address/FQDN of Cisco UCM servers
system administrator credentials
IP address/FODN of the Cisco Unity Connection servers
Which component of SAML SSO defines the transport mechanism that is used to deliver the SAML messages between entities?
profiles
metadata
assertions
bindings
An administrator is configuring call handlers in Cisco Unity Connection. The administrator must ensure that internal extensions are restricted so that callers must go through the company operator to reach employees, and so that callers hear an error message if they attempt to dial extensions directly. Which setting is configured to accomplish this task?
Transfer Rules
Caller Input
Greetings
Message Settings
Which statement describes a role of AXL communications in the BLF Plug-in Service of the Cisco UAC?
The AXL communications allow registered attendants to log in to Cisco UCM and receive calls.
The AXL communications enable Device Resolution Manager to resolve the device statuses of operator and system devices.
The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco UAC versions match.
The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco UCM versions match.
In Digital Network Cisco Unity Connection clusters, each site transmits and receives messages for the recipients based on which protocol?
IMAP
SMTP
SIP
SCCP
Refer to the exhibit.
An organization is moving from on-premise Exchange to Microsoft Office 365 for email and calendaring. The administrator would like to maintain meeting presence functionality in Jabber clients connected to Cisco IM and Presence after this move. Office 365 certificates must be installed to accomplish this. Which two trust stores should these certificates be uploaded to on Cisco IM and Presence? (Choose two.)
cup-xmpp- trust
xmpp-fed-trust
cup-trust
tomcat-trust
xmpp-trust
