Cisco 300-815 Practice Test - Questions Answers
Question list
List of questions
Related questions
An administrator is configuring a cluster for ILS and wants to limit the amount of entities that Cisco Unified Communications Manager can write to the database for data that is learned through ILS. Which service parameter is used to adjust this limit?
ILS Max Number of Learned Objects in Database
ILS Active Learned Object Upper Limit
Global Data Service Parameter Limit
Imported Dial Plan Replication Database Object Lower Limit
When configuring hunt groups, where do you add the individual directory numbers that will be part of the group?
route group
line group
hunt list
hunt pilot

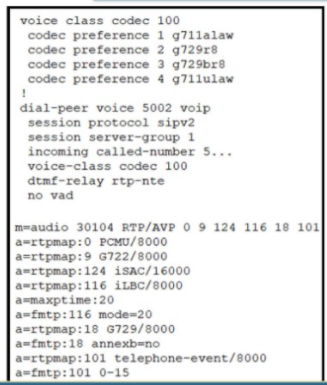

Refer to the exhibit.
The Cisco Unified Border Element receives an INVITE matching inbound dial peer 5002. The outbound dial peer supports only iLBC. and a Local Transcoding Interface is allocated. Based on the configuration and SDP from the INVITE message, which codec is chosen by Cisco Unified Border Element for the inbound call leg?
G.711 A-law
G.711 U-law
G.729r8
G.729br8

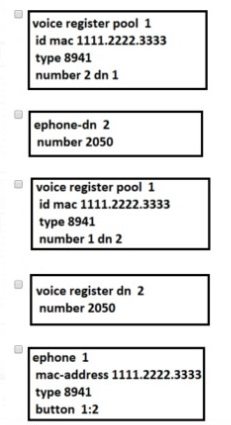

An IP Telephony administrator is deploying IP phones The administrator has an existing Cisco UCME router with several SCCP & SIP phones registered. The administrator receives a request for a new SIP phone with MAC address 1111 2222.3333 and directory number 2050 to be added in the Cisco UCME. Which two configurations should be added in CME to support this request? (Choose two )
Option A
Option B
Option C
Option D
Option E
An administrator is implementing a new dial-plan on Cisco Unified Border Element. The administrator must ensure that incoming dial-peers are matched based on the IP address from where the incoming request originates. Which dial-peer configuration should be applied to accomplish this requirement?
dial-peer voice 1 voip incoming url via
dial-peer voice 1 voip incoming url request
dial-peer voice 1 voip incoming called-number
dial-peer voice 1 voip incoming url to
An engineer must configure call queuing under a Hunt Pilot. After the engineer receives the audio file that will be played to callers during queuing, which two steps should be taken to complete the configuration? (Choose two.)
Assign the uploaded audio file to the hunting Line Group member's 'User Hold MOH Audio Source
Assign the uploaded audio file to the hunting Line Group member's 'Network Hold MOH Audio Source'.
Upload the audio file in 'TFTP File Management'' via OS Administration GUI
Assign the uploaded audio file to 'Network Hold MOH Source & Announcements' under Hunt Pilot's Queuing section.
Upload the audio file in 'MOH Audio File Management' via CM Administration GUI
Which configuration element of a hunt group allows for changing Calling Party Transformations settings?
line group
hunt pilot
route group
hunt list
Which two types of authentication are supported for the configuration of Intercluster Lookup Service? (Choose two.)
TokenID
username and secret key
TLS certificates
passwords
FQDN of the servers defined in DNS

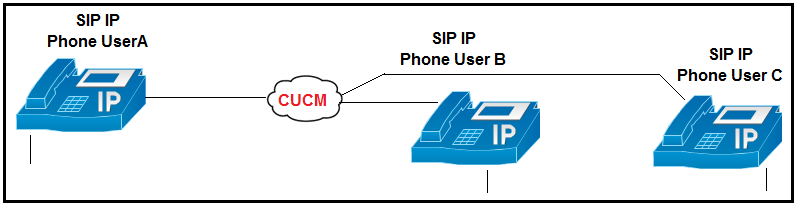

Refer to the exhibit.
In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C. Which two scenarios are correct? (Choose two.)
Phone_A sends a SIP-REFER message to the Cisco Unified Communications Manager with Phone_C information in the Refer-To section.
Phone_B sends a SIP-REFER message to the Cisco Unified CM with Phone_C information in the Refer-To section.
As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_B User Hold MOH Audio Source settings.
As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the music on hold and the MOH audio is chosen from Phone_A Network Hold MOH Audio Source settings.
As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_A User Hold MOH Audio Source settings.

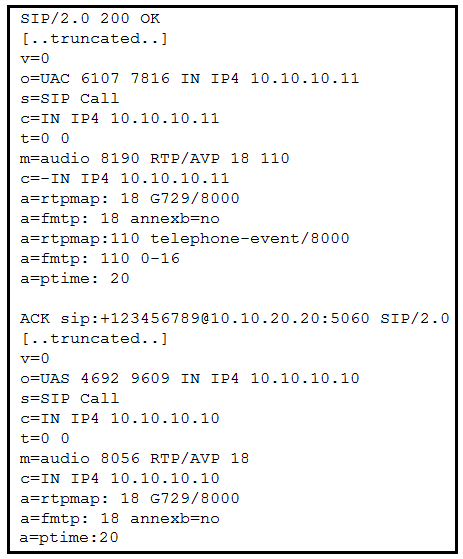

Refer to the exhibit.
Users report that when they dial to Cisco Unity Connection from an external network, they cannot enter any digits. Assuming only in-band DTMF is supported, what is a reason for this malfunction?
The negotiated RTP port is outside of the range described by RFC, so inband DTMFs do not work.
There is SIP Delayed Offer. DTMF is supported only in Early Offer.
The rtpmap:0 value for the negotiated codec is marking DTMF as inactive.
No DTMF is negotiated.
