Signal number reach call phone that not answered are leaving voicemails on the cell phone rather the corporate mailbox. Which two options will resolve this issue? (Choose two.)
Check the Enable Extend and Connect checkbox
Check the Enable Unified Mobility features checkbox
Decrease the T302 timer
Decrease the T301 timer Decrease the Answer Too Late timer
A customer routes PSTN calls to ITSP through a SIP trunk on Cisco UCM that forwards and receives calls to and from ITSP. ITSP is set to send an E.164 number when the customer's extension is four digits. Which action should be taken to route the incoming calls to four-digit extensions?
Configure a voice translation rule to map the E.164 number to four digits and assign it to the incoming dial-peer on Cisco Unified Border Element.
Set the Significant Digits to 4 on the SIP trunk.
Configure a voice translation profile to map the E.164 number to four digits and assign it to the incoming dial-peer on Cisco Unified Border Element.
Set the Significant Digits to 8 on the SIP trunk.

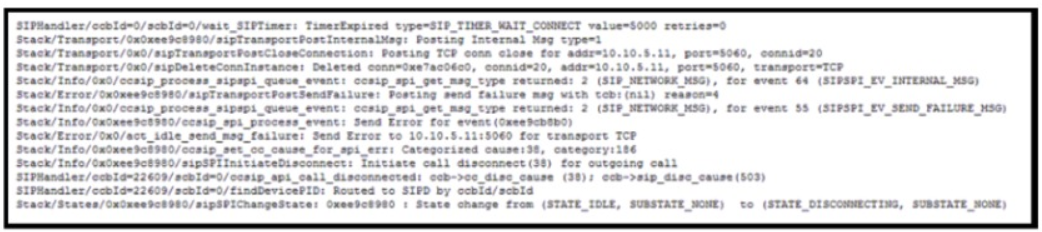

Refer to the exhibit.
An administrator has configured a SIP trunk between two Cisco UCM clusters. For calls that should use the trunk, the calls fail with a fast busy. The administrator checks the Cisco CallManager SDL traces and found that the cluster to which the calling device is registered never sends an INVITE to the destination cluster. The administrator also verifies that all nodes from both clusters are powered on, and the CallManager service is running. How is this issue resolved?
The administrator needs to disable OPTIONS pings on the SIP trunks for both clusters.
The administrator must allow connectivity so that TCP connections do not fail between the nodes.
The administrator needs to enable OPTIONS pings on the SIP trunks for both clusters.
The administrator must associate the route pattern with a calling search space the device can dial.

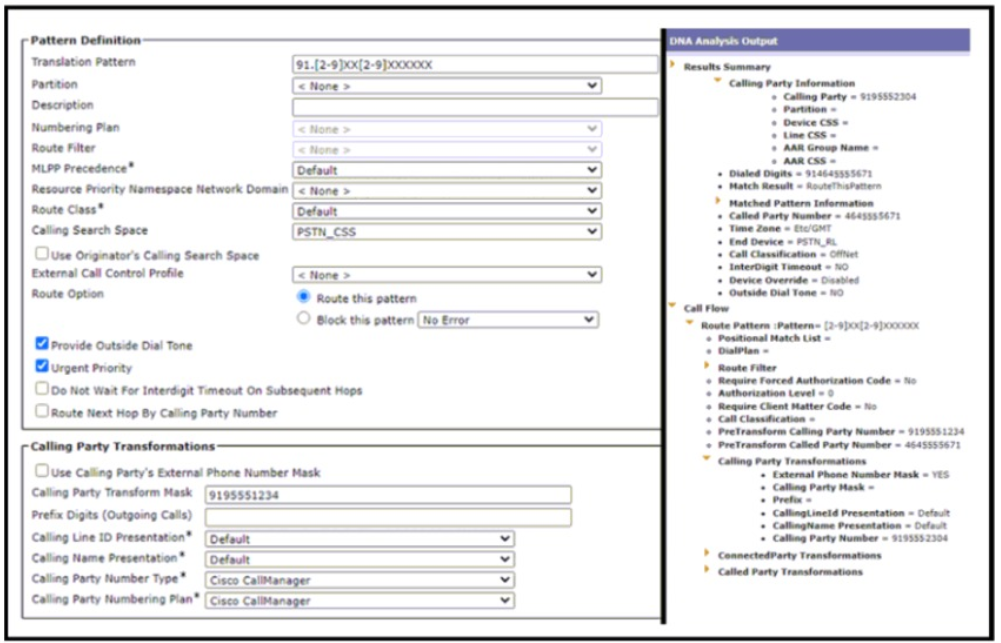

Refer to the exhibit.
For long-distance calls, users must prefix their dialed number with ''91.'' The translation pattern was created to strip the 91 as the PSTN expects a 10- digit number. The PSTN also requires the calling number to be set to 9195551234. However, the service provider has said calls with a different calling number are being received. How is this issue resolved?
Change the partition of the translation pattern from none to pstn_pt.
Enable Force Authorization Code on the route pattern.
Disable Use Calling Party's External Phone Number Mask on the route pattern.
Enable Use Calling Party's External Phone Number Mask on the translation pattern.
When a third-party SIP Phone System is dialed inbound across a Cisco Unified Border Element, DTMF is failing. The third-party vendor accepts only out-of-band DTMF. Which configuration should be added to the outgoing dial peer to resolve this issue?
dtmf-relay h245-signal
dtmf-relay rtp-nte
dtmf-relay cisco-rtp
dtmf-relay sip-kpml
The SIP session refresh timer allows the RTP session to stay active during an active call. The Cisco UCM sends either SIP-INVITE or SIP-UPDATE messages in a regular interval of time throughout the active duration of the call. During a troubleshooting session, the engineer finds that the Cisco UCM is sending SIP-UPDATE as the SIP session refresher, and the engineer would like to use SIP-INVITE as the session refresher. What configuration should be made in the Cisco UCM to achieve this?
Enable SIP ReMXX Options on the SIP profile.
Enable Send send-receive SDP in mid-call INVITE on the SIP profile.
Change Session Refresh Method on the SIP profile to INVITE.
Increase Retry INVITE to 20 seconds on the SIP profile.
A user's phone is already configured for Single Number Reach, and the user wants a feature to move an active call from a mobile phone to a desk phone and vice-versa. As an administrator, which additional configuration should be made to fulfill the user's request?
Confirm that the desk phone is subscribed to Cisco Extension Mobility.
Check to make sure that the Resume softkey option appears on the desk phone.
Use Dialed Number Analyzer to determine if the user extension can dial the mobile phone.
Add the mobility key to the softkey template that the desk phone is using.
Cisco UCM has 100,000 entries in the database learned through the ILS Service. Parameter ILS Max Number of Learned Objects in Database value is set to 100,000. What will happen to learned data when the service parameter value is reduced to 50,000?
Cisco UCM does not write additional ILS learned objects to the database and will delete the first 50,000 entries learned to keep it to the service parameter value.
Cisco UCM does not write additional ILS learned objects to the database and will delete the last 50,000 entries learned to keep it to the service parameter value.
Cisco UCM does not write additional ILS learned objects to the database and keeps the existing database entries.
Cisco UCM will overwrite an entry for newly learned data and keep the parameter value at 100,000.

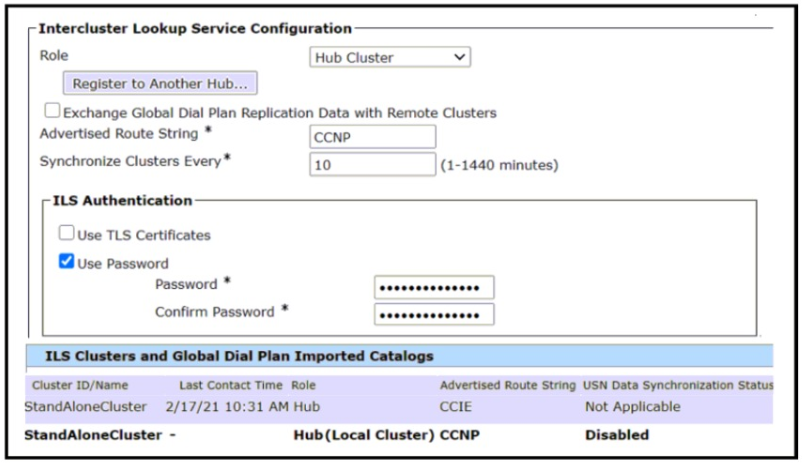

Refer to the exhibit.
ILS has been configured between two hubs using this configuration. The hubs appear to register successfully, but ILS is not functioning as expected. Which configuration step is missing?
A password has never been set for ILS.
Use TLS Certificates must be selected.
Trust certificates for ILS have not been installed on the clusters
The Cluster IDs have not been set to unique values
A user requests a feature to send an active call to the mobile phone number on the physical phone. As an administrator, what should be configured in the Cisco UCM to accomplish this?
A Remote Destination Profile having the same extension as the Mobile phone's number adds the physical phone's Directory Number to the RDP as a Remote Destination. Add the softkey 'Mobility' to the physical phone's softkey template.
A Remote Destination Profile having the same extension as the physical phone's Directory Number, add the mobile phone number to the RDP as a Remote Destination. Add the softkey 'Mobility' to the physical phone's softkey template.
A Remote Destination Profile having the same extension as the Mobile phone's number adds the physical phone's Directory Number to the RDP as a Remote Destination. Add the softkey 'Join' to the physical phone's softkey template
A Remote Destination Profile having the same extension as the physical phone's Directory Number, add the mobile phone number to the RDP as a Remote Destination. Add the softkey 'Join' to the physical phone's softkey template.
