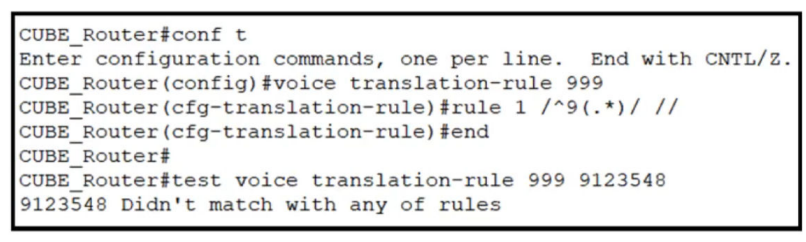

Refer to the exhibit.
Which change to the translation rule is needed to strip only the leading 9 from the digit string 9123548?
rule 1 /^9\(.*\)/A1/
rulel /.*\(3548S\)/^1/
rulel /^9\(\d*\)/^1/
rule 1/^9123548/^1/
A customer has multisite deployments with a globalized dial plan. The customer wants to route PSTN calls via the gateway assigned to each site. Which two actions will fulfill the requirement? (Choose two.)
Create one route group for each site and one global route list for PSTN calls that point to the local route group.
Create a route group which has all the gateways and associate it to the device pool of every site.
Create one global route list for PSTN calls that points to one global PSTN route group.
Create a hunt group and assign it to each side route pattern
Assign one route group as a local route group in the device pool of the corresponding site.

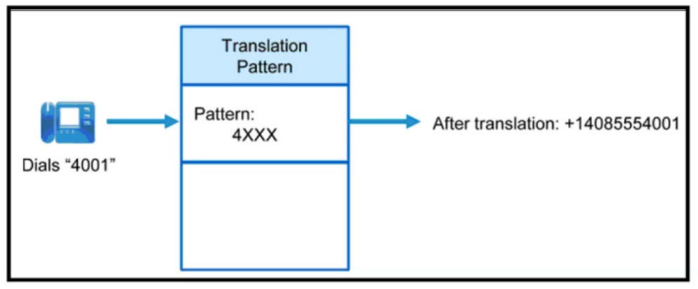

Refer to the exhibit.
A company needs to ensure that all calls are normalized to E164 format. Which configuration will ensure that the resulting digit string 14085554001 is created and will be routed to the E.164 routing schema?
Called Party Transformation Mask of + 14085554XXX
Called Party Transformation Mask of 1408555[35)XXX
Calling Party Transformation Mask of +1408555XXXX
Calling Party Transformation Mask of +14085554XXX
An engineer set up and successfully tested a TEHO solution on the Cisco UCM. PSTN calls are routed correctly using the IP WAN as close to the final PSTN destination as possible. However, suddenly, calls start using the backup local gateway instead. What is causing the issue?
WAN connectivity
LAN connectivity
route pattern
route list and route group
An administrator is asked to configure egress call routing by applying globalization and localization on Cisco UCM. How should this be accomplished?
Localize the calling and called numbers to PSTN format and globalize the calling and called numbers in the gateway.
Globalize the calling and called numbers to PSTN format and localize the calling number in the gateway.
Localize the calling and called numbers to E. 164 format and globalize the called number in the gateway.
Globalize the calling and called numbers to E. 164 format and localize the called number in the gateway.

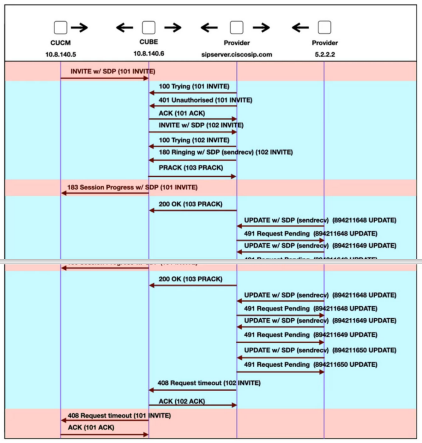

Refer to the exhibit.
A Cisco Unified Border Element continues to send 180/183 with the required: 100rel header to Cisco UCM. and the call eventually disconnects How is the issue resolved?
Enable 'SIP ReI1XX Options* and -Early Offer Support' on the SIP Profile Configuration Page in Cisco UCM.
Enable *Early Offer support for voice and video calls' on the SIP Profile Configuration Page in Cisco UCM.
Disable 'SIP Rel1XX Options* and 'Early Offer Support* on the SIP Profile Configuration Page m Cisco UCM.
Disable 'Send send-receive SDP in mid-call INVITE* on the SIP Profile Configuration Page in Cisco UCM.
An administrator is trying to apply configuration changes on Cisco CME. When the users registered on Cisco CME to dial a local number to a PSTN call, the Cisco CME sends an incorrect number of digits. What translation rule fixes the issue and sends the correct number of digits?
voice translation-rule 1 rule 1 /^4...$/2404\0/ type any national plan any Isdn
voice translation-rule 1 rule 1 // // type any subscriber plan any isdn
voice translation-rule 1 rule 1 /^4...S/ /9132404 0/ type any subscriber plan any Isdn
voice translation-rule 1 rule 1 /^4...V /2404\0/ type any subscriber plan any isdn

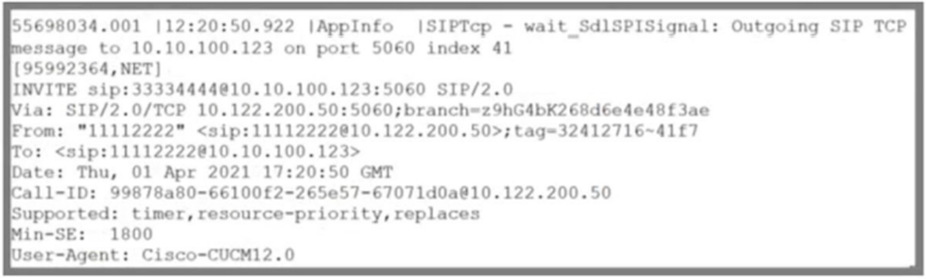

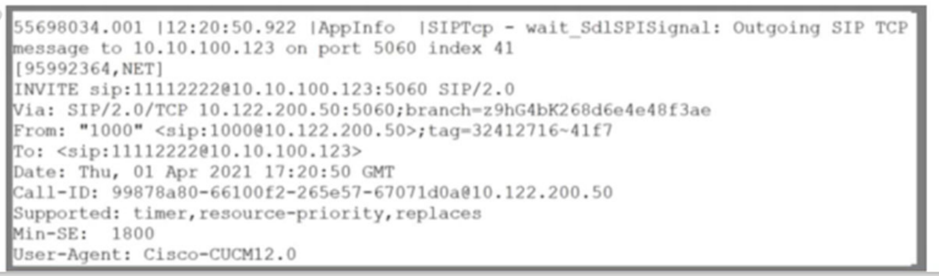

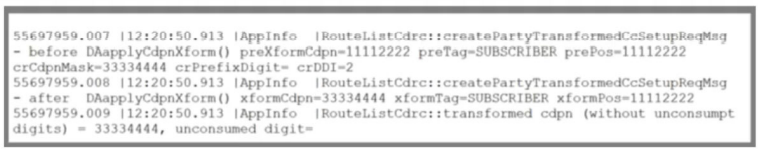

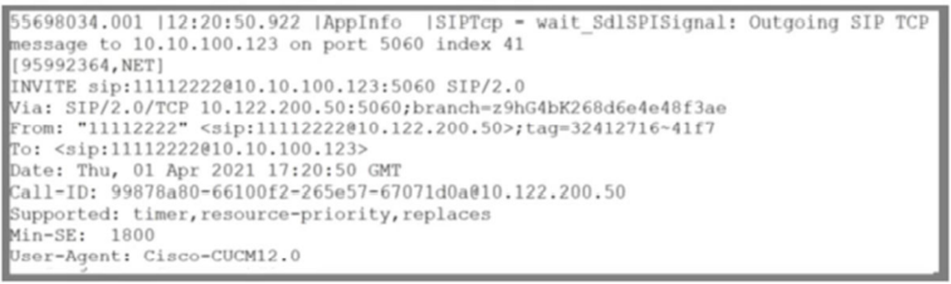

Refer to the exhibit.
Which INVITE is sent to 10.10.100.123 as a result of this log?
A)
B)
C)
Option A
Option B
Option C
Option D

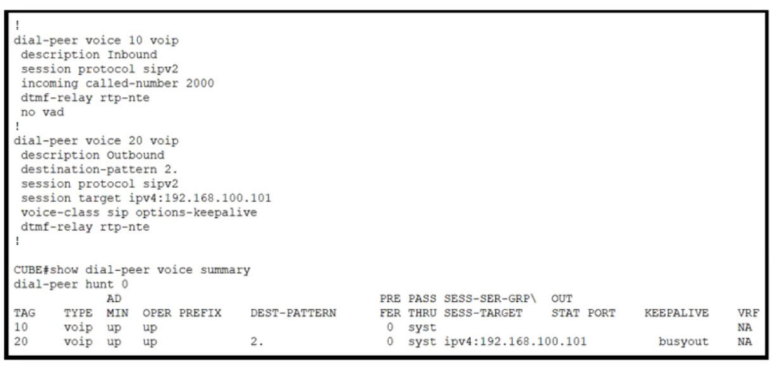

Refer to the exhibit.
A call mode through the Cisco Unified Border Element to pilot 2000 is foiling. What is causing the call to foil?
No codecs are configured on the dial peers
The Cisco Unified Border Element is not receiving a response to its OPTION keepahves.
The destination pattern is incorrect for the dialed number.
VAD was not disabled on the outgoing dial poor.
DRAG DROP
Drag and drop the commands from the bottom to the blanks in the code to implement a translation rule to allow only 11 digits to be received over a SIP trunk to a SIP provider. The Cisco UCM is currently sending calls to the Cisco Unified Border Element in E. 164 format. Not all options are used.
