Refer to the exhibit.
A collaboration engineer is troubleshooting an issue where external callers cannot leave voicemail messages. Also, internal users report hearing the reorder tone (fast busy) when they attempt to retrieve voicemail messages from their Cisco IP phones. Which action resolves the issue?
Ensure that Cisco UCM can resolve the destination address via DNS.
Start the Cisco Call Manager service at the destination.
Ensure that the SIP Trunk Security Profile is configured to use UDP for transport.
Verify that the correct port numbers are used for the SIP trunk.
The company Cisco UCM cluster has two different gateways for off-net calls. The current configuration uses 9 as a prefix to get to the main gateway. The secondary gateway is for any calls that start with 9713, but this is not yet configured. The admin does not want to add more route patterns other than the current 9 prefix for the gateway to the Cisco UCM. How must the Cisco UCM be configured to meet the requirements?
Configure two CSSs. then add a translation pattern with the secondary CSS to send calls with 9713 to the secondary gateway.
Configure two partitions and two CSSs, then add a translation pattern with the secondary CSS to send all calls with 9713 to the secondary gateway.
Create a Standard Route Group to dynamically route calls with prefix 9713 to the secondary gateway.
Configure a Route Group and a Route List to send calls with prefix 9713 to the secondary gateway.
Exhibit.

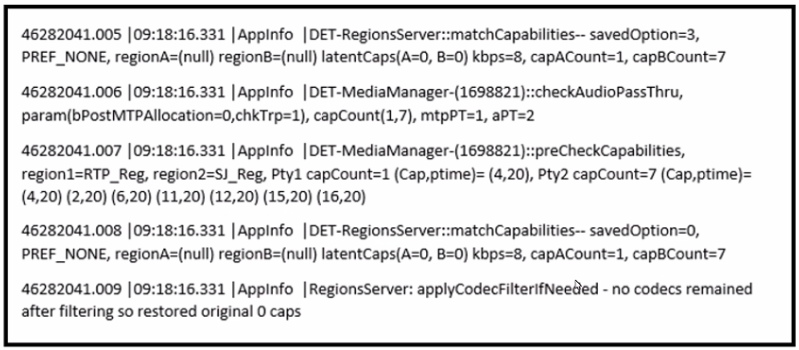

Refer to the exhibit. All calls from site A to site B are failing, and the issue has been identified as a media negotiation problem. Which configuration change resolves the issue?
Disable G.722 on all devices at both sites.
Enable Early Offer on the SIP trunk.
Increase the bandwidth allowance between the RTP_Reg and SJ_Reg regions to 64 kbps.
Create a new audio codec preference list with G.711 U-law 64k as the highest priority and apply it to RTP_Reg and SJ_Reg.
The company implemented Cisco Unified Mobility on the Cisco UCM. The users are satisfied and can transfer voice calls between devices. Mobile users want to extend the timer that controls the time given to pick up a voice call on an IP phone from 4 to 6 seconds. Which configuration change satisfies this requirement?
Change the 'Maximum Wait Time for Mobility Pickup' setting from 4 to 6.
Change the 'Maximum Wait Time for Desk Pickup' setting from 4 to 6.
Change the 'Maximum Wait Time for Mobility Pickup' setting from 4000 to 6000.
Change the 'Maximum Wait Time for Desk Pickup' setting from 4000 to 6000.

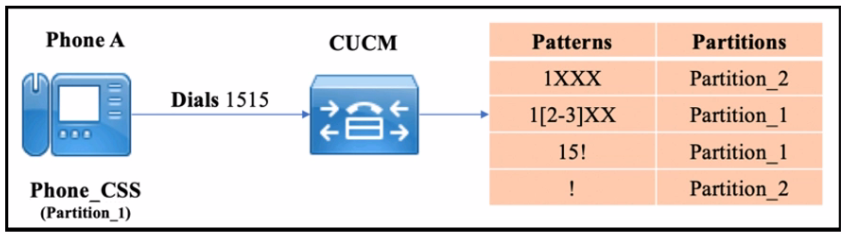

Refer to the exhibit.
The Cisco UCM is configured with four route patterns. When phone A dials 1515, which pattern does Cisco UCM choose as the correct match?
1XXX
15
!
1[2-3]XX
An engineer needs to configure a translation pattern in Cisco UCM to match dialed numbers that start with 9011 so that the calls can be routed with a single route pattern of VH If the engineer uses translation pattern 9011.! which two called party transformation settings must be configured in Cisco UCM? (Choose two.)
set Prefix Digits (Outgoing Calls) to +
set Called Party Transform Mask to +!
set Discard Digits to Predot
set Called Party Numbering Plan to International
set Called Party Number Type to International
A customer reports audio quality issues between video endpoints in the HQ location in California and one of the branches in Texas. Which two actions must RTCP take to troubleshoot this issue? (Choose two.)
Compress the headers of RTP traffic to lower the bandwidth consumption over the WAN. which allows more calls with less bandwidth consumed.
Configure the rtcp keepalive command in Cisco Unified Border Element to generate reports, which can be reviewed using the debug voip rtcp packet command.
Allow for VAD to be used for calls using the G7.29 codec, which reduces the usage of the WAN bandwidth and saves around 30% of bandwidth per call.
Encrypt the media to stop rogue devices from replying and putting that traffic back on the WAN, which avoids any extra bandwidth and ensures the quality of the calls.
Gather statistics on a media connection and information such as packets sent, lost packets, jitter, feedback, and round-trip delay. This information can help isolate the type of audio quality issues and the direction of the affected traffic.
A collaboration engineer is configuring call pickup for a Cisco UCM user that currently has a working BLF speed dial button for the teammate's extension. The user wants to see calls ringing on the teammate's extension and to answer those calls by pressing the BLF speed dial button. Which configuration step meets this requirement?
Set the call pickup group to <none> for both extensions.
Select the call pickup checkbox on the BLF speed dial settings.
Assign both extensions to the same partition.
Assign the extensions to different call pickup groups.
A customer reports that outbound calls from Cisco UCM to Cisco Unified Border Element are not getting early media. During troubleshooting, the customer finds that Cisco UCM is sending a delayed offer SIP INVITE. Cisco Unified Border Element responds with a 183 Session Progress with SDP message. However, the customer finds that Cisco UCM does not respond to the 183 messages. Which action must the customer perform to resolve the problem?
On Cisco Unified Border Element, configure midcall-signaling passthru.
On Cisco UCM, change the 'Early Offer support for voice and video calls' field on the SIP profile that is applied to the SIP trunk to Disabled.
On Cisco Unified Border Element, configure early-offer forced.
On Cisco UCM. change the 'SIP ReHXX Options' field on the SIP profile that is applied to the SIP trunk to Send PRACK if 1xx Contains SDP.
A Collaboration engineer is implementing call processing capabilities on the Cisco UCM and needs to configure Call Queuing to place callers in a queue until hunt members are available to answer them. Which action must be completed before this feature can be configured?
Configure Hunt Pilot Queuing.
Service the Cisco IP Voice Media Streaming (IPVMS) application.
Configure Music On Hold.
Configure announcements.
