An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which two debugs must the administrator turn on? (Choose two).
debug H.245 asn1
debug H.323 message
debug H.225 asn1
debug H.225 media
debug H.323 asn1

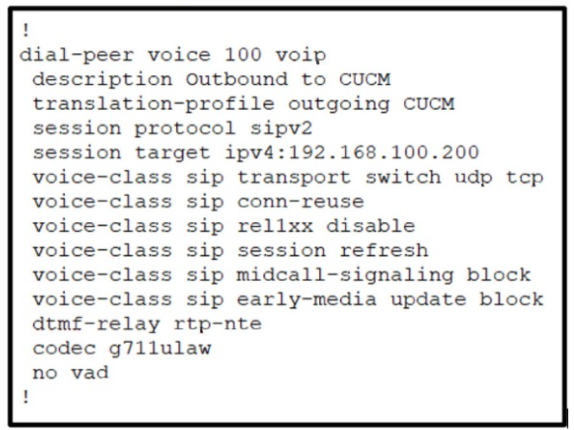

Refer to the exhibit.
An engineer is troubleshooting an issue where inbound calls to Cisco UCM with early media fail to establish. While investigating the issue, the engineer finds that Cisco UCM is set to require a PRACK. but the Cisco Unified Border Element is not sending it. Which command is causing this issue?
voice-class sip rel1xx disable
voice-class sip early-media update block
voice-class midcall-signaling block
voice-class sip conn-reuse
An engineer must implement call restriction to toll-free numbers using a class of restriction in a branch Cisco UCME. In which two places is the corlist incoming or cor Incoming command configured? (Choose two.)
'ephone-dn' configuration mode
'voice register global' configuration mode
'telephony-service' configuration mode
'voice register pool' configuration mode
'dial-peer cor custom' configuration mode
CollabCorp is a global company with two clusters, emea.collab corp and apac.collab.corp. URI dialing is implemented and working in each cluster. The company configured routing between clusters to make inter-cluster calls via URI. but this is not working as expected. Which two configuration elements should be checked to resolve this issue? (Choose two.)
directory URI partition
SIP route pattern
intercluster trunk
calling search space and partition
SIP trunk

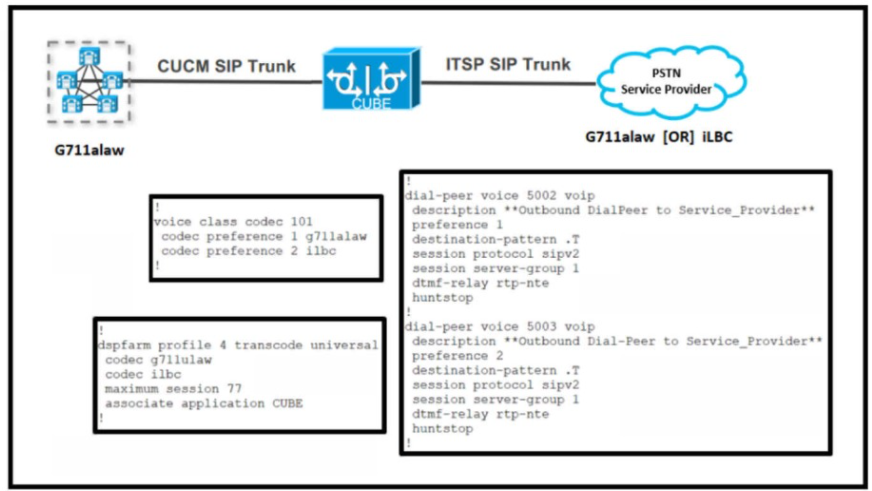

Refer to the exhibit.
Outbound calls to the service provider cause intermittent errors due to a codec mismatch. The internal network sends early offer SDP that contains only G.711 A-law. The service provider reports that some destinations support only G.711 A-law while others support only iLBC. The service provider also allows only 20 active calls at a time Which configuration allows successful media negotiation for all calls using outbound dial peers 5002 and 5003?

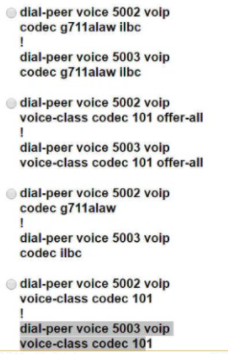

Option A
Option B
Option C
Option D
An administrator discovers that employees are making unauthorized long-distance and international calls from logged-off Extension Mobility phones when the authorized users are away from their desks Which two configurations should the administrator configure in the Cisco UCM to avoid this issue? (Choose two.)
Remove the long-distance & international pattern's partitions from the calling search space of the physical phone.
Add the long-distance & international pattern's partitions to the calling search space of the physical phone's directory number.
Remove the long-distance & international pattern's partitions from the calling search space of the device profile.
Add the long-distance & international pattern's partitions to the calling search space of the physical phone.
Add the long-distance & international pattern's partitions to the calling search space of the device profile
Refer to the exhibit.
A user dials 84969010 and observes that the call is not routed immediately. The administrator notices that after matching the fixed-length translation pattern, the call hits the \+! pattern and waits for interdigit timeout What should be configured to ensure that the call routes out immediately?
Allow Device Override on the route pattern
Route Next Hop By Calling Party Number on the translation pattern
Do Not Wait For Interdigit Timeout On Subsequent Hops on the translation pattern
Do Not Wait For Interdigit Timeout On Subsequent Hops on the route pattern
An engineer is troubleshooting Cisco Device Mobility and find that the phone has roamed to a building that is assigned to a different device pool but has not changed its device pool accordingly What action resolves the issue?
Set correct Location under Current Device Mobility Settings
Enable SRST under Current Device Mobility Settings
Set the correct subnet under Device Mobility Info.
Set Device CSS under Current Device Mobility Settings.
A customer is using a SIP trunk to route calls to ITSP to decrease the possibility of downtime, the customer invested in a failover device How does the customer ensure reachability to ITSP, so that if one device on ITSP fails, the calls will be routed to another device?
Enable transmit security status on the SIP security profile
Enable ANAT on the SIP profile.
Monitor the link using network management toots, and if it fails, manually change the routing to another working device.
Enable SIP Option Ping on the SIP profile.
Calls to a particular extension are not routing to voicemail. The user reaches the voicemail system from the handset by pressing the Messages button Which configuration parameter causes this problem?
The voicemail pilot number for call forwarding is missing from the ephone-dn
The voicemail pilot number is missing from the call handling on Cisco Unity Express
The voicemail pilot number is missing from the telephony service configuration on Cisco UCME
The voicemail pilot number for call forwarding is missing from the ephone
