An LTM Specialist must reconfigure a BIG-IP LTM system that load balances traffic to web application servers. The application developer inform the LTM Specialist that TLS must be used to communicate with the application servers.
Which additional profile is required as part of virtual server configuration?
What should the LT'M Specialist add to the virtual server?
An LTM Specialist discovers an issue with the custom http monitor that returns in a false positive status.
The end users cannot get the right website, but the http monitor marks the pool member UP.
What is causing the false positive result?
An LTM Specialist needs to assign a health monitor to a pool with two pool members 10.10.10 101 and 10.10.10.102 Both pool members are listening on port 8080 with TCP. The health of the application depends on the health of an another server (10 10 10 100) that runs port 9080 with TCP.
Which two custom TCP monitors should be selected as the pool's health monitors? (Choose two)
Which process can be eliminated by terminating SSL communication on the LTM device rather than the backend pool members?
An LTM device load balances a pool of routers. The LTM device needs to verify path availability to an HTTP server with the IP address 192 168.10 10. located beyond the routers.
Which monitor type and parameters arc required?
One LTM device in an HA pair of LTM devices is unable to reach its default gateway. An HA Failover event needs to happen.
Which configuration item enables this behavior?
Exhibit.
The server team has recently configured the three new DNS servers shown for the data center. No current DNS servers are currently configured on the LTM device.
Which command should be used to configure the LTM device to use the new DNS servers?
An LTM Specialist needs to create an iRule that creates persistence records based on a JSESSIONID cookie. If a persistence record already exists, then the iRule must persist the client connection according to the existing record.
Which persistence profile enables the iRule to meet these requirements?
An LTM Administrator receives an email from the NOC stating that the switch connected to the backend server was shut down for maintenance. The BIG-IP device handles only UDP traffic. The BIG IP device did not fail over to a DR location when no pool members were available.
When the LTM Administrator checks the pool, it confirms that the monitor is still marking UP the pool member.

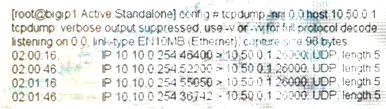

A tcpdump of the traffic shows the following output:
A list of the monitor configuration shows the following:
Which two modifications to the LTM configuration will mark this pool member down, when the switch is down? (Choose two.)
