Question 201

-- Exhibit --

Refer to the exhibits.

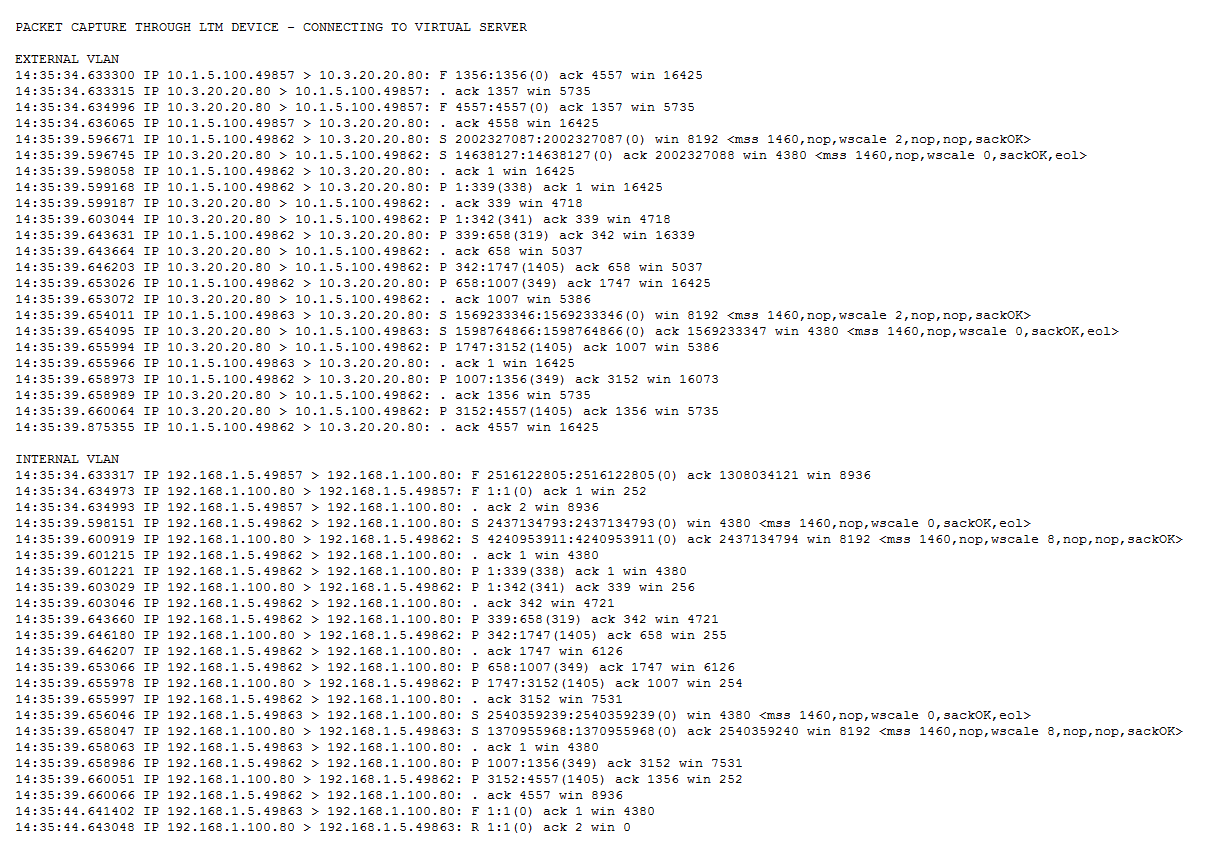

Users are able to access the application when connecting directly to the web server but are unsuccessful when connecting to the virtual server. Return traffic bypasses the LTM device using Layer 2 nPath routing.

Which configuration change resolves this problem?

Enable a SNAT pool on the LTM device.

Disable address translation on the LTM device.

Configure a route on the web server to the client subnet.

Configure the virtual server to listen on port 80 on the LTM device.

Configure the VIP address on the loopback interface of the web server.

Show Answer Comment (0)

Question 202

-- Exhibit --

Refer to the exhibits.

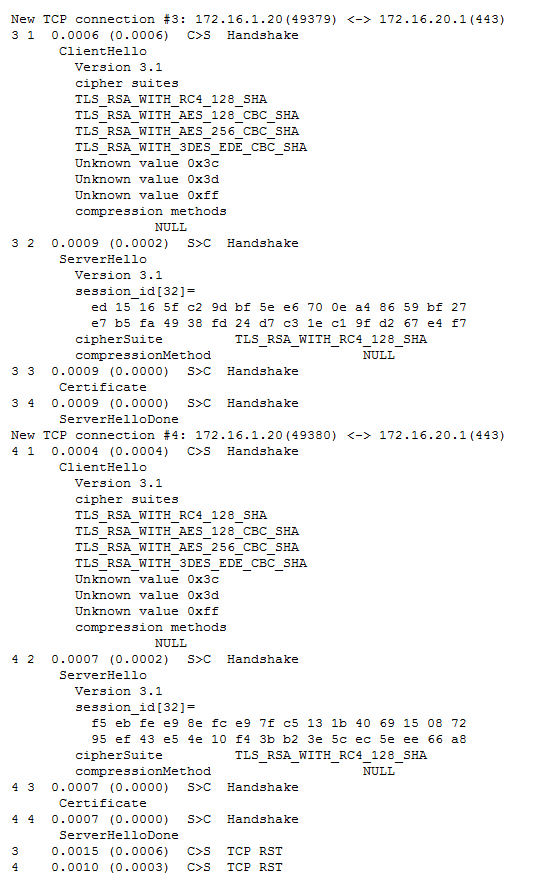

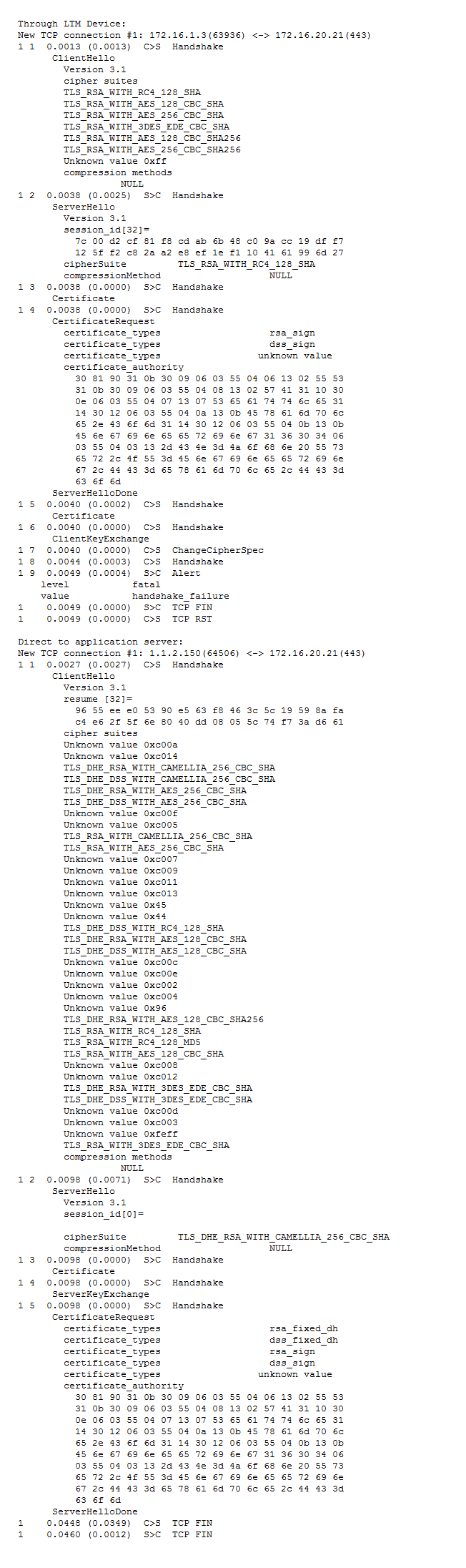

After upgrading LTM from v10 to v11, users are unable to connect to an application. The virtual server is using a client SSL profile for re-terminating SSL for payload inspection, but a server SSL profile is being used to re-encrypt the request.

A client side ssldump did NOT show any differences between the traffic going directly to the server and the traffic being processed by the LTM device. However, packet capture was done on the server, and differences were noted.

Which modification will allow the LTM device to process the traffic correctly?

Enable Strict Resume.

Change Secure Renegotiation to 'Request.'

Enable ProxySSL option in the server SSL profile.

Change to different ciphers on the server SSL profile.

Show Answer Comment (0)

Question 203

-- Exhibit --

Refer to the exhibits.

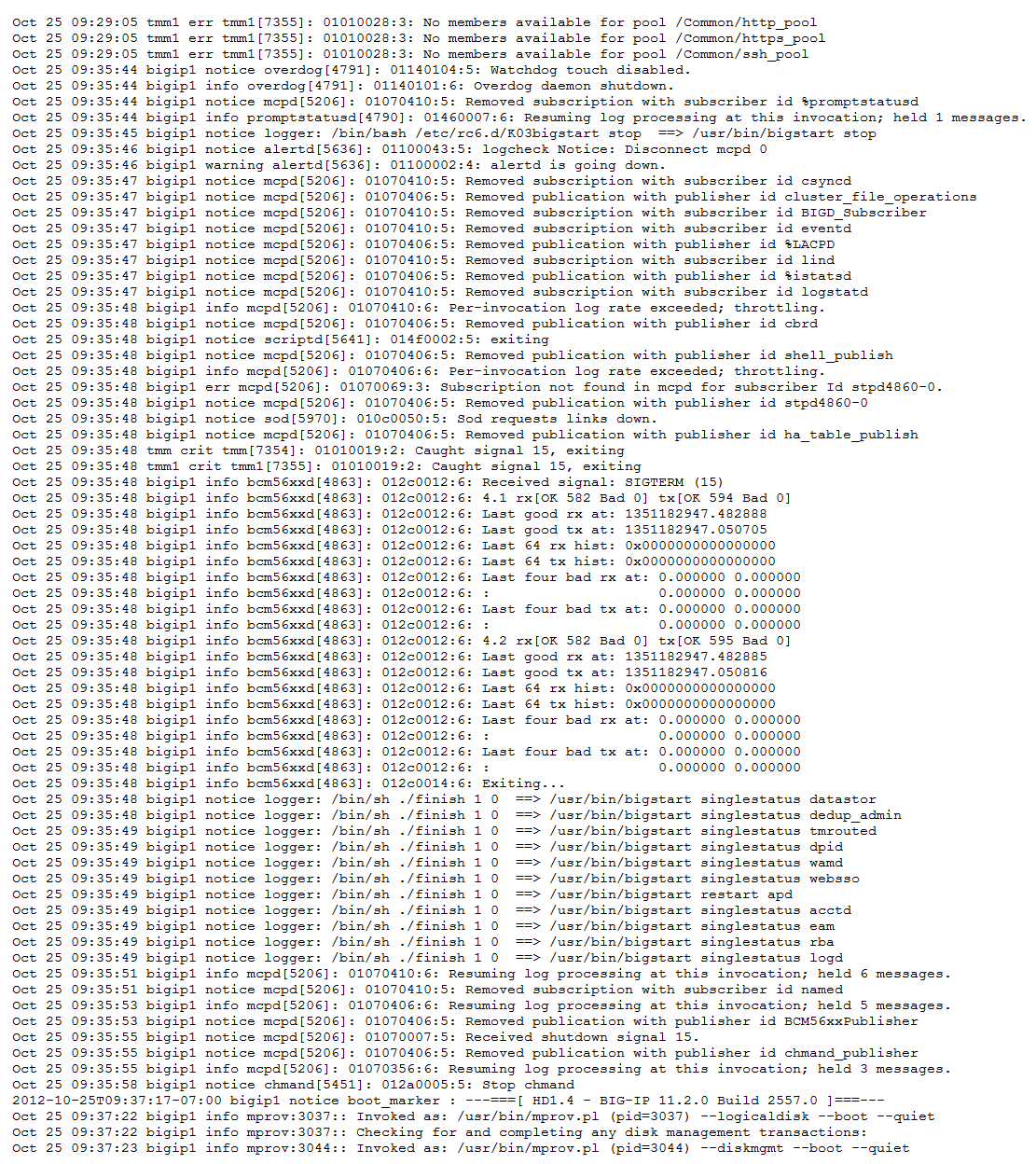

An LTM Specialist uses the information in the logs to determine the cause of a failover event in a high-availability (HA) pair.

What caused the failover?

The overdog process crashed.

The system was administratively rebooted.

The process bcm56xxd received SIGTERM from the watchdog process.

The configuration reload request caused the config to reload and the device to failover.

Show Answer Comment (0)

Question 204

-- Exhibit --

Refer to the exhibit.

Which URL should be reported to the server/application team as getting user-visible errors?

/env.cgi

/page14.cgi

/reflector.php

/browserspecific.html

Show Answer Comment (0)

Question 205

-- Exhibit --

Refer to the exhibits.

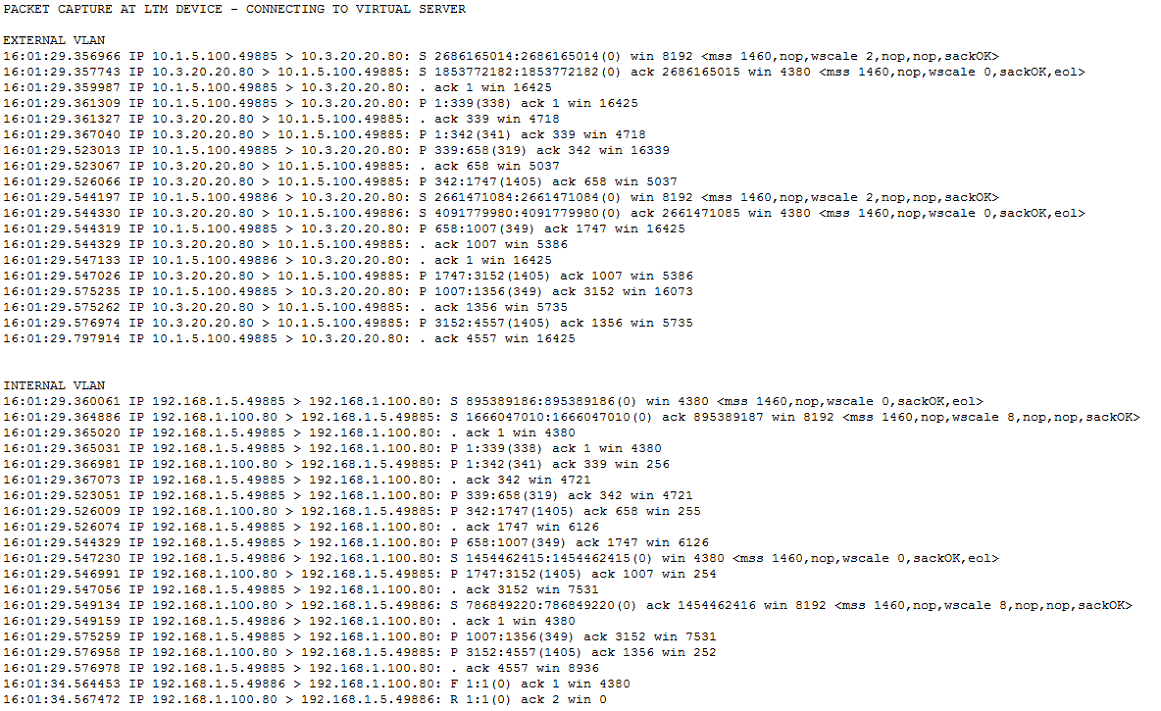

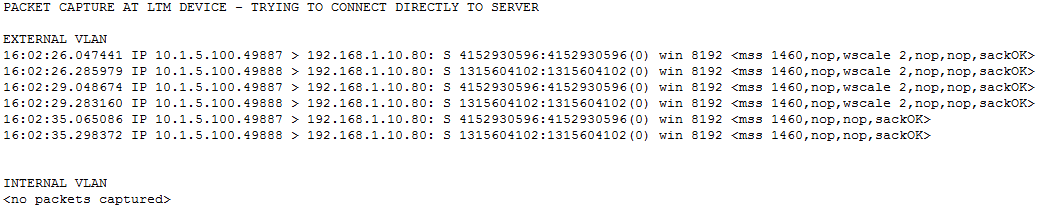

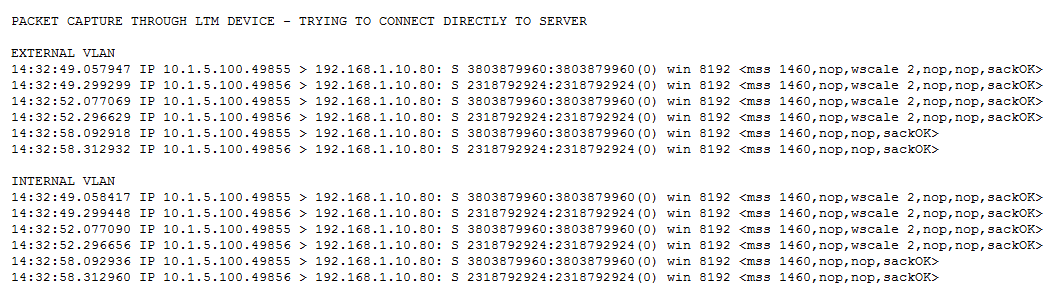

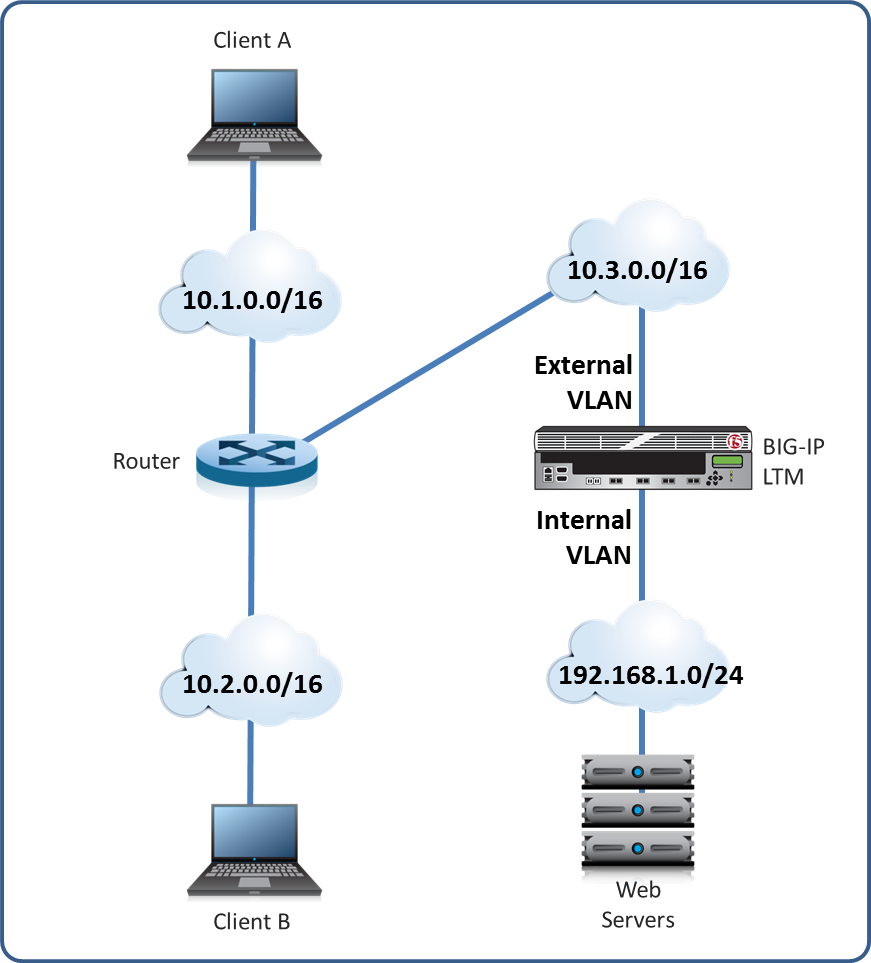

Users are able to access the application when connecting to the virtual server but are unsuccessful when connecting directly to the application servers. The LTM Specialist wants to allow direct access to the application servers.

Why are users unable to connect directly to the application servers?

The router does NOT have a route to the server subnet.

The web server does NOT have a correct default gateway.

The LTM device does NOT have a SNAT on the External VLAN.

The LTM device does NOT have an IP Forwarding virtual server on the Internal VLAN.

The LTM device does NOT have an IP Forwarding virtual server on the External VLAN.

Show Answer Comment (0)

Question 206

-- Exhibit --

Refer to the exhibits.

Which configuration change resolves this problem?

Enable port 443 on the virtual server.

Configure a SNAT pool on the LTM device.

Disable address translation on the virtual server.

Configure an IP Forwarding virtual server on the LTM device.

Configure a route to the web server subnet on the network router.

Show Answer Comment (0)

Question 207

-- Exhibit --

Refer to the exhibit.

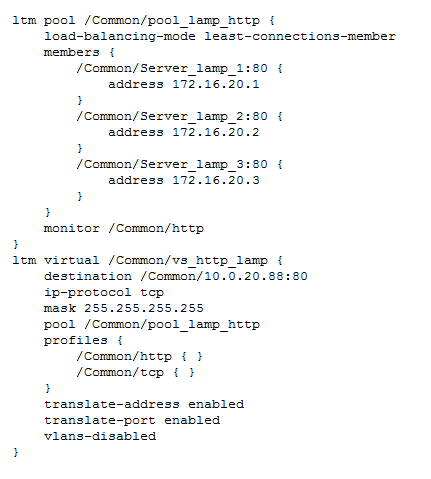

Users report that a web application works incorrectly. Sometimes contextual data displayed on the web pages is accurate; other times it is inaccurate.

The LTM administrator looks at the connection table with a filter on one of the client IP addresses currently connected using the command 'tmsh show sys connection cs-client-addr 10.0.20.1'

with the following results:

10.0.20.1:60048 10.0.20.88:80 10.0.20.1:60048 172.16.20.1:80 tcp 3 (tmm: 0)

10.0.20.1:60050 10.0.20.88:80 10.0.20.1:60050 172.16.20.3:80 tcp 3 (tmm: 0)

10.0.20.1:60047 10.0.20.88:80 10.0.20.1:60047 172.16.20.2:80 tcp 3 (tmm: 0)

10.0.20.1:60049 10.0.20.88:80 10.0.20.1:60049 172.16.20.1:80 tcp 3 (tmm: 0)

What is the solution to the problem?

Synchronize the clock of the LTM device with NTP.

Modify the load balancing method attached to the pool.

Set up an HTTP cookie insert profile in the virtual server.

Modify the setup of the monitor bound to the pool used by the application.

Show Answer Comment (0)

Question 208

-- Exhibit --

Refer to the exhibit.

The virtual server is listening on port 443.

What is the solution to the problem?

Add an SSL Client profile to the existing virtual server.

Modify the virtual server HTTP Profile to 'Redirect RewritE . All'.

Modify the virtual server TCP profile to disable Nagle's Algorithm.

Modify the virtual server HTTP Profile to 'Redirect RewritE. Matching'.

Show Answer Comment (0)

Question 209

-- Exhibit --

Refer to the exhibit.

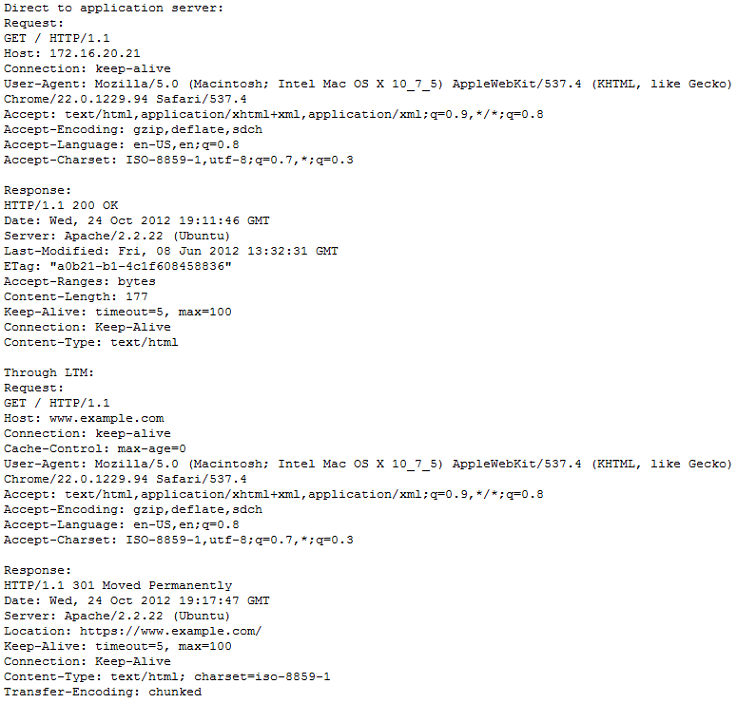

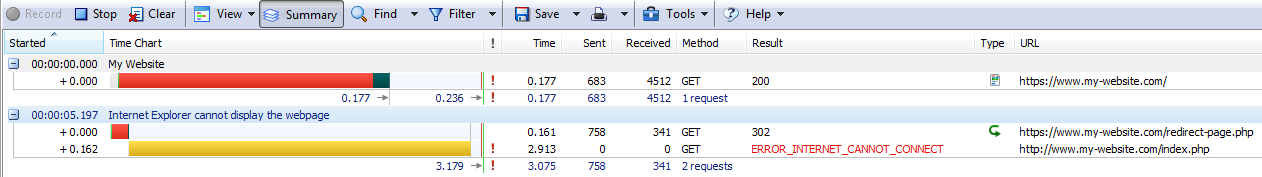

An LTM Specialist has created a virtual server to balance connections to a pool of application servers and offload SSL decryption. Clients connect to the application at https://www.example.com/. The virtual server is configured with a clientssl profile but no serverssl profile. The application servers are listening on ports 80 and 443. Users are unable to connect to the application through the virtual server but are able to connect directly to the application server.

What is the root cause of the error?

The LTM device is chunking responses.

The LTM device is redirecting users to HTTPS.

The pool members are configured with the wrong port.

The application servers are redirecting users to HTTPS.

Show Answer Comment (0)

Question 210

-- Exhibit --

Refer to the exhibit.

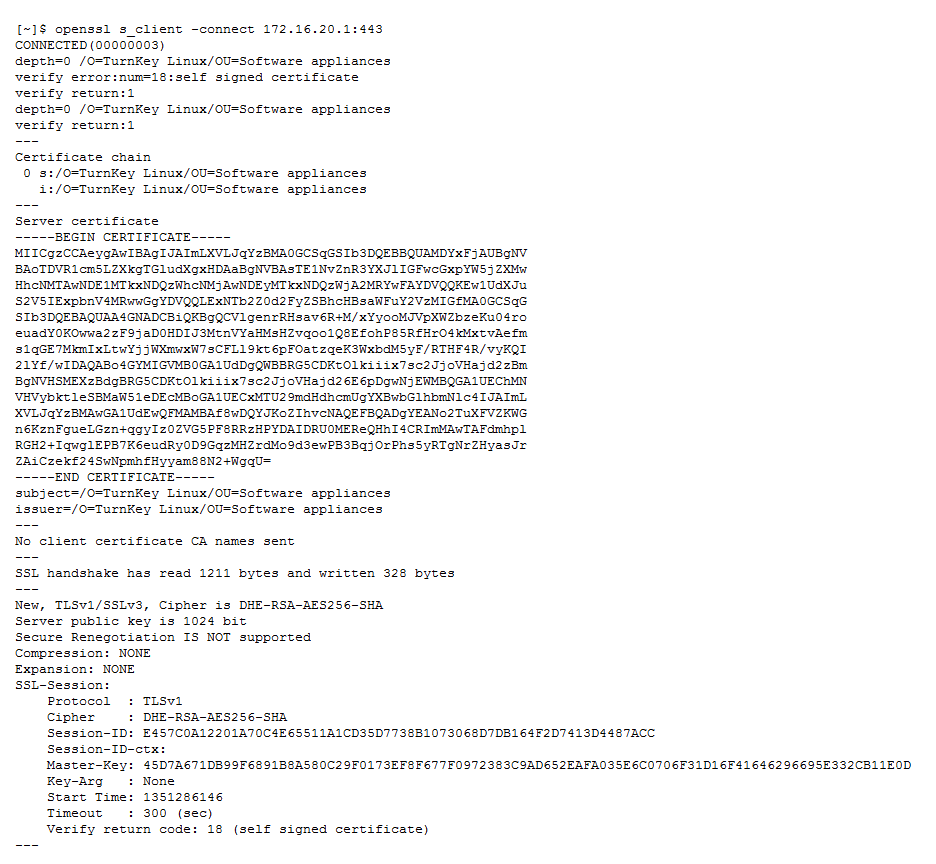

An LTM Specialist has created a virtual server to load balance traffic to a pool of HTTPS servers. The servers use client certificates for user authentication. The virtual server has clientssl, serverssl, and http profiles enabled. Clients are unable to connect to the application through the virtual server. Clients are able to connect to the application servers directly.

What is the root cause of the problem?

The application server does NOT support 2048-bit keys.

The clientssl profile is NOT set to require a client certificate.

The LTM device does NOT trust the issuing CA of the client certificate.

The application server does NOT see the client certificate due to SSL offload.

Show Answer Comment (0)
