Question 1
Egress PE NAT is being used via a single centralized router to provide Internet access to L3VPN customers.
Which description of the NAT operation is true?
Users m different VRFs cannot share the same outside global IP address
The NAT table contains a field to identify the inside VRF of a translation
Multiple address pools are needed for the same L3VPN because each site has a separate NAT
The different L3VPNs using the Internet access must not have IP overlaps internally
Question 2
How much must the MTU be increased when configuring the 802.1q VLAN tag?
2 bytes
4 bytes
8 bytes
12 bytes
Question 3
Refer to the exhibit:
Export statistics received do not include the BGP next hop.
Which statement about the NetFlow export statistics is true?
Only the origin AS of the source router will be included in the export statistics.
Loopback 0 must be participating in BGP for it to be included in the export statistics.
The origin AS and the peer-as will be included in the export statistics.
To include the BGP next hop in the export statistics, those keywords must be included with the version 9 entry.
Question 4

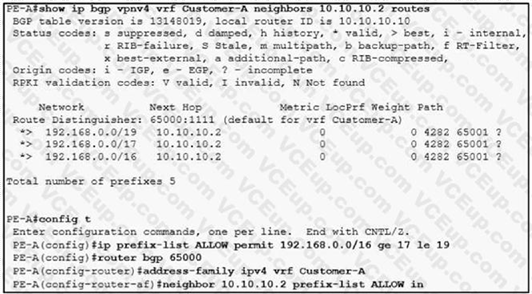

Refer to the exhibit:
Which three outcomes occur if the prefix list is added to the neighbor? (Choose three)
192.168 0.0/19 is denied.
192.168 0.0/17 is denied.
192.168 0.0/17 is permitted
192.168.0.0/16 is denied
192.168 0.0/16 is permitted
192.168 0.0/19 is permitted
Question 5
Which statement about segment routing prefix segments is true?
It is linked to a prefix SID that is globally unique within segment routing domain.
It is the longest path to a node.
It is linked to an adjacency SID that is globally unique within the router.
It requires using EIGRP to operate.
Question 6
You are creating new Cisco MPLS TE tunnels. Which type of RSVP message does the headend router send to reserve bandwidth on the path to the tunnel’s router?
error
reservation
path
tear
Question 7

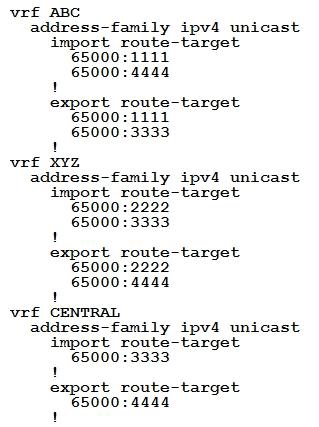

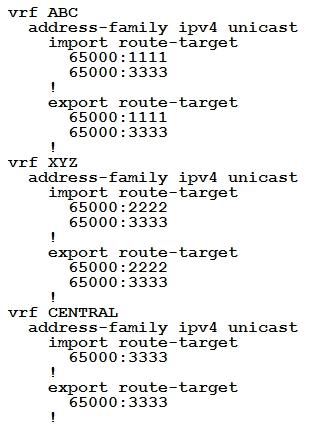

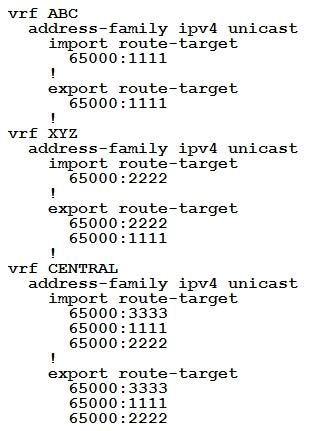

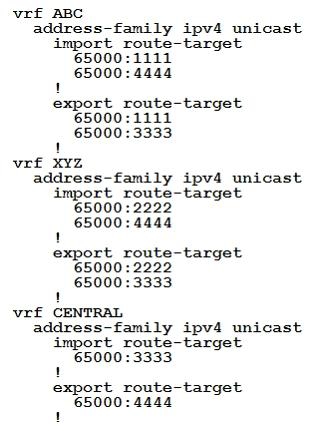

An engineer is setting up overlapping VPNs to allow VRF ABC and XYZ to communicate with VRF CENTRAL but wants to make sure that VRF ABC and XYZ cannot communicate. Which configuration accomplishes these objectives?
Question 8
In an MPLS network, which protocol can be used to distribute a Segment Prefix?
OSPF
LDP
RSVP-TE
EIGRP
Question 9
Which statement about Network Services Orchestrator (NSO) is true?
It is used only in service provider environments
It can be used only with XML coding
It uses YANG modeling language to automate devices
It must use SDN as an overlay for addressing
Question 10
Which task must be performed first to Implement BFD in an IS-IS environment?
Disable Cisco Express Forward.ng on all interfaces running routing protocols other than IS-IS
Configure BFD under the IS-IS process
Configure all ISIS routers as Level 2 devices
Configure BFD in an interface configuration mode
