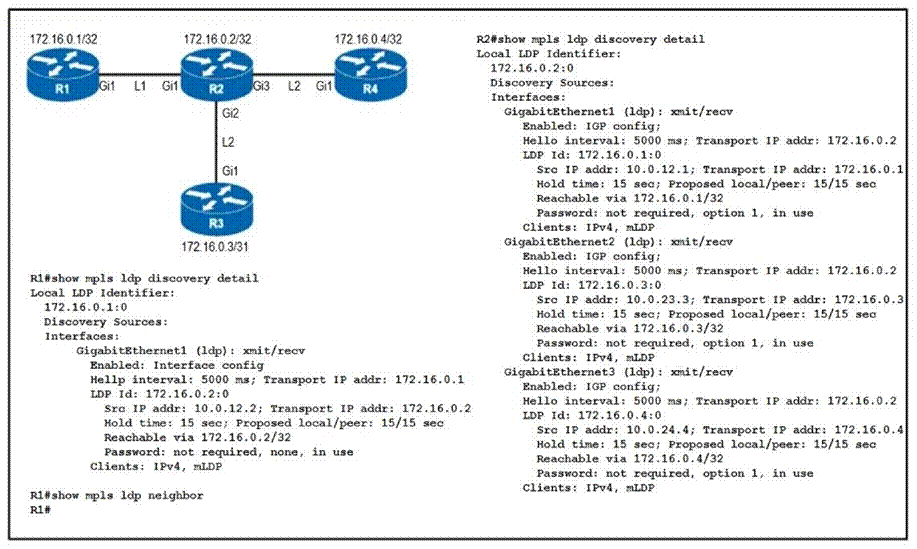

Refer to the exhibit.
An engineer began to configure LDP between R1 and R2, but R1 and R2 cannot yet establish an LDP TCP connection. Which additional task must be completed to finish the implementation?
Configure the mpls Idp neighbor 172.16.0.1 password command on R1
Configure the mpls Idp neighbor 10.0.12.1 password command on R1
Configure the no mpls Idp password option 1 command on R2
Configure the no mpls Idp password option 1 command on R1

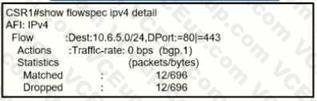

Refer to me exhibit.
A network operator recently configured BGP FlowSpec for me internal IT network What will be inferred from the configuration deployed on me network?
The policy is configured locally on CSRl and drops all traffic for TCP ports 80 and 443
The policy is learned via BGP FlowSpec and drops all traffic for TCP ports 80 and 443
The policy is warned via BC FlowSpec aid has active traffic
The policy is configured locally on CSR1 and currently has no active traffic
An network engineer is deploying VRF on ASBR router R1. The interface must have connectivity over an MPLS VPN inter-AS Option AB network. Which configuration must the engineer apply on the router to accomplish this task?

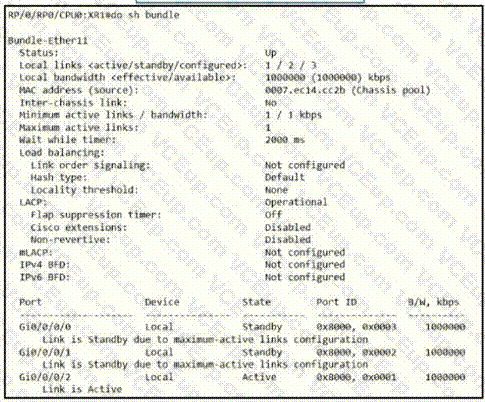

Refer to the exhibit.
A network operator needs to shut down interface Gi0/0/0/2 for maintenance. What occurs to the interface states of Gi0/0/0/0 and Gi0/0/0/1?
Gi0/0/0/1 and Gi0/0/0/0 become active
Gi0/0/0/1 and Gi0//0/0 remains standby
Gi0/0/0/0 becomes active. Gi0/00/1 remains standby
Gi0/0/0/1 becomes active Gi0/0/0/0 remains standby

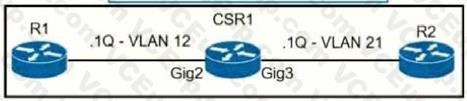

Refer to the exhibit.
A network operator must configure CSR1 interlaces GigabitEihernet2 and GigabitEthemet to rewrite VLAN tags 12 and 21 for traffic between R1 and R2 respectively. Which configurator accomplishes this task?
The administrator of a small company network notices that intermittent network issues occasionally cause inbound notifications to its SNMP servers to be lost. Which configuration must the administrator apply so that the SNMP servers acknowledge the notifications that they receive?
snmp-server community ciscotest rw 10
snmp-server host tests.cisco.com public snmp-server community ciscotest rw 10
snmp-server enable traps bgp snmp-server host 192.169.2.1 Informs
snmp-server enable traps snmp
What are two characteristics of MPLS TE turrets? (Choose two)
They require EIGRP to be running in the core.
They use RSVP to provide bandwidth for the tunnel.
They are run over Ethernet cores only.
The headend and tailend routes of the tunnel must have a BGP relationship
They are unidirectional

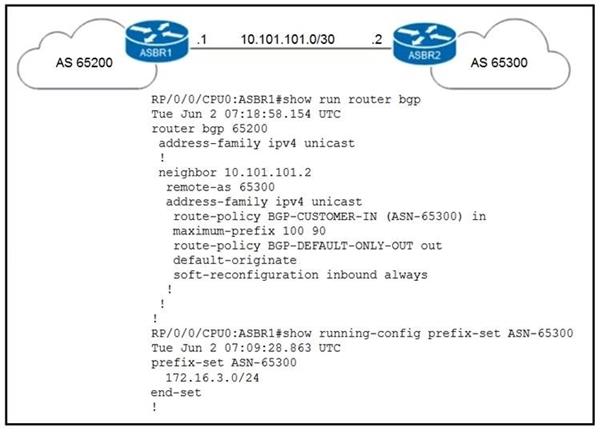

Refer to the exhibit.
A network engineer is implementing a standard customer route-policy on ASBR1 with these requirements:
• It must accept only customer-assigned prefixes
• It must preserve customer advertised BGP communities
• It must set the local-preference to 110 for all prefixes
• It must attach the ORIGINATION-PE and LOCAL-CITY communities to all accepted prefixes.
Which route policy must the engineer implement on ASBR1 to satisfy the requirements?
Refer to the exhibit.
An engineer applied a gRPC dial-in configuration on customer's router to provide connection multiplexing and two-way streaming. What does this configuration accomplish in a gRPC?
It is the encoding requested by the gRPC server.
IT is the encoding that is used for dial-in and dial-out.
It is used for encoding with the default protocol buffers
It is the encoding requested by the gRPC client.
What are two factors to consider when implementing NSR High Availability on an MPLS PE router?
(Choose two.)
It consumes more memory and CPU resources than NSF
It operates normally without NSR support on the PE peers.
It requires all PE-CE sessions to support NSR
It requires routing protocol extensions
It cannot sync state information across redundant RPs
