Cisco 350-501 Practice Test - Questions Answers, Page 16
List of questions
Question 151
Which feature will an operator use while implementing MPLS TE on customer's network, to prevent an LSP from using any overseas inks?
bandwidth
affinity
explicit path
SLRG
Question 152

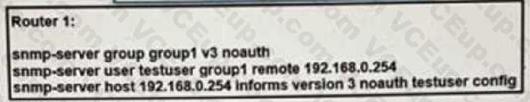

Refer to the exhibit.
A network engineer is deploying SNMP configuration on client's routers. Encrypted authentication must be included on router 1 to provide security and protect message confidentially. Which action should the engineer perform on the routers to accomplish this task?
snmp-server host 192.168.0.254 informs version 3 auth testuser config.
snmp-server user testuser group 1 remote 192.168.0.254 v3 auth md5 testpassword
snmp-server group group 1 v3 auth.
snmp-server community public
Question 153
An engineer needs to implement QOS mechanism on customer's network as some applications going over the internet are slower than others. Which two actions must the engineer perform when implementing traffic shaping on the network in order to accomplish this task? (Choose two)
Configure a queue with sufficient memory to buffer excess packets.
Configure the token values in bytes.
Implement packet remarking for excess traffic.
Implement a scheduling function to handle delayed packets.
Configure a threshold over which excess packets are discarded.
Question 154

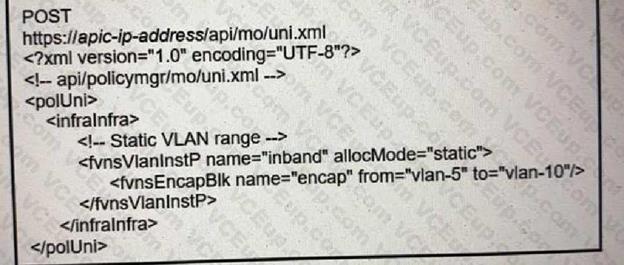

Refer to the exhibit.
What does the script configure?
a VLAN namespace
selectors for the in-band management
a physical domain
a static VLAN
Question 155

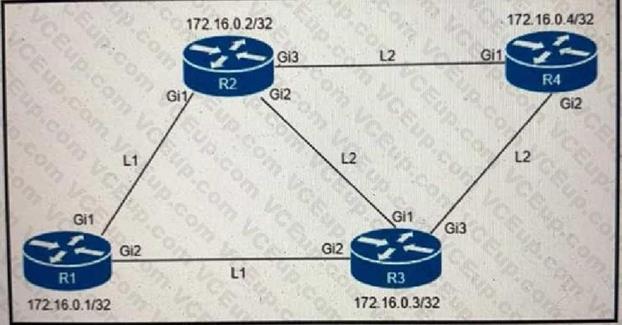

Refer to the exhibit.

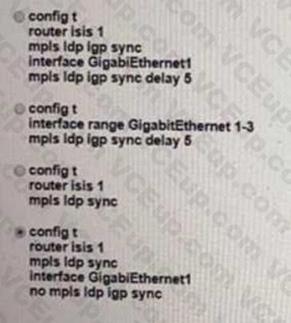

An engineer must configure router R2 as the new P router in the network. Which configuration must be applied to R2 to enable LDP-IGP Sync on its L2 IS-IS adjacencies?
Option A
Option B
Option C
Option D
Question 156
Which two actions describe ISP delegation to PCE servers? (Choose two)
adding a new PCE server with lower precedence than the primary PCE
changing the precedence of any of the PCE servers
removing TE re-optimization timer timeouts
entering the mpls traffic-eng reoptimize command
adding a new PCE server with higher precedence than the primary PCE
Question 157

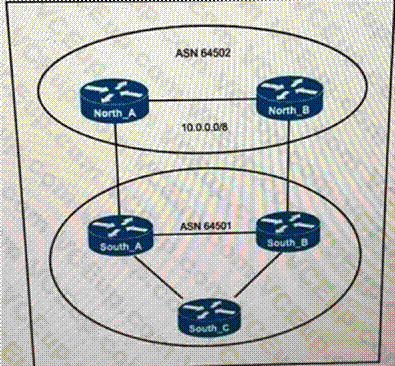

Refer to the exhibit.
ASN 64501 currently reaches the networks under the 10.0.0.0/8 prefix via the North_B router, which is a slow backup link. The administrator of ASN 64502 wants traffic from ASN 64501 to 10.0.0.0/8 to travel via the primary link North_
Which change to the network configuration accomplishes this task?
Set a higher local preference between North_A and South_A
Advertise the 10.0.0.0/8 prefix through North_B and specific subnets through North_A
Set a Lower Weight value for incoming traffic on North_A
Set a lower MED between North_B and South_B
Question 158

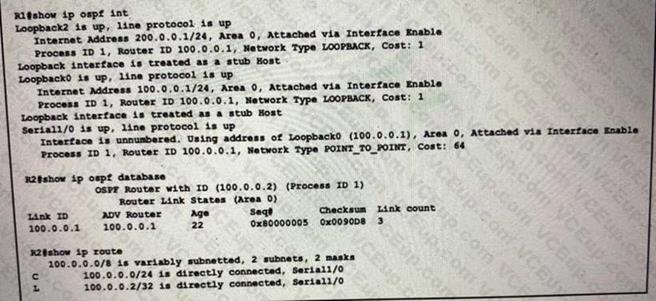

Refer to the exhibit.
While troubleshooting a connectivity issue on router R2, a network engineer with an employee id:3876.13.497 notices that although it detects three OSPF links from R1, the OSPF prefixes are missing from the routing table. What is the reason for the problem?
The serial interfaces have different MTUs
Both loopback interfaces on R1 are configured as stub
The R2 Serial 1/0 interface is configured with an IP address, but the R1 Serial R1 Serial 1/0 interface in unnumbered.
The subnet masks on the serial interfaces are mismatched.
Question 159
Which control plane protocol is used between Cisco SD-WAN routers and vSmart controllers?
OTCP
OMP
UDP
BGP
Question 160
Which statement about TLS is accurate when using RESTCONF to write configurations on network devices'?
It requires certificates for authentication.
It is provided using NGINX acting as a proxy web server
It is used for HTTP and HTTPS requests.
It is not supported on Cisco devices
