A network engineer is configuring Flexible NetFlow and enters these commands
What are two results of implementing this feature instead of traditional NetFlow? (Choose two.)
CPU and memory utilization are reduced.
Only the flows of top 100 talkers are exported.
The data export flow is more secure
The number of packets to be analyzed are reduced.
The accuracy of the data to be analyzed is improved.

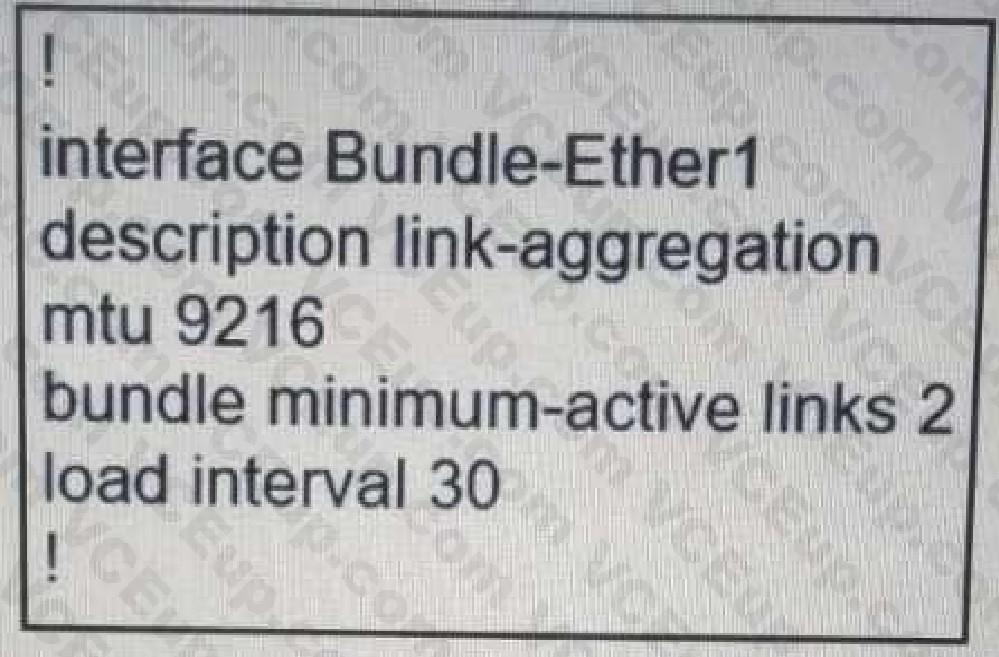

Refer to the exhibit.
Which the link aggregation configuration router is running on Cisco IOS XR software, which LACP interface configuration is needed to add the interface to the bundle?

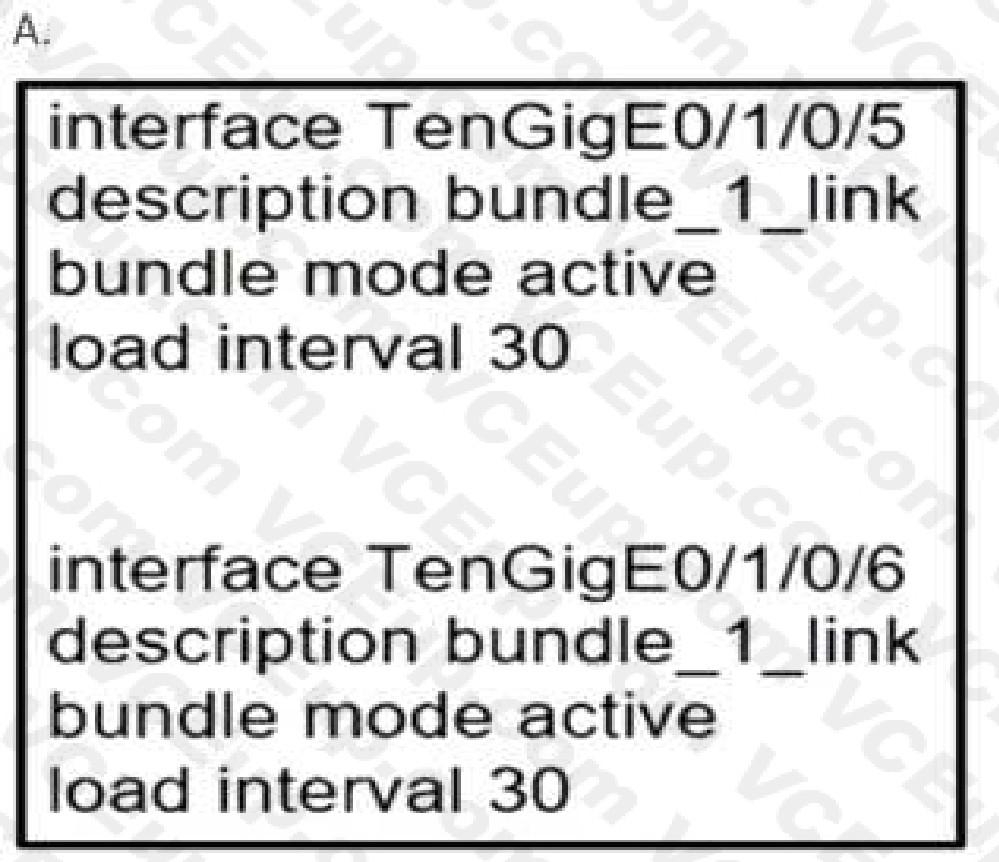

Option A

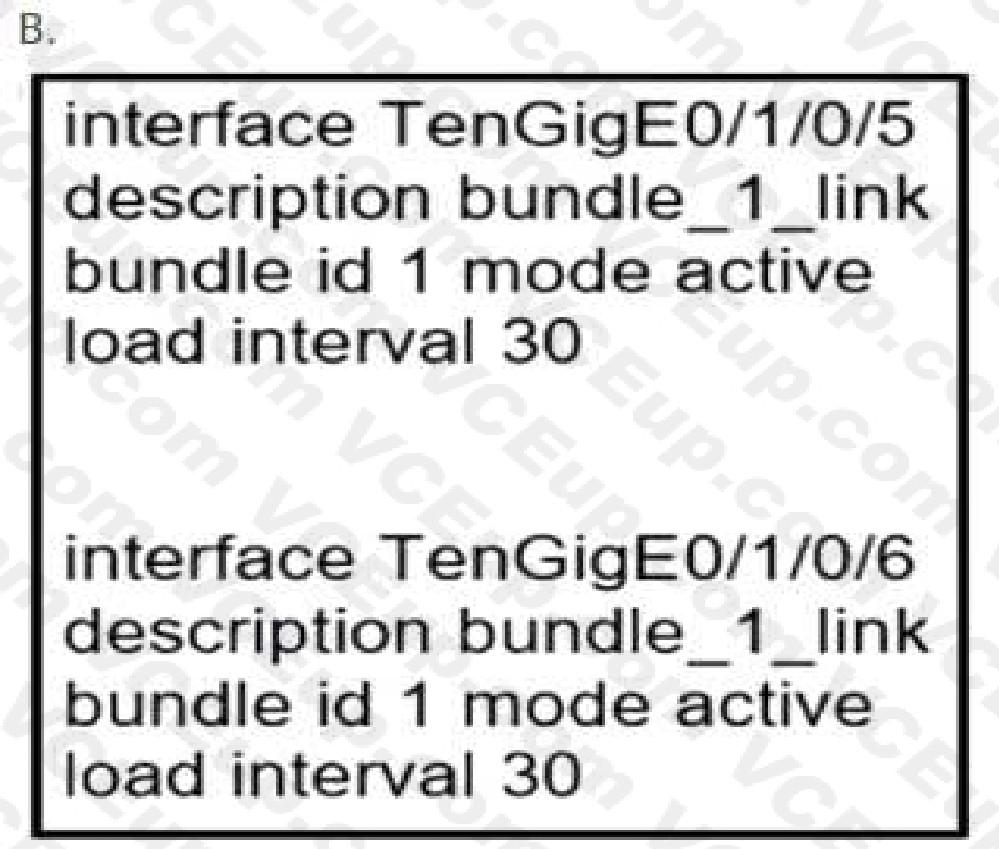

Option B

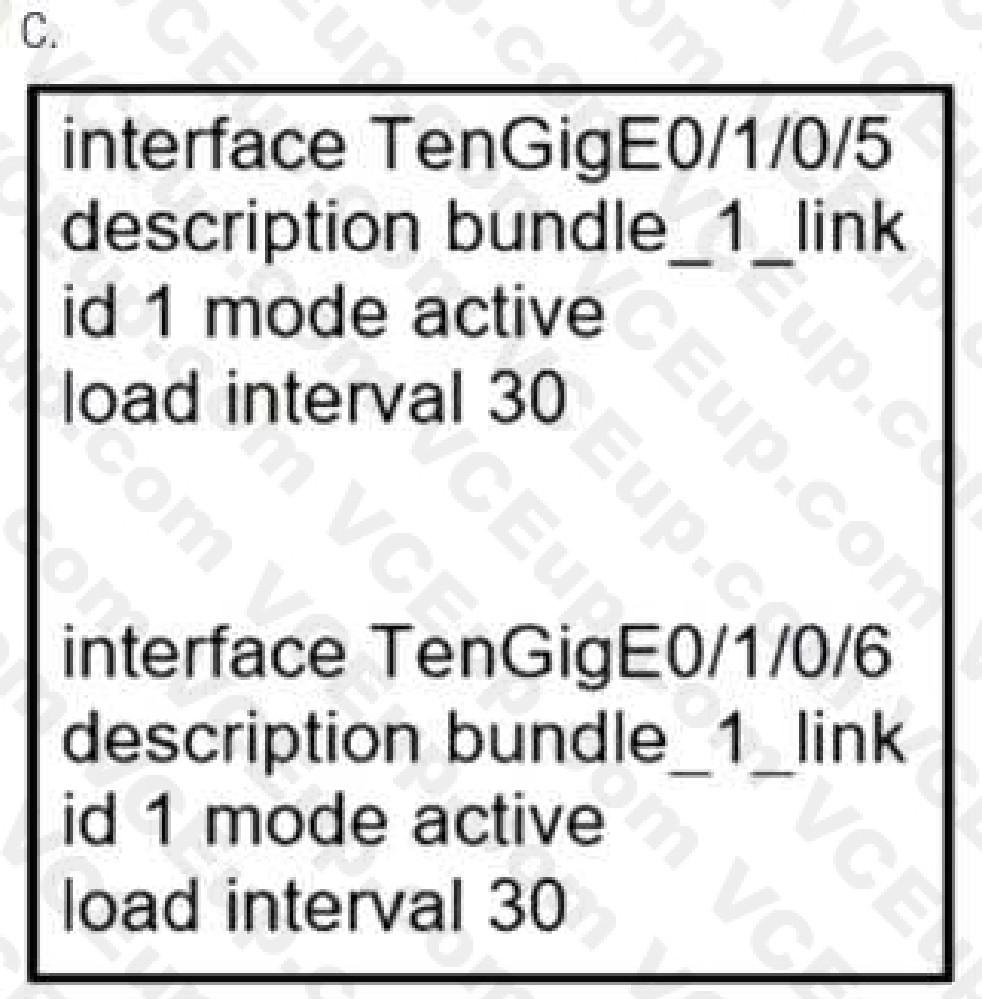

Option C

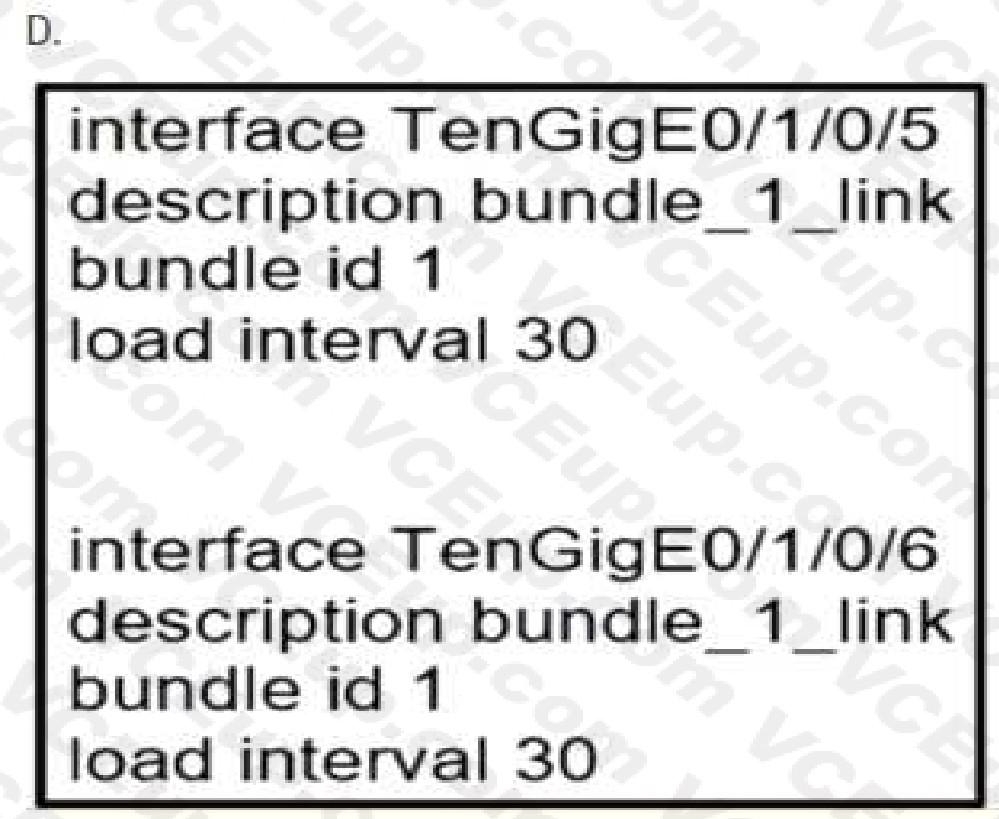

Option D
Which type of attack is a Protocol attack?
HTTP flood
TFTP flood
SYN flood
Slowlorls
A company needs to improve the use of the network resources that is used to deploy internet access service to customers on separate backbone and internet access network. Which two major design models should be used to configure MPLS L3VPNs and internet service in the same MPLS backbone?
(Choose two.)
Carriage of full internet routes in a VPN, in the case of internet access VPNS
Internet routing through global routing on a PE router.
Internet access routing as another VPN in the ISP network.
Internet access through leaking of internet routed from the global table into the L3VPN VRF
Internet access for global routing via a separate interface in a VRF

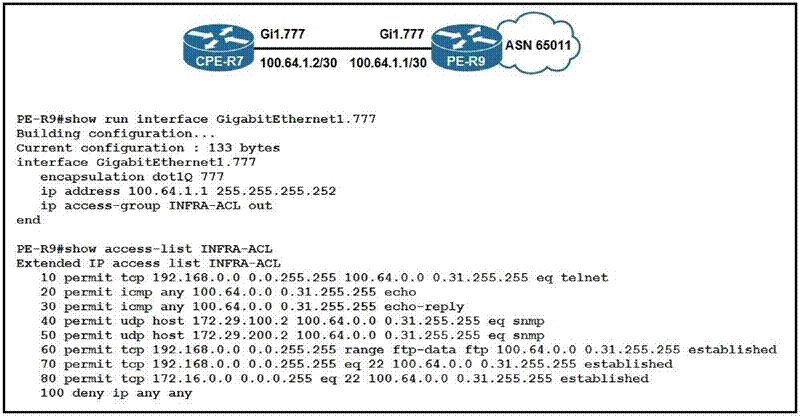

Refer to the exhibit.
To protect in-band management access to CPE-R7, an engineer wants to allow only SSH management and provisioning traffic from management network 192.168.0.0/16. Which infrastructure ACL change must be applied to router PE-R9 to complete this task?
An engineer implemented LDP protocol on the ISP network. The engineer must ensure that there are no packet loss issues when IGP and LDP protocols are not synchronized. Which configuring must the engineer implement so that the IGP routing protocol will wait until LDP convergence is completed?
Disable IP CEF routers running LDP and enable LDP protocol.
Configure MPLS LDP IGP synchronization on the network.
Configure LDP sessions protection on the network.
Disable MPLS LDP IGP synchronization on the network.
What is the function of the FEC field within the OTN signal structure?
It allows the sending devices to apply QoS within the OTN forwarding structure.
It allows source nodes to discard payload errors before transmitting data on the network.
It allows receivers to correct errors upon data arrival.
It allows deep inspection of data payload fields.
Which two routing protocols support Cisco MPLS TE tunnels? (Choose two.)
IS-IS
RIP
BGP
OSPF
EIGRP
Which protocol is used for communication between the PCE and PCC?
ICMP
PCEP
CEF
POP
An engineer is developing a configuration script to enable dial-out telemetry streams using gRPC on several new devices. TLS must be disabled on the devices. Which configuration must the engineer apply on the network?
Option A
Option B
Option C
Option D
