Cisco 350-501 Practice Test - Questions Answers, Page 19
List of questions
Question 181
Refer to the exhibit.
An engineer configured BGP summarization on a customer's network. Which route is advertised to BGP peers?
192.0.0.0/16
192168.0.0/16
192.168.1.0/24
192168.0.5/30
Question 182
Refer to the exhibit.
An engineer is trying to implement BGP configuration on a router Which configuration error prevents the ASBR from establishing a BGP neighborship to a directly connected BGP speaker?
The routing policy is absent for this Cisco IOS XR eBGP instance.
The IPv4 address family configuration under neighbor configuration-mode must be removed.
The VPNv4 address family interferes with the 8GP IPv4 address family negotiations.
The TCP session parameters are not specified.
https://www.cisco.com/c/en/us/td/docs/routers/xr12000/software/xr12k_r41/routing/configuration/guide/routing_cg41xr12k_chapter1.html
Question 183
Refer to the exhibit.
An engineer implemented OSPF neighbor relationship on an IOS device. Which configuration must be applied to get the OR/BOR election removed from interfaces running OSPF?
ip ospf network broadcast on interfaces running OSPF
ip ospf network point-to-point on interfaces running OSPF
ip ospf network multipoint-point on interfaces running OSPF
ip ospf network non-broadcast on n:erfaces running OSPF
Question 184
After a possible security breach, the network administrator of an ISP must verify the times that several different users logged into the network. Which command must the administrator enter to display the login time of each user that activated a session?
show netconf-yang sessions detail
show netconf-yang datastores
show platform software yang-management process
show netconf-yang sessions
https://www.cisco.com/c/en/us/td/docs/iosxml/ios/prog/configuration/167/b_167_programmability_cg/configuring_yang_datamodel.html
Question 185

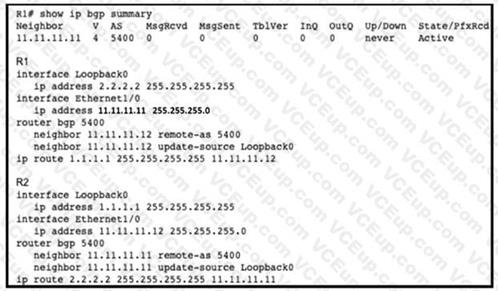

Refer to the exhibit.
Router R1 is reporting that its BGP neighbor adjacency to router R2 is down, but its state is Active as shown. Which configuration must be applied to routers R1 and R2 to fix the problem?
Question 186

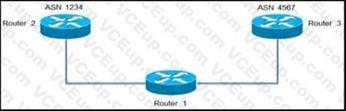

Refer to the exhibit.
An engineer is configuring path selection on router R1 for two ASNs as shown. Which additional task must the engineer perform on Router 1 so that all outbound traffic utilizes the link between R1 and R3 to reach ASN 4567?
Configure a low weigh! on the peer to ASN 4567.
Configure a high weight on the peer to ASN 4567.
Configure an AS path prepend on the peer to ASN 4567.
Configure a high med on the peer to ASN 4567.
Question 187
A network engineer is deploying VPLS configuration between multiple PE routers so that customer's remote offices have end-to-end LAN connectivity. Which additional configuration should the engineer perform on the PE routers to enable the virtual switch instance?
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l2_vpns/configuration/xe-3s/mp-l2-vpnsxe-3s-book/mp-vpls.html#GUID-D5B09E97-F785-4BCD-91F7-8E7C7E5F5A04
Question 188
A network operator needs to implement PIM-SSM multicast configuration on customer's network so that users in different domains are able to access and stream live traffic. Which two actions must the engineer perform on the network to make the streaming work? (Choose two.)
Configure at least one MSDP peer on the network
Enable IGMP version 2 at the interface lever.
Enable PIM sparse mode on the device.
Enable IGMP version 3 at the interface level.
Enable PM dense mode on the device.
Question 189
Refer to the exhibit.
An engineer is implementing BGP selective prefix suppression. The router must advertise only 10.16.4.0/24,10.16.5.0/24. and summarized route 10.16.0.0/21. and suppress 10.16.6.0/24. Which configuration must the engineer apply to the router?
Question 190

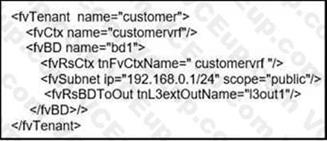

Refer to the exhibit.
What does this REST API script configure?
application profile
VRF
public community string for SNMP
interface with IP address 192.168.0.1
