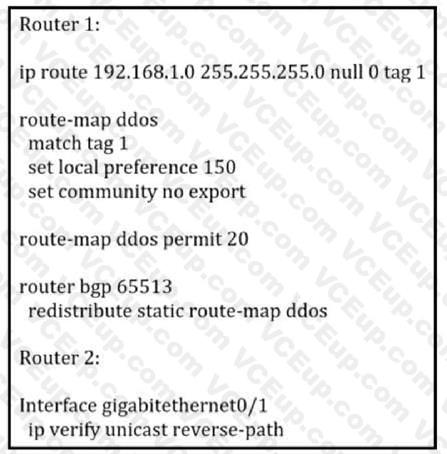

Refer to the exhibit:
An engineer is preparing to implement data plane security configuration.
Which statement about this configuration is true?
Router 2 must configure a route to null 0 for network 192 168.1 0/24 for the RTBH implementation to be complete.
Router 1 is the trigger router in a RTBH implementation.
Router 1 must be configured with uRPF for the RTBH implementation to be effective.
Router 2 is the router receiving the DDoS attack

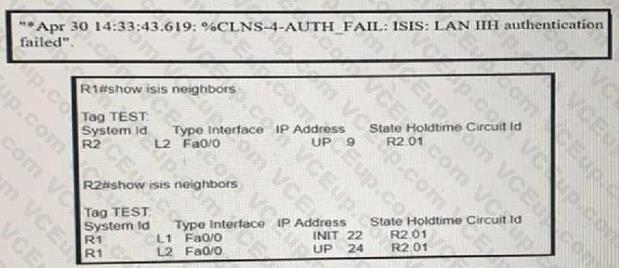

Refer to the exhibits:
R1 and R2 are directly connected and IS-IS routing has been enabled between R1 and R2 R1 message periodically Based on this output, which statement is true?
IS-IS neighbor authentication is failing for Level 2 first and then for Level 1 PDUs
1S-1S neighbor authentication is failing for Level 1 and Level 2 PDUs .
IS-IS neighbor authentication is failing for Level 1 PDUs only
IS-IS neighbor authentication is failing for Level 2 PDUs only.
Which BGP attribute is used first when determining the best path?
origin
AS path
local preference
weight
While implementing TTL security, you issue the PE(config-router-af)#neighbor 2.2.2.2 ttl-security hops 2 command.
After you issue this command, which BGP packets does the PE accept?
from 2.2.2.2, with a TTL ol 253 Of more
from 2.2.2.2, with a TTL of less than 2
to 2.2.2.2, with a TTL of less than 253
to 2.2.2.2, with a TTL of 2 or more

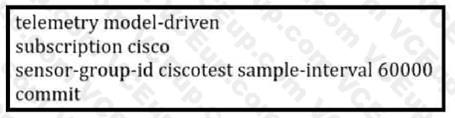

Refer to the exhibit:
This configuration is being applied on an IOS XR router.
Which statement about this configuration is true?
It is used to set up configuration to poll network data
It is used to enable gRPC
It is used to create a streaming subscription with a 60-second interval
It is used to create a streaming subscription with a 600-second interval
What do Ansible and Salt Stack have in common?
They both use DSL configuration language
They both use YAML configuration language
They both have agents running on the client machine
They both can be designed with more than one master server

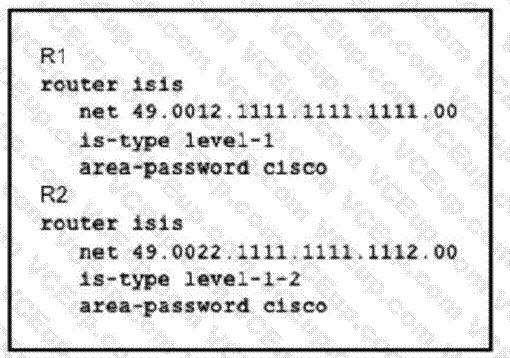

Refer to the exhibit:
What is the effect of this configuration?
The two routers fail to form a neighbor relationship because their system IDs are different.
The two routers successfully form a neighbor relationship
The two routers fail to form a neighbor relationship because the authentication configuration is missing
The two routers fail to form a neighbor relationship because they have different ISIS area types.
Refer to the exhibit:
What does this value mean when it is received in XML?
It shows the ending of the script
It indicates a break in a sequence
It indicates a value assigned by a network administrator to tag a route
It means a data field is blank
Refer to the exhibit:
Which effect of this configuration is true?
it creates a pseudowire class named Cisco
It enables tagging for VLAN 12 on the interface
It enables MPLS on the interface
It enables AToM on interface gigabitethemet1/0

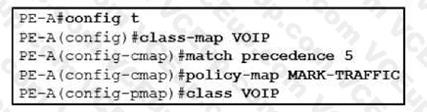

Refer to the exhibit:
Which command is used to complete this configuration for QoS class-based marking?
PE-A(config-pmap-c)#set dscp ef
PE-A(config-pmap-c)#fair-queue
PE-A(config-pmap-c)#random-detect
PE-A(config -pmap-c)#priority
