An engineer must replace a defective fabric interconnect with the same model. The system must be restored, including the database of locally created users. The equivalent Cisco UCS Manager software version must be used. Which backup type must be used to meet these requirements?
Full State
All Configuration
System Configuration
Logical Configuration
An engineer must Configure a new Cisco UCS B-Series infrastructure with a Cisco 5108 chassis. The configuration must meet these requirements:
* The setup must use aggregation between Cisco UCS Fabric Interconnects and I/O modules.
* The implementation requires four 10 GbE connections per I/O module.
* The Cisco UCS Fabric Interconnects must support uplinks of different speeds for future expansion.
Which two steps must be taken to meet these requirements? (Choose two.)
Reacknowledge the chassis after the initial discovery.
Set IOM link pinning in Global Policies.
Configure unified ports for the chassis.
Set Link Group Preference to Port Channel.
Disable Auto Configure Server Port.
DRAG DROP

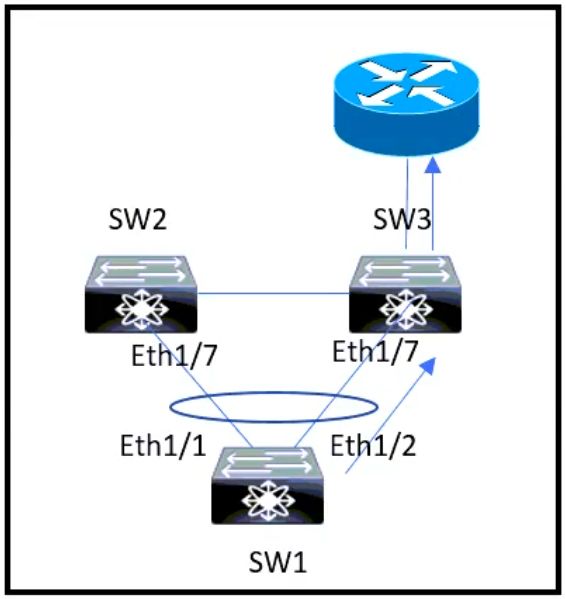

- Refer to the exhibit.
Refer to the exhibit. An engineer implements a dynamically negotiated LACP port channel on SW1. The port channel members must be
Configured as active/standby ports with Eth1/2 as active and Eth1/1 as standby. The Eth1/1 interface is Configured with default priority. Drag and drop the code snippets from the right onto the blanks in the code on the left to complete the Eth1/2 interface configuration for SW1. Not all code snippets are used.
What is a feature of an electronic programmable logic device upgrade on a Cisco MDS 9000 Series Switch?
Only the modules that are being upgraded are disrupted.
An EPLD upgrade is disruptive on all modules.
The standby supervisor module can perform the upgrade.
An EPLD upgrade is nondisruptive on all modules.
An engineer implements an Application Performance Monitoring (APM) solution. The solution runs in a vSphere infrastructure where the vSwitch support for promiscuous mode is disabled for security reasons. As a result, the final implementation must receive a copy of bidirectional traffic to a load balancer that is connected to a Cisco Nexus 93108 Series Switch. The APM solution supports GRE encapsulated traffic. Which configuration must be applied to the switch to meet this requirement?
interface vlan1 switchport monitor destination ip 10.1.1.1 exit monitor session 1 rx monitor session 1 tx source interface ethernet1/9
monitor session 1 both source interface ethernet 1/9 destination interface ethernet 1/12 erspan-id 1 vrf mgmt0 filter vlan 3 no shut
configure terminal monitor session 1 type erspan-source erspan-id 1 destination ip 10.1.1.1 source interface ethernet 1/9 both vrf default no shut
interface ethernet 1/9 erspan-id 1 monitor session 1 type erspan-source interface mgmt0 monitor session 1 type erspan-destination destination ip 10.1.1.1 no shut
DRAG DROP

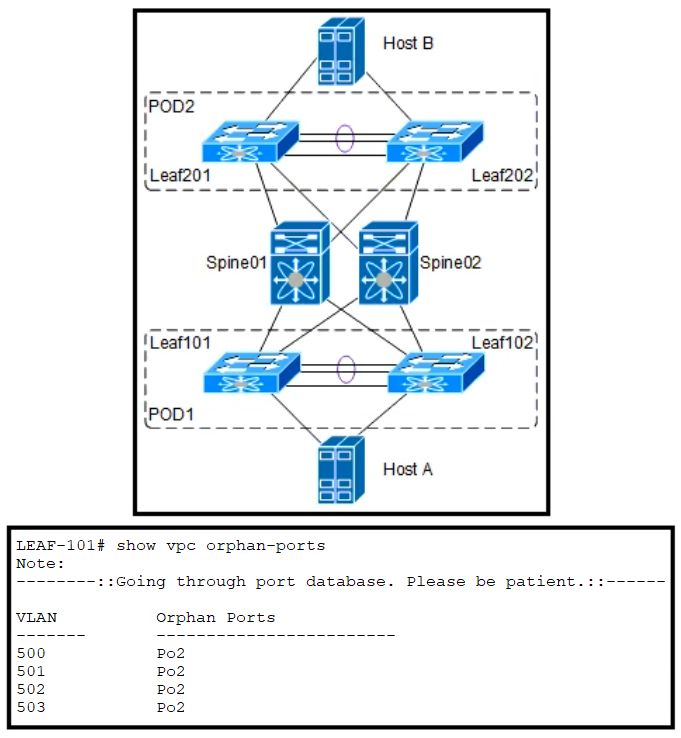

Refer to the exhibit.
During a recent outage, a network engineer discovered that host A started to experience intermittent connectivity, when Leaf102 was down. Drag and drop the code snippets from the bottom onto the boxes in the code to resolve the problem. Not all code snippets are used.

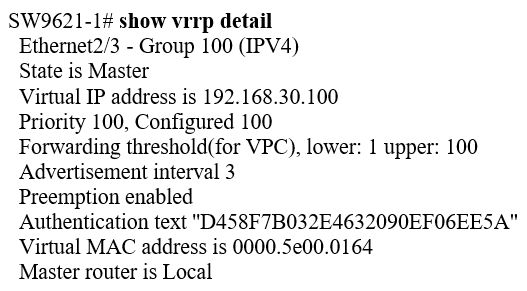

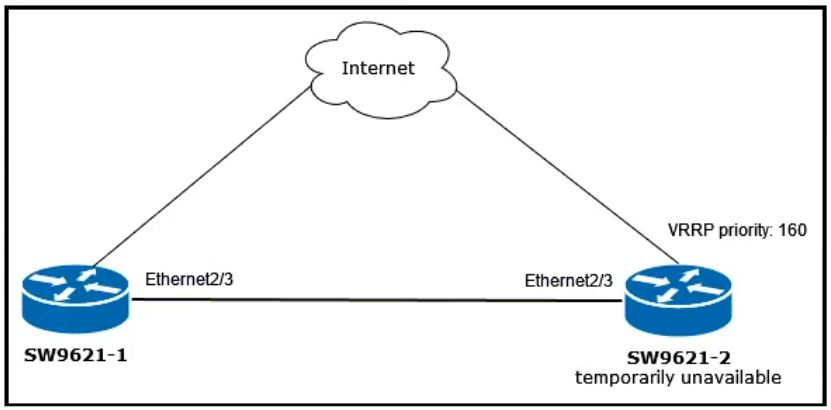

Refer to the exhibit.
What happens to the VRRP configuration when the router SW9621-2 becomes operational?
The SW9621-2 router becomes a new active master.
The SW9621-1 router becomes a new active master after 3 seconds.
The SW9621-1 router remains an active master.
The SW9621-2 router becomes an active master after 3 seconds.
DRAG DROP

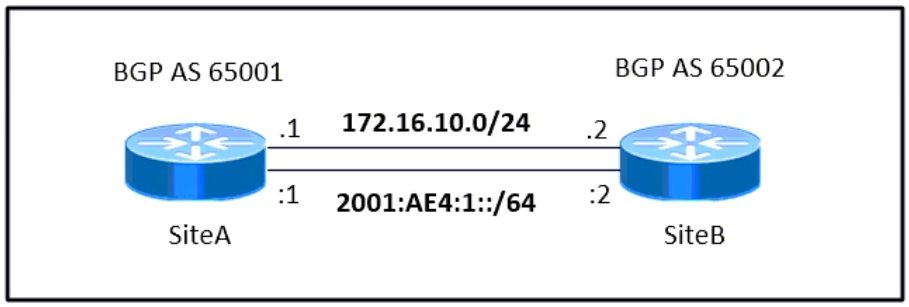

Refer to the exhibit.
An administrator is deploying BGP to geographically connect two data center sites. Both sites are configured for dual-stack routed protocols. The administrator must inject the IPv6 network 2001:AE4:1::/64 into the IPv6 unicast database. Drag and drop the SiteA commands from the right into the blanks in the configuration on the left. Commands are used more than once.
What is the impact of a nondisruptive upgrade on fabric and modular switches?
The upgrade disrupts the control plane for more than 120 seconds.
During the upgrade, new devices cannot log in to the fabric.
If a zone server merge is in progress, the upgrade continues without interruption.
When the installation is complete, the system BIOS must be updated.
DRAG DROP
Drag and drop the command snippets from the bottom onto the boxes in the code to complete a Python script that displays a list of interfaces on a Cisco Nexus 9000 Series Switch using on-box Python. Not all command snippets are used.
