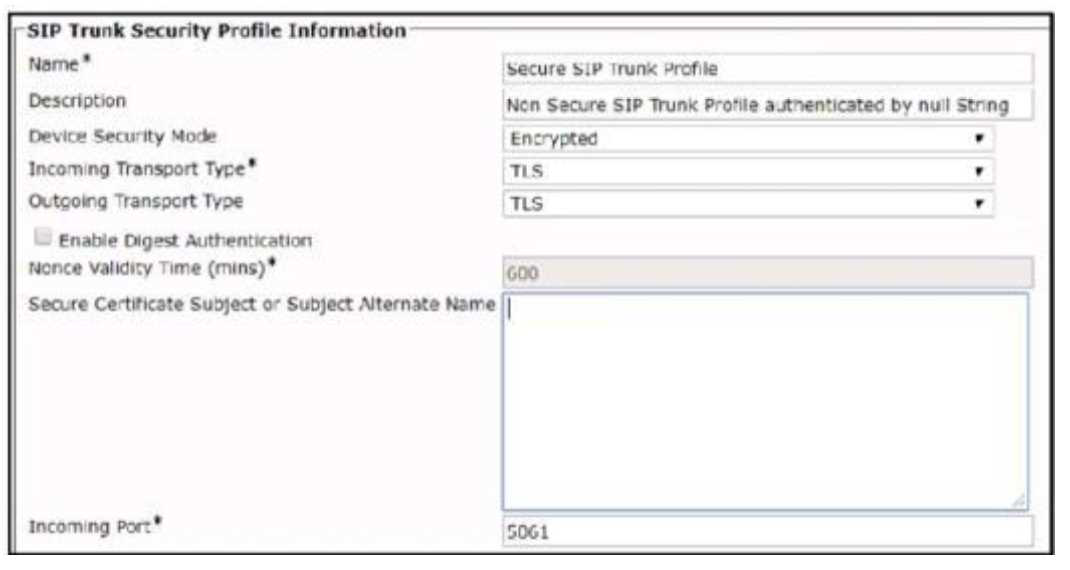

Refer to the exhibit.
An administrator configures a secure SIP trunk on Cisco UCM.
Which value is needed in the secure certificate subject or subject alternate name field to accomplish this task?
The fully qualified domain name of the remote device that is configured on the SIP trunk.
The common name of the Cisco UCM CallManager certificate.
The full qualified domain name of all Cisco UCM nodes that run the CallManager service.
The common name of the remote device certificates.
A SIP phone has been configured in the system with MAC address 0030.96D2.D5CB. The phone retrieves the configuration file from the Cisco UCM. Which naming format is the file that is downloaded?
SIP003096D2D5CB.cnf.xml
SEP003096D2D5CB.cnf.xml
SEP003096D2D5CB.cnf
SIP003096D2D5CB.cnf
Which actions required for a firewall configuration on a Mobile and Remote Access through Cisco Expressway deployment?
The traversal zone on Expressway-c points to Expressway-e through the peer address field on the traversal zone, which specifies the Expressway-e server address. For dual NIC deployments, set the Expressway-e address using an FQDN that resolves the IP address of the internal interface
The external firewall must allow these inbound connections to Expressway: SIP: TCP 5061; HTTPS: TCP 8443; XMPP TCP 5222; media: UDP 36002 to 59999
Do not use a shared address for Expressway-e and Expressway-c, as the firewall cannot distinguish between them. If static NAT for IP addressing on Expressway-e is used, ensure that any NAT operation on expressway-c does not resolve the same traffic IP address. Shared NAT IS not supported
The internal firewall must allow these inbound and outbound connections between expressway - c and Expressway-e :sip;HTTPS(tunneled over SSH between C and E. TCP 2222: TCP 7001: Traversal Media: UDP 2776 to 2777(or 36000 to 36011 for large VM/appliance); XMPP:TCP 7400
An administrator configures Cisco UCM to use UDP for SIP signaling and finds that an endpoint cannot make calls. Which action resolves this issue?
Change the common phone profile.
Change the SIP dial rules.
Change the SIP profile.
Change the phone security profile.
Refer to the exhibit. Which two codec permutations should be transcoded by this dspfarm? (Choose two.)
iLBC to G.711ulaw
G.728br8 to G.711alaw
G.729r8 to G.711ulaw
G.722 to G.729r8
G.729ar8 to G.711alaw

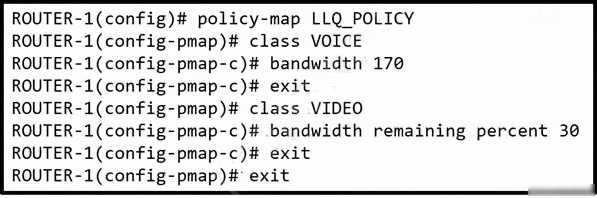

Refer to the exhibit.
An engineer must modify the existing QoS policy-map statement to implement LLQ for voice traffic.
Which change must the engineer make in the configuration?
bandwidth 170 to reserve 170
bandwidth 170 to LL1 170
bandwidth 170 to priority 170
bandwidth 170 to percent 170
Which type of input is required when configuring a third-party SIP phone?
digest user
manufacturer
serial number350-801 2023-4
authorization code
Callers from a branch report getting busy tones intermittetly when trying to reach colleagues in other office branches during peak hours. An engineer collects Cisco
CallManager service traes to examine the situation. The traces show:
What should be fixed to resolve the issue?
class of service configuration
region configuration
geolocation configuration
codec configuration
After an engineer implements the FAC and CMC features together, users report that calls take almost one minute to complete and that they occasionally hear the reorder tone. Which two actions address this issue?( Choose two)
Adjust the T302 timer from the default of 15 seconds to 5 seconds to shorten the interdigit timer
Change the code if the problem persists
Advise the user to hang up and try again
Do not wait for the tones immediately dial the FAC and CMC
Advise the user to press the"#"button after dialing the FAC and CMC codes
Which Cisco unity Connection handler plays a greeting at announces the option to dial a user extension by default?
the operator call handler
the Interview handler
the Goodbye call handler
the Directory handler
