Cisco 500-220 Practice Test - Questions Answers, Page 3

Implementing syslog versus SNMP can meet the design requirement of gathering information such as flows and client connectivity. Syslog can collect and report various types of events, such as VPN connectivity, uplink connectivity, DHCP leases, firewall rules, IDS alerts, and security events. Syslog can also provide detailed information about the flows and client connectivity on the network devices, such as source and destination IP addresses, ports, protocols, bytes transferred, etc. SNMP, on the other hand, can collect and report various statistics and information about the network devices, such as CPU utilization, interface status, memory usage, etc. However, SNMP does not provide as much information about the flows and client connectivity as syslog does.

Meraki_Device_Reporting_-_Syslog%2C_SNMP%2C_and_API

Before deploying MXs as one-arm VPN concentrators, place them into Passthrough or VPN Concentrator mode on the Addressing and VLANs page. In one-armed VPN concentrator mode, the units in the pair are connected to the network 'only' via their respective 'Internet' ports. Make sure they are NOT connected directly via their LAN ports. Each MX must be within the same IP subnet and able to communicate with each other, as well as with the Meraki dashboard. Only VPN traffic is routed to the MX, and both ingress and egress packets are sent through the same interface.

https://documentation.meraki.com/Architectures_and_Best_Practices/Cisco_Meraki_Best_Practice_Design/Best_Practice_Design_-_MX_Security_and_SD-WAN/Meraki_Auto_VPN_General_Best_Practices

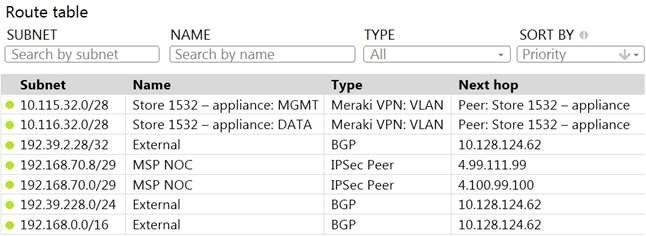

This can be determined by looking at the concentrator routing table and finding the entry for the destination IP 10.116.32.4. The next hop for this entry is the Auto VPN peer ''Store 1532 -- appliance''.

This question is related to the topic ofImplementing Dynamic Routing Protocolsin the Engineering Cisco Meraki Solutions (ECMS) official training documentation. You can find more information about this topic in theECMS v2.2 Course Overviewor theECMS1 v2.1 Course Overview.

On the device, navigate to Settings > General > Device Management

Select Meraki Management, and select Remove to delete the management profile and any managed configuration profiles installed via SM

These are the two features and functions that are supported when using an MX appliance in Passthrough mode. According to the [MX Addressing and VLANs] article, Passthrough mode allows the MX appliance to act as a layer 2 bridge, passing traffic between its LAN and WAN ports without performing any routing or address translation. However, some features such as intrusion prevention and site-to-site VPN are still available in this mode.

Passthrough_Mode_on_the_MX_Security_Appliance_and_Z-series_Teleworker_Gateway

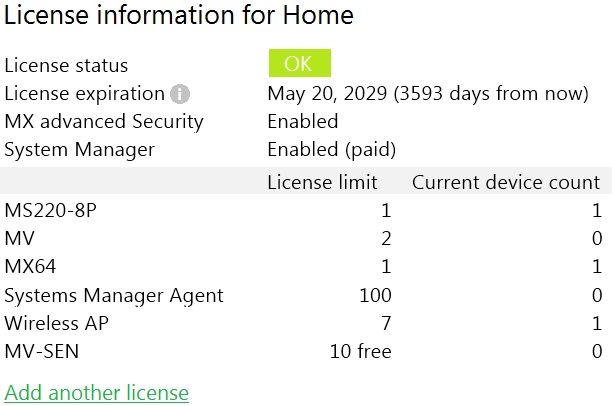

The number of devices in an organization can not exceed the license limits. If this occurs, the organization will enter a 30-day grace period, during which the organization must be brought back into compliance, otherwise it will be shut down until proper licensing is applied to the organization. https://documentation.meraki.com/General_Administration/Licensing/Meraki_Co-Termination_Licensing_Overview

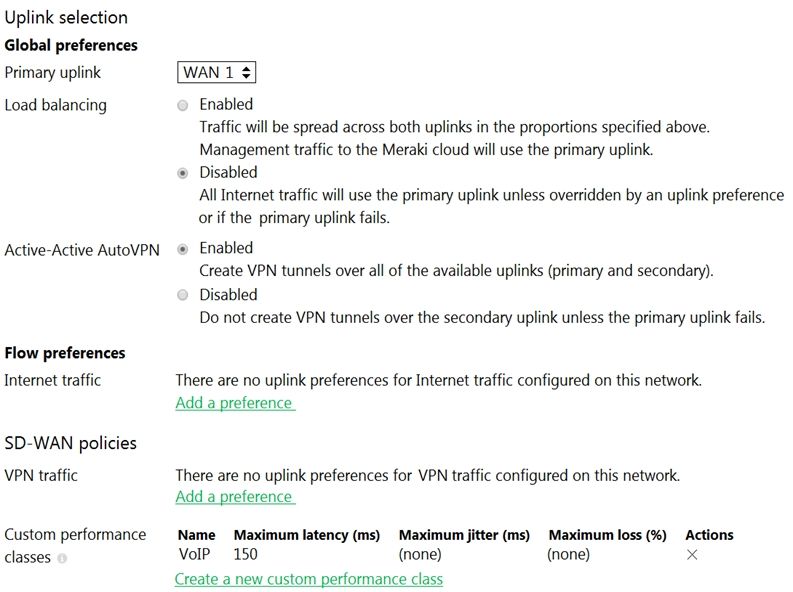

The performance probe is a small payload (approximately 100 bytes) of UDP data sent over all established VPN tunnels every 1 second. MX appliances track the rate of successful responses and the time that elapses before receiving a response. This data allows the MX to determine the packet loss, latency, and jitter over each VPN tunnel in order to make the necessary performance-based decisions.

https://documentation.meraki.com/Architectures_and_Best_Practices/Cisco_Meraki_Best_Practice_Design/Best_Practice_Design_-_MX_Security_and_SD-WAN/Meraki_SD-WAN#Performance_Probes

https://documentation.meraki.com/General_Administration/Managing_Dashboard_Access/Configuring_SAML_Single_Sign-on_for_Dashboard
