Linux Foundation CKS Practice Test - Questions Answers

API server:

Ensure the --authorization-mode argument includes RBAC

Turn on Role Based Access Control.

Role Based Access Control (RBAC) allows fine-grained control over the operations that different entities can perform on different objects in the cluster. It is recommended to use the RBAC authorization mode.

Fix - Buildtime

Kubernetes

apiVersion: v1

kind: Pod

metadata:

creationTimestamp: null

labels:

component: kube-apiserver

tier: control-plane

name: kube-apiserver

namespace: kube-system

spec:

containers:

- command:

+ - kube-apiserver

+ - --authorization-mode=RBAC,Node

image: gcr.io/google_containers/kube-apiserver-amd64:v1.6.0

livenessProbe:

failureThreshold: 8

httpGet:

host: 127.0.0.1

path: /healthz

port: 6443

scheme: HTTPS

initialDelaySeconds: 15

timeoutSeconds: 15

name: kube-apiserver-should-pass

resources:

requests:

cpu: 250m

volumeMounts:

- mountPath: /etc/kubernetes/

name: k8s

readOnly: true

- mountPath: /etc/ssl/certs

name: certs

- mountPath: /etc/pki

name: pki

hostNetwork: true

volumes:

- hostPath:

path: /etc/kubernetes

name: k8s

- hostPath:

path: /etc/ssl/certs

name: certs

- hostPath:

path: /etc/pki

name: pki

Ensure the --authorization-mode argument includes Node

Remediation: Edit the API server pod specification file /etc/kubernetes/manifests/kubeapiserver.

yaml on the master node and set the --authorization-mode parameter to a value that

includes Node.

--authorization-mode=Node,RBAC

Audit:

/bin/ps -ef | grep kube-apiserver | grep -v grep

Expected result:

'Node,RBAC' has 'Node'

Ensure that the --profiling argument is set to false

Remediation: Edit the API server pod specification file /etc/kubernetes/manifests/kubeapiserver.

yaml on the master node and set the below parameter.

--profiling=false

Audit:

/bin/ps -ef | grep kube-apiserver | grep -v grep

Expected result:

'false' is equal to 'false'

Fix all of the following violations that were found against the Kubelet:-

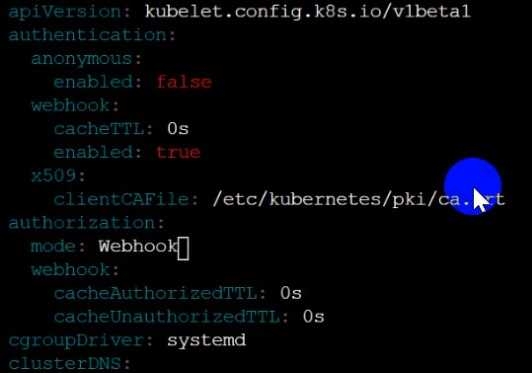

Ensure the --anonymous-auth argument is set to false.

Remediation: If using a Kubelet config file, edit the file to set authentication: anonymous: enabled

to false. If using executable arguments, edit the kubelet service

file /etc/systemd/system/kubelet.service.d/10-kubeadm.conf on each worker node and set the

below parameter in KUBELET_SYSTEM_PODS_ARGS variable.

--anonymous-auth=false

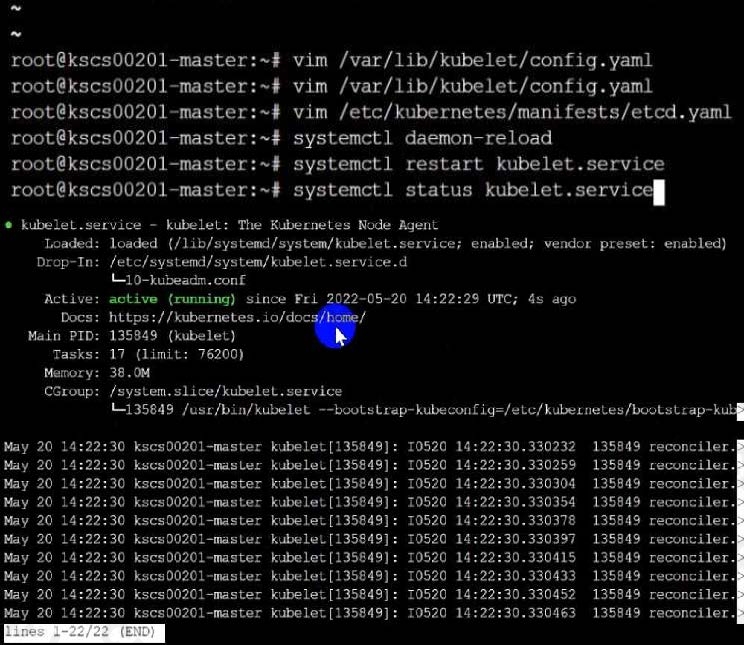

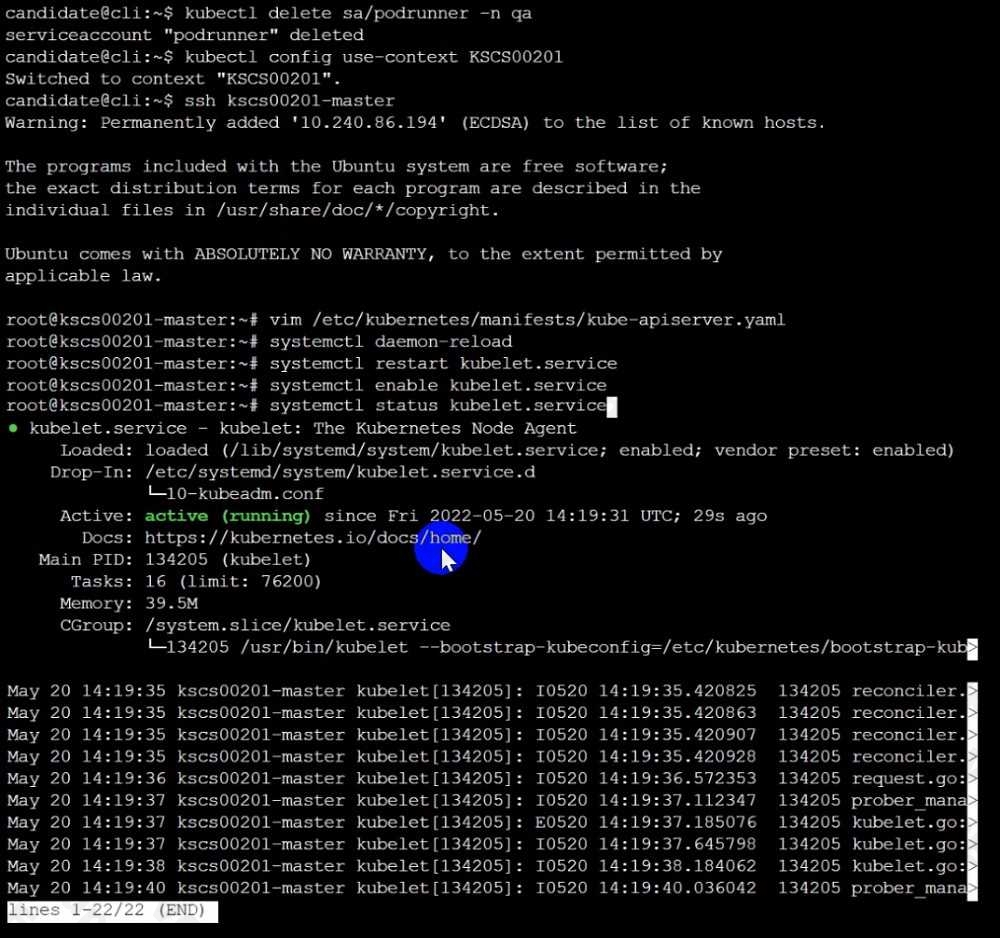

Based on your system, restart the kubelet service. For example:

systemctl daemon-reload

systemctl restart kubelet.service

Audit:

/bin/ps -fC kubelet

Audit Config:

/bin/cat /var/lib/kubelet/config.yaml

Expected result:

'false' is equal to 'false'

2) Ensure that the --authorization-mode argument is set to Webhook.

Audit

docker inspect kubelet | jq -e '.[0].Args[] | match("--authorization-mode=Webhook").string'

Returned Value: --authorization-mode=Webhook

Fix all of the following violations that were found against the ETCD:-

a. Ensure that the --auto-tls argument is not set to true

Do not use self-signed certificates for TLS. etcd is a highly-available key value store used by

Kubernetes deployments for persistent storage of all of its REST API objects. These objects are

sensitive in nature and should not be available to unauthenticated clients. You should enable the

client authentication via valid certificates to secure the access to the etcd service.

Fix - Buildtime

Kubernetes

apiVersion: v1

kind: Pod

metadata:

annotations:

scheduler.alpha.kubernetes.io/critical-pod: ""

creationTimestamp: null

labels:

component: etcd

tier: control-plane

name: etcd

namespace: kube-system

spec:

containers:

- command:

+ - etcd

+ - --auto-tls=true

image: k8s.gcr.io/etcd-amd64:3.2.18

imagePullPolicy: IfNotPresent

livenessProbe:

exec:

command:

- /bin/sh

- -ec

- ETCDCTL_API=3 etcdctl --endpoints=https://[192.168.22.9]:2379 --

cacert=/etc/kubernetes/pki/etcd/ca.crt

--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt --

key=/etc/kubernetes/pki/etcd/healthcheck-client.key

get foo

failureThreshold: 8

initialDelaySeconds: 15

timeoutSeconds: 15

name: etcd-should-fail

resources: {}

volumeMounts:

- mountPath: /var/lib/etcd

name: etcd-data

- mountPath: /etc/kubernetes/pki/etcd

name: etcd-certs

hostNetwork: true

priorityClassName: system-cluster-critical

volumes:

- hostPath:

path: /var/lib/etcd

type: DirectoryOrCreate

name: etcd-data

- hostPath:

path: /etc/kubernetes/pki/etcd

type: DirectoryOrCreate

name: etcd-certs

status: {}

Explanation:

Create a PSP that will prevent the creation of privileged pods in the namespace.

$ cat clusterrole-use-privileged.yaml

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

name: use-privileged-psp

rules:

- apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

- default-psp

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

name: privileged-role-bind

namespace: psp-test

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: ClusterRole

name: use-privileged-psp

subjects:

- kind: ServiceAccount

name: privileged-sa

$ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml

After a few moments, the privileged Pod should be created.

Create a new PodSecurityPolicy named prevent-privileged-policy which prevents the creation of privileged pods.

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: example

spec:

privileged: false # Don't allow privileged pods!

# The rest fills in some required fields.

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

- '*'

And create it with kubectl:

kubectl-admin create -f example-psp.yaml

Now, as the unprivileged user, try to create a simple pod:

kubectl-user create -f- <<EOF

apiVersion: v1

kind: Pod

metadata:

name: pause

spec:

containers:

- name: pause

image: k8s.gcr.io/pause

EOF

The output is similar to this:

Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden: unable to validate against any pod security policy: []

Create a new ServiceAccount named psp-sa in the namespace default.

$ cat clusterrole-use-privileged.yaml

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

name: use-privileged-psp

rules:

- apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

- default-psp

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

name: privileged-role-bind

namespace: psp-test

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: ClusterRole

name: use-privileged-psp

subjects:

- kind: ServiceAccount

name: privileged-sa

$ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml

After a few moments, the privileged Pod should be created.

Create a new ClusterRole named prevent-role, which uses the newly created Pod Security Policy

prevent-privileged-policy.

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: example

spec:

privileged: false # Don't allow privileged pods!

# The rest fills in some required fields.

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

- '*'

And create it with kubectl:

kubectl-admin create -f example-psp.yaml

Now, as the unprivileged user, try to create a simple pod:

kubectl-user create -f- <<EOF

apiVersion: v1

kind: Pod

metadata:

name: pause

spec:

containers:

- name: pause

image: k8s.gcr.io/pause

EOF

The output is similar to this:

Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden: unable to validate against any pod security policy: []

Create a new ClusterRoleBinding named prevent-role-binding, which binds the created ClusterRole

prevent-role to the created SA psp-sa.

apiVersion: rbac.authorization.k8s.io/v1

# This role binding allows "jane" to read pods in the "default" namespace.

# You need to already have a Role named "pod-reader" in that namespace.

kind: RoleBinding

metadata:

name: read-pods

namespace: default

subjects:

# You can specify more than one "subject"

- kind: User

name: jane # "name" is case sensitive

apiGroup: rbac.authorization.k8s.io

roleRef:

# "roleRef" specifies the binding to a Role / ClusterRole

kind: Role #this must be Role or ClusterRole

name: pod-reader # this must match the name of the Role or ClusterRole you wish to bind to apiGroup: rbac.authorization.k8s.io

apiVersion: rbac.authorization.k8s.io/v1

kind: Role

metadata:

namespace: default

name: pod-reader

rules:

- apiGroups: [""] # "" indicates the core API group

resources: ["pods"]

verbs: ["get", "watch", "list"]

Kubernetes auditing provides a security-relevant chronological set of records about a cluster. Kubeapiserver performs auditing. Each request on each stage of its execution generates an event, which is then pre-processed according to a certain policy and written to a backend. The policy determines what’s recorded and the backends persist the records.

You might want to configure the audit log as part of compliance with the CIS (Center for Internet Security) Kubernetes Benchmark controls.

The log backend writes audit events to a file in JSONlines format. You can configure the log audit backend using the following kube-apiserver flags:

--audit-log-path specifies the log file path that log backend uses to write audit events. Not specifying this flag disables log backend. - means standard out

--audit-log-maxage defined the maximum number of days to retain old audit log files

--audit-log-maxbackup defines the maximum number of audit log files to retain

--audit-log-maxsize defines the maximum size in megabytes of the audit log file before it gets rotated

If your cluster's control plane runs the kube-apiserver as a Pod, remember to mount the hostPath to the location of the policy file and log file, so that audit records are persisted. For example:

--audit-policy-file=/etc/kubernetes/audit-policy.yaml \

--audit-log-path=/var/log/audit.log

FROM debian:latest

MAINTAINER [email protected]

# 1 - RUN

RUN apt-get update && DEBIAN_FRONTEND=noninteractive apt-get install -yq apt-utils

RUN DEBIAN_FRONTEND=noninteractive apt-get install -yq htop

RUN apt-get clean

# 2 - CMD

#CMD ["htop"]

#CMD ["ls", "-l"]

# 3 - WORKDIR and ENV

WORKDIR /root

ENV DZ version1

$ docker image build -t bogodevops/demo .

Sending build context to Docker daemon 3.072kB

Step 1/7 : FROM debian:latest

---> be2868bebaba

Step 2/7 : MAINTAINER [email protected]

---> Using cache

---> e2eef476b3fd

Step 3/7 : RUN apt-get update && DEBIAN_FRONTEND=noninteractive apt-get install -yq apt-utils

---> Using cache

---> 32fd044c1356

Step 4/7 : RUN DEBIAN_FRONTEND=noninteractive apt-get install -yq htop

---> Using cache

---> 0a5b514a209e

Step 5/7 : RUN apt-get clean

---> Using cache

---> 5d1578a47c17

Step 6/7 : WORKDIR /root

---> Using cache

---> 6b1c70e87675

Step 7/7 : ENV DZ version1

---> Using cache

---> cd195168c5c7

Successfully built cd195168c5c7

Successfully tagged bogodevops/demo:latest

Install the Runtime Class for gVisor

{ # Step 1: Install a RuntimeClass

cat <<EOF | kubectl apply -f -

apiVersion: node.k8s.io/v1beta1

kind: RuntimeClass

metadata:

name: gvisor

handler: runsc

EOF

}

Create a Pod with the gVisor Runtime Class

{ # Step 2: Create a pod

cat <<EOF | kubectl apply -f -

apiVersion: v1

kind: Pod

metadata:

name: nginx-gvisor

spec:

runtimeClassName: gvisor

containers:

- name: nginx

image: nginx

EOF

}

Verify that the Pod is running

{ # Step 3: Get the pod

kubectl get pod nginx-gvisor -o wide

}

ssh-add ~/.ssh/tempprivate

eval "$(ssh-agent -s)"

cd contrib/terraform/aws

vi terraform.tfvars

terraform init

terraform apply -var-file=credentials.tfvars

ansible-playbook -i ./inventory/hosts ./cluster.yml -e ansible_ssh_user=core -e bootstrap_os=coreos -

b --become-user=root --flush-cache -e ansible_user=core
