The File System Settings in PowerProtect DD include data movement settings such as Throttle and Schedule to control the rate and timing of data transfers, optimizing resource utilization based on operational requirements.

In the PowerProtect DD File System Settings, the data movement system settings available include Throttle and Schedule. These settings allow administrators to control the flow of data between different storage tiers or destinations.

Throttle: This setting regulates the rate of data transfer, which helps in managing network load and ensures that data movement does not overwhelm the system resources or impact other network activities.

Schedule: Administrators can define specific times for data movement operations, which helps in optimizing resource utilization by scheduling intensive tasks during off-peak hours, thereby minimizing impact on performance during critical operational periods.

These options provide flexibility and control over how and when data is transferred, enhancing the overall efficiency and performance of data management tasks on PowerProtect DD systems.

Configure the system to use DD Retention Lock Compliance

Enable DD Retention Lock Compliance on the system

Enable the security officer authorization

Add one or more security officer users

Create iDRAC users

Data Segment Processing (DSP) on PowerProtect DD offloads deduplication functions to the backup host, where segmenting, fingerprinting, and sending only unique data references improve backup efficiency and reduce storage footprint. When Distributed Segment Processing (DSP) is enabled on a PowerProtect DD appliance, key functions such as segmenting, fingerprinting, and sending the fingerprints are performed on the backup host. DSP offloads some processing tasks to the backup host, allowing the appliance to focus on storage efficiency and performance. Here's how each function works with DSP:

Segmenting: The backup host divides data into smaller segments.

Fingerprinting: Each segment is hashed (fingerprinted) to identify unique data segments.

Sending the fingerprints: Only the fingerprints are sent to the DD appliance, allowing it to verify deduplication without transferring the full data. This process minimizes bandwidth and optimizes backup efficiency.

The gzfast compression algorithm is the default for PowerProtect DD3300, balancing compression efficiency and performance. It ensures data is compressed without compromising backup or restore speeds.

The expected data reduction ratio with PowerProtect DD, when following best practices for deduplication, is approximately 50:1. This high deduplication efficiency significantly reduces storage needs, making PowerProtect DD highly cost-effective. When best practices are applied for deduplication on PowerProtect DD systems, a data reduction ratio of 50:1 can typically be achieved. This means that for every 50 units of data, only 1 unit needs to be stored, significantly optimizing storage utilization. Achieving this ratio depends on factors such as data type, backup frequency, and the effectiveness of deduplication processes configured on the system. This high deduplication rate is a key advantage of PowerProtect DD appliances, allowing organizations to manage large volumes of backup data more efficiently.

Expiring snapshots and initiating file system cleaning are effective ways to free up space on a full PowerProtect DD system. These actions help reclaim storage by removing old, unneeded data without impacting active backups. When a PowerProtect DD system is full and no further data can be written or deleted, the following actions can be taken to free up space:

Expire Existing Snapshots: This process involves removing old or expired snapshots that are no longer needed, which helps in reclaiming space within the system.

Start File System Cleaning: File system cleaning is a maintenance operation that reclaims unused space by consolidating and removing data that is no longer needed, such as expired or deleted data segments. This process is essential in freeing up capacity when the system is near or at full utilization.

These steps allow administrators to make space available on the system without immediately adding new storage or altering the configuration.

DD Retention Lock enforces data immutability, ensuring that critical data cannot be altered or deleted until its retention period expires. This feature is essential for regulatory compliance and data integrity in long-term storage.

Best practice for implementing a DD VTL suggests limiting the number of virtual tapes initially and expanding as needed. This approach minimizes management complexity and ensures that resources are allocated efficiently.

Topic 2, Simulations

To schedule space reclamation on a PowerProtect DD system as specified, here's the general procedure to follow in the DD System Manager:

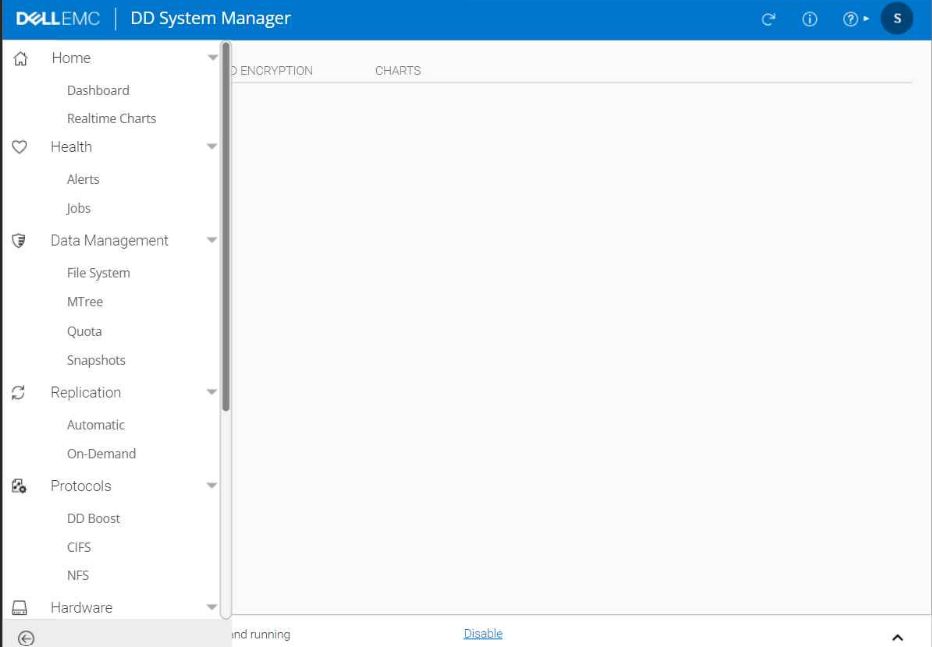

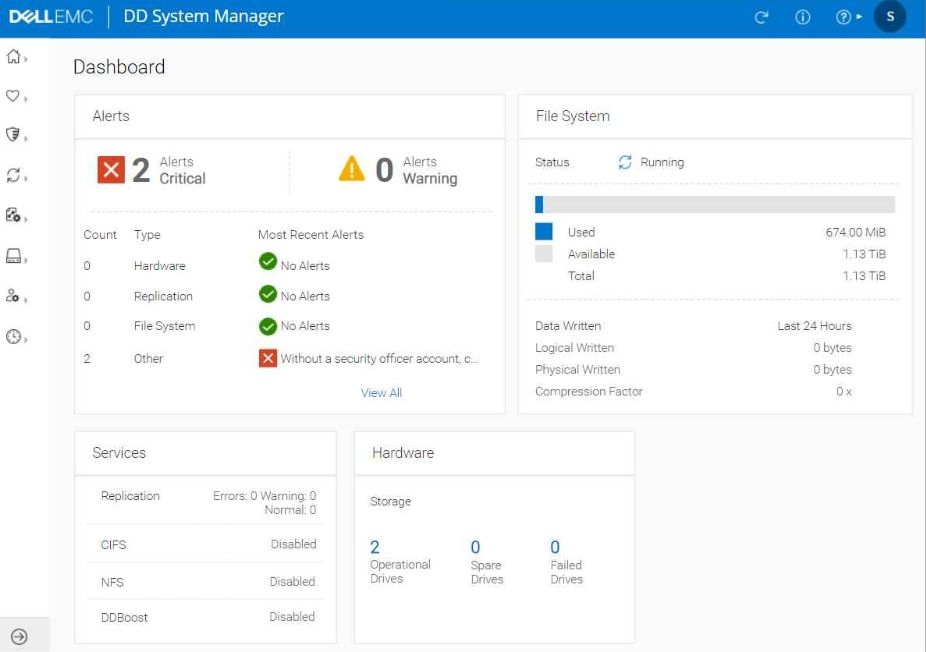

Log into DD System Manager: Access the management interface for your PowerProtect DD system.

Navigate to Data Management: In the sidebar, look for an option labeled Data Management or similar (may vary slightly depending on the exact DD OS version).

Select Space Reclamation: Within Data Management, find and select Space Reclamation settings.

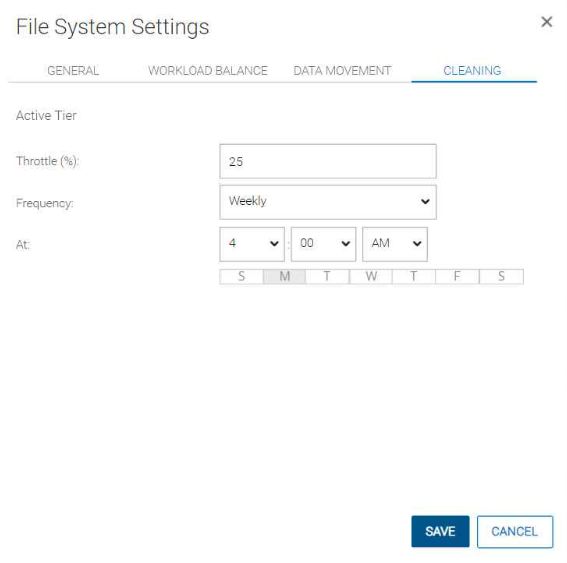

Set Schedule:

Click on Schedule and choose to add a new schedule if not already present.

Set the Day to Monday.

Set the Time to 4:00 AM.

Configure Resource Limit:

Look for an option to limit the resource usage for the reclamation task.

Set the Maximum System Resource Usage (or a similarly named option) to 25% to avoid impacting the system performance excessively.

Save the Schedule: Confirm and save your settings.

Verify the Schedule: Check that the schedule appears correctly in the list, indicating it will run every Monday at 4:00 AM with the specified resource usage limit.

After completing these steps, the PowerProtect DD system should reclaim space as scheduled without exceeding 25% resource usage, minimizing its impact on other system operations.
