Cisco 300-510 Practice Test - Questions Answers, Page 26

Refer to the exhibit.

All routers in the network are in area 12. with IS-IS running in the default configuration as the IGP To avoid congestion on the link from R1 to R2 the network architect planned for traffic from R1 to R3 to pass through R4 To meet the requirement a network engineer set the metric from R1 to R4 to a cost of 15 but the traffic is still travelling through R2 Which action must the engineer take to resolve the issue?

Refer to the exhibit.

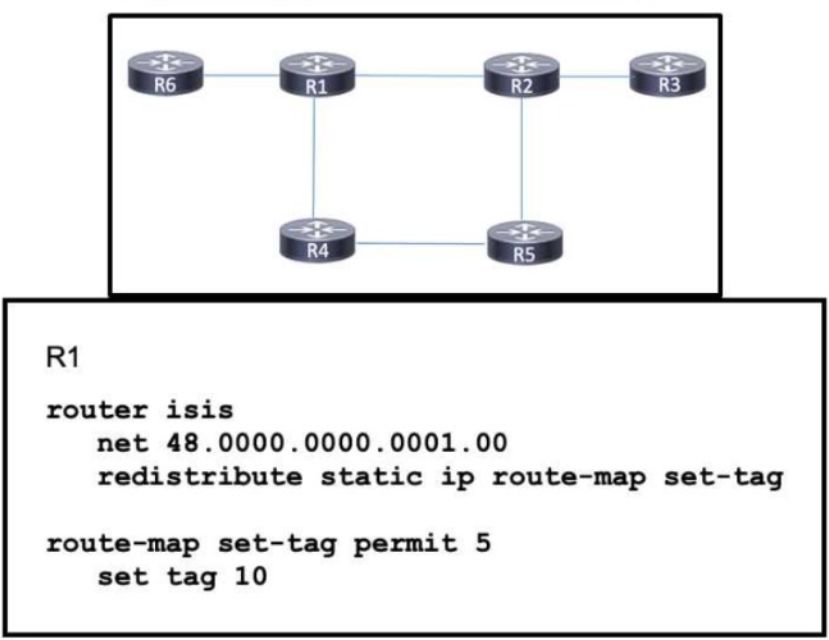

IS-IS runs in the network and all routers are in the same area R1 statically routes to distribute traffic with R6 and the networking team has redistributed the static routes on R1 into IS-IS Hosts on R3 need access to servers connected to R6 A tag has been applied to the routes to manipulate routes along the path but routers running IS-IS are still unable to reach the redistributed routes Which action must the team take to resolve the issue?

Refer to the exhibit.

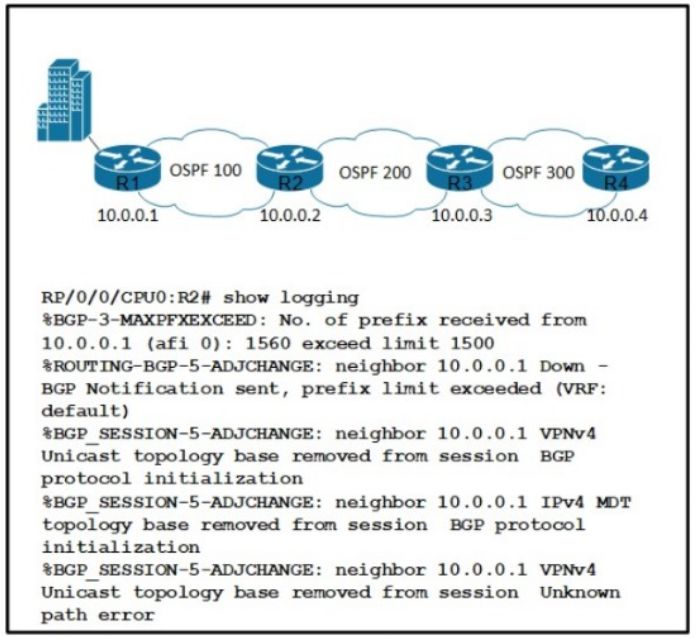

After maintenance to activate BGP neighbors connecting a new data center attached to R1,

L3VPN customers attached to OSPF domain 100 lost connectivity to services in OSPF 200 and OSPF 300 However Unified MPLS services within OSPF 100 remain reachable Which action must the network engineer take to resolve the outage?

Refer to the exhibit.

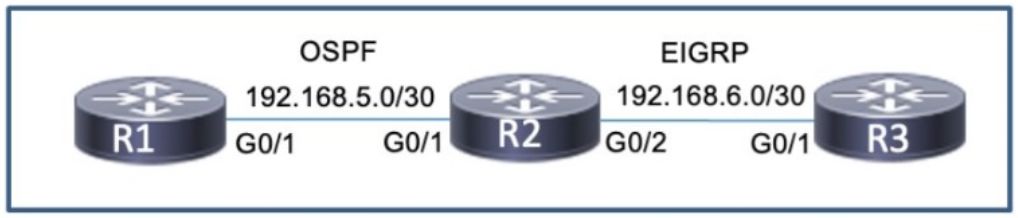

A company has been running OSPF and EIGRP on two separate portions of the network To allow communication flow between these previously isolated parts of the business the networking team just configured R2 to mutually redistribute routes between EIGRP and OSPF R3 has the OSPF routes in its routing table but R1 is failing to receive EIGRP routes for the link between R2 and R3 Which action must the team take to resolve the issue?

Which type of policy does an IPv6 ISATAP tunnel support?

Refer to the exhibit.

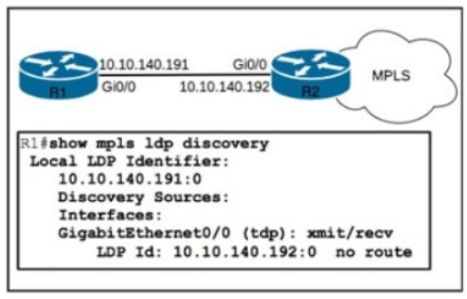

Routers R1 and R2 are RFC 5036-based MPLS-enabled core routers MPLS IP is enabled globally on both routers OSPF with area 0 configuration is used as an interior routing protocol between the routers After new services were enabled on the MPLS network, LDP connectivity failed on R1 TCP/UDP port 711 is confirmed to be open Which two actions must the engineer take to correct the problem? (Choose two.)

Refer to the exhibit.

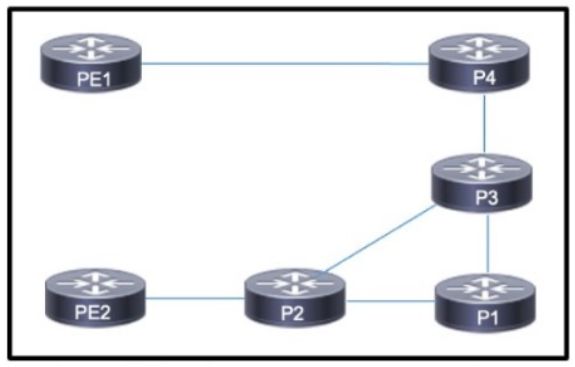

A regional service provider provides connectivity for several midsize businesses that run mission-critical applications between multiple offices connected via PE 1 and PE2 Links throughout the service provider network are connected using shared resources and an SR-TE tunnel is in use to route traffic over different paths depending on congestion policies The networking team must implement SR updates to reduce downtime in the event of a link failure. Which action must the team take to meet the requirements?

Refer to the exhibit.

The service provider provides IPv6 connectivity to large enterprise customers with offices spanning several geographic regions SRv6 is running in the service provider core The service provider just signed a contract with a new customer that is still running IPv4 The new customer needs connectivity between its two sites connected via CE1 and CE2 and the internet Which action must the service provider s network-engineering team take to provide connectivity across the SRv6 data plane?

Refer to the exhibit.

AJI four routers on the network reside in the same data center The four routers are running IS-IS between them in Level 1 mode within an IPv4 network After a network engineer installed several new servers connected to R4, users connected via R1 reported they could not connect to applications on the servers The engineer has determined that R4 is receiving routes from R3 but it is failing to receive routes from R1 Which action must the engineer take to resolve the issue?
