Home / Huawei / H12-261

Huawei H12-261 Practice Test - Questions Answers, Page 2

Question list

List of questions

Question 11

(0)

When a router is building a routing table from different routing protocols, which of the following will determine the routes to be installed in the routing table?

Question 12

(0)

Which of the following statements are NOT true regarding the TCP sliding window protocol? (Multiple Choice)

Question 13

(0)

Routers R1 and R2 are configured for BGP. Both routers are in AS 65234. Routes from Router R2 are in the BGP table on Router R1, but not in the IP routing table. What could be the cause of this prob

Question 14

(0)

What is the destination IP address of routing update packets sent by RIPv2?

Question 15

(0)

The LS Sequence Number field is used to detect expired and duplicate LSAs. This field is a signed 32-bit integer and therefore the minimum LS Sequence Number is 0x800000000.

Question 16

(0)

Which types of prefixes will a router running BGP most likely advertise to an IBGP peer, assuming it is not configured as a route reflector?

Question 17

(0)

In a data communication session between two hosts, the session layer in the OSI model generally communicates with what other layer of the OSI model?

Question 18

(0)

If a router receives a BGP route carrying the no-export community attribute, which of the following actions does the router take?

Question 19

(0)

As shown in the following figure, the neighbor relationship between R1 and R2 has just been established. Which of the following statements is true about the database synchronization process between

Question 20

(0)

Which of the following are key differences between RIP version 1 and RIP version 2? (Multiple Choice)

Question 11

When a router is building a routing table from different routing protocols, which of the following will determine the routes to be installed in the routing table?

The fastest routing process

uniqueness

Higher preference value

The route with the largest next-hop address

Low Router ID

Show Answer Comment (0)

Question 12

Which of the following statements are NOT true regarding the TCP sliding window protocol? (Multiple Choice)

The initial window offer is advertised by the sender

If the retransmission timer expires without the sender receiving an ACK message, the receiver retransmits the packet to the sender.

The size of the sliding window can only increase or stay the same

It allows the transmission of multiple frames before waiting for an acknowledgment

The receiver is required to acknowledge the data packets transmitted by the sender

The sender need not transmit a full window's worth of data

Show Answer Comment (0)

Routers R1 and R2 are configured for BGP. Both routers are in AS 65234. Routes from Router R2 are in the BGP table on Router R1, but not in the IP routing table. What could be the cause of this problem?

Synchronization is off

BGP multi-hop is disabled on Router R1

The next-hop of these routes can not reach by router R1

The BGP peers are down

Show Answer Comment (0)

Question 14

What is the destination IP address of routing update packets sent by RIPv2?

255.255.255.255

224.0.0.1

224.0.0.5

224.0.0.9

224.0.0.10

Show Answer Comment (0)

Question 15

The LS Sequence Number field is used to detect expired and duplicate LSAs. This field is a signed 32-bit integer and therefore the minimum LS Sequence

Number is 0x800000000.

FALSE

TRUE

Show Answer Comment (0)

Question 16

Which types of prefixes will a router running BGP most likely advertise to an IBGP peer, assuming it is not configured as a route reflector?

Prefixes received from EBGP peers and prefixes received from route reflectors

All prefixes in its routing table

Prefixes received from EBGP peers and prefixes locally originated via network statements or imported

Prefixes received from other IBGP peers, prefixes received from EBGP peers, and prefixes imported to BGP

Prefixes received from other IBGP peers and prefixes received from router reflectors

Prefixes received from any other BGP peer and prefixes locally originated via network statements or imported

Show Answer Comment (0)

Question 17

In a data communication session between two hosts, the session layer in the OSI model generally communicates with what other layer of the OSI model?

The physical layer of the peer

The peer's presentation layer

The peer's session layer

The peer's application layer

The data link layer of the peer

Show Answer Comment (0)

Question 18

If a router receives a BGP route carrying the no-export community attribute, which of the following actions does the router take?

Does not advertise the route to other BGP routers

Discards the route directly

Advertises the route to IBGP peers only

Advertises the route normally, but does not use it to forward data

Show Answer Comment (0)

Question 19

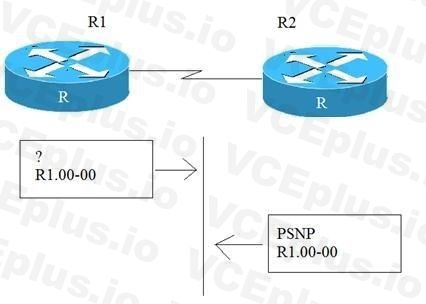

As shown in the following figure, the neighbor relationship between R1 and R2 has just been established. Which of the following statements is true about the database synchronization process between R1 and R2?
