Question 41

Report Export Collapse

What is the class D IP address range 239.0.0.0-239.255.255.255 used for?

It is a multicast address range used by routing protocols
It is a multicast address range used by routing protocols
Any legal multicast data flow and multicast application can use this address segment
Any legal multicast data flow and multicast application can use this address segment
Link-local multicast traffic mode up of network control messages meant to stay in the local subnet
Link-local multicast traffic mode up of network control messages meant to stay in the local subnet
It is a locally scoped multicast address and should only be used on local segments
It is a locally scoped multicast address and should only be used on local segments
It is an SSM multicast address range which is used on the entire network.
It is an SSM multicast address range which is used on the entire network.
Suggested answer: D
asked 18/09/2024
Darshak Ramdevputra
40 questions

Question 42

Report Export Collapse

Source Specific Multicast (SSM)is being used throughput the HW IP Multicast network. Which of the following three statements about SSM are true? (Choose three.)

SSM uses Shortest-Path Trees Only
SSM uses Shortest-Path Trees Only
There are no RPs to worry about
There are no RPs to worry about
SSM is best suited for applications that are of the Many-to-Many category
SSM is best suited for applications that are of the Many-to-Many category
SSM uses shared Trees only
SSM uses shared Trees only
The use of SSM is recommended when there are many sources and it is desirable to keep the amount of mroute state in the routers in the network to a minimum.
The use of SSM is recommended when there are many sources and it is desirable to keep the amount of mroute state in the routers in the network to a minimum.
SSM is best suited for applications that are of one-to-many category
SSM is best suited for applications that are of one-to-many category
Suggested answer: A, B, F
asked 18/09/2024
Kevin Taylor
38 questions

Question 43

Report Export Collapse

The default SSM group address range is 232.0.0.0/8. Which of the following configurations can be performed to modify the SSM group address range?

Run the ssm-policy advanced-acl-number command in the system view to configure the SSM group address range
Run the ssm-policy advanced-acl-number command in the system view to configure the SSM group address range
Run the ssm-policy basic-acl-number command in the system view to configure the SSM group address range
Run the ssm-policy basic-acl-number command in the system view to configure the SSM group address range
Run the ssm-policy advanced-acl-number command in the PIM view to configure the SSM group address range
Run the ssm-policy advanced-acl-number command in the PIM view to configure the SSM group address range
Run the ssm-policy basic-acl-number command in the PIM view to configure the SSM group address range
Run the ssm-policy basic-acl-number command in the PIM view to configure the SSM group address range
Suggested answer: D
asked 18/09/2024
Roger Warner
40 questions

Question 44

Report Export Collapse

Which Multicast Protocols use Reverse Path Forwarding (RPF) information when sending multicast traffic streams towards receivers within HW routers?

(Multiple Choice)

PIM Dense Mode
PIM Dense Mode
DVMRP
DVMRP
Multicast OSPF
Multicast OSPF
PIM Sparse Mode
PIM Sparse Mode
Suggested answer: A, B
asked 18/09/2024
Rickey Dickens
46 questions

Question 45

Report Export Collapse

Routers HW1 and HW2 are IP Multicast routers. These routers use (S, G) entries for multicast packet forwarding. Which of the following address types are used in the "S" entry?

The block of administratively scoped multicast addresses
The block of administratively scoped multicast addresses
Source Specific multicast addresses
Source Specific multicast addresses
SDP/SAP addresses
SDP/SAP addresses
Any class A, Class B, or Class C host address
Any class A, Class B, or Class C host address
GLOP addresses
GLOP addresses
Suggested answer: D
asked 18/09/2024
Ronald Armas
39 questions

Question 46

Report Export Collapse

Which of the following are differences between PIM-SM and PIM-DM? (Multiple Choice)

PIM-SM has RPTs and SPTs but PIM-DM has only RPTs
PIM-SM has RPTs and SPTs but PIM-DM has only RPTs
BSRs/RPs exist only on a PIM-SM network, not on a PIM-DM network
BSRs/RPs exist only on a PIM-SM network, not on a PIM-DM network
PIM-SM is applicable to a network with few receivers; PIM-DM is applicable to a network with a larger number of receivers
PIM-SM is applicable to a network with few receivers; PIM-DM is applicable to a network with a larger number of receivers
Whether in PIM-SM or PIM-DM mode, receiver hosts must join multicast groups through IGMP
Whether in PIM-SM or PIM-DM mode, receiver hosts must join multicast groups through IGMP
Suggested answer: B, C, D
asked 18/09/2024
Cornelius Paul
42 questions

Question 47

Report Export Collapse

A (*,G) multicast entry is associated with which multicast type of feature within the HW IP multicast network? (Multiple Choice)

Shared tree
Shared tree
Dense Mode
Dense Mode
Source tree
Source tree
Sparse Mode
Sparse Mode
Dense Tree
Dense Tree
PIM bidirectional
PIM bidirectional
Suggested answer: A, D, F
asked 18/09/2024
Wilfried Wagener
42 questions

Question 48

Report Export Collapse

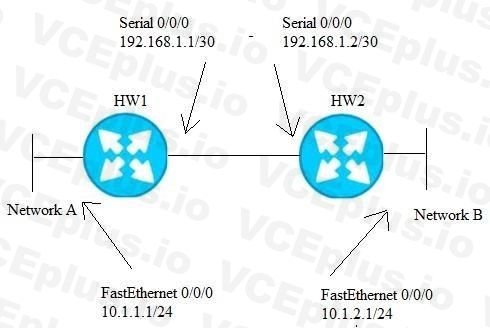

The HW network consists of Network A and B that are connected via Router HW1 and Router HW2. The HW network is shown in the following exhibit. To set up an IPSec VPN between routers HW1 and HW2, which of the following crypto access-lists must be configured on Router HW1 in order to send LAN to LAN traffic across the encrypted VPN tunnel?

Huawei H12-261 image Question 48 32070 09182024192157000000

rule permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
rule permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
rule permit ip source 10.1.1.0 0.0.0.255 destination 192.168.1.2 0
rule permit ip source 10.1.1.0 0.0.0.255 destination 192.168.1.2 0
rule permit ip source 198.168.1.1 0 destination 192.168.1.2 0
rule permit ip source 198.168.1.1 0 destination 192.168.1.2 0
rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
rule permit ip source 192.168.1.1 0 destination 10.1.2.0 0.0.0.255
rule permit ip source 192.168.1.1 0 destination 10.1.2.0 0.0.0.255
Suggested answer: D
asked 18/09/2024
Jatuchot Siriwongsilp
46 questions

Question 49

Report Export Collapse

To configure AAA, you need to define a RADIUS server. The RADIUS server is configured as follows:

[Huawei]radius-server template EXAM

[Huawei-radius-EXAM] radius-server shared-key cipher HUAwei123

[Huawei-radius-EXAM] radius-server authentication 10.7.66.66 1812

[Huawei-radius-EXAM] radius-server authorization 10.7.66.66 1812

[Huawei-radius-EXAM] radius-server accounting 10.7.66.66 1813

[Huawei-radius-EXAM] radius-server retransmit 2

FALSE
FALSE
TRUE
TRUE
Suggested answer: B
asked 18/09/2024
Aneez vezhappilly
38 questions

Question 50

Report Export Collapse

Which of the following lists, in the correct order, the protocols that use TCP ports 443, 179, 137, 110, and 23?

HTTPS, BGP, NetBios Name Server, POP3, Telnet
HTTPS, BGP, NetBios Name Server, POP3, Telnet
Finger, DHCP Server, NetBios Name Server, POP3, Telnet
Finger, DHCP Server, NetBios Name Server, POP3, Telnet
BGP, POP3, SNMP, TFTP, Telnet
BGP, POP3, SNMP, TFTP, Telnet
LDAP, SNMP, TFTP, POP3, Telnet
LDAP, SNMP, TFTP, POP3, Telnet
HTTPS, SNMP, POP3, DNS, Telnet
HTTPS, SNMP, POP3, DNS, Telnet
Suggested answer: A
asked 18/09/2024
lawrence Ajibolade
53 questions
