Huawei H12-811_V1.0 Practice Test - Questions Answers, Page 4

List of questions

Question 31

Report Export Collapse

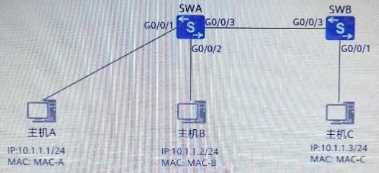

As shown in the figure below, all hosts can communicate normally. Is the correspondence between the MAC address and the port in the MAC address table of SWB correct? () (Single-choice question)

Huawei H12-811_V1.0 image Question 31 33606 09182024192851000000

MAC-A GO/0/1MAC-B GO/0/2MAC-C GO/0/3
MAC-A GO/0/1MAC-B GO/0/2MAC-C GO/0/3
MAC-A GO/0/2MAC-B G0/0/2MAC-C GO/0/3
MAC-A GO/0/2MAC-B G0/0/2MAC-C GO/0/3
MAC-A GO/0/3MAC-B GO/0/3MAC-C GO/0/1
MAC-A GO/0/3MAC-B GO/0/3MAC-C GO/0/1
MAC-A GO/0/1MAC-B GO/0/1MAC-C GO/0/3
MAC-A GO/0/1MAC-B GO/0/1MAC-C GO/0/3
Suggested answer: C
asked 18/09/2024
mallesu kante
30 questions

Question 32

Report Export Collapse

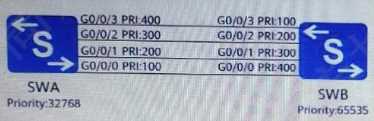

The priority of the LACP protocol is shown in the figure. Switch A and Switch B adopt LACP mode link aggregation, and all interfaces are added to the link aggregation group. At the same time, set the maximum number of active ports to 3. Then which port of switch A is not an active port ? () (Singlechoice question)

Huawei H12-811_V1.0 image Question 32 33607 09182024192851000000

G0/0/0
G0/0/0
G0/0/1
G0/0/1
G0/0/2
G0/0/2
G0/0/3
G0/0/3
Suggested answer: D
asked 18/09/2024
jateen chibabhai
45 questions

Question 33

Report Export Collapse

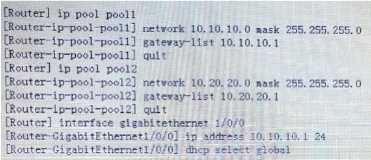

The administrator has configured the router as shown in the figure. Then a host connected to the G1/0/0 interface of the router. What kind of IP address can be obtained through DHCP? () (Singlechoice question)

Huawei H12-811_V1.0 image Question 33 33608 09182024192851000000

The IP address obtained by the host belongs to the 10.10.10.0/24 network
The IP address obtained by the host belongs to the 10.10.10.0/24 network
The IP address obtained by the host belongs to the 10.20.20.0/24 network
The IP address obtained by the host belongs to the 10.20.20.0/24 network
The IP address obtained by the host may belong to the 10.10.10.0/24 network, or it may belong to the 10.20.20.0/24 network
The IP address obtained by the host may belong to the 10.10.10.0/24 network, or it may belong to the 10.20.20.0/24 network
The host cannot get an address
The host cannot get an address
Suggested answer: A
asked 18/09/2024
jeffrey rowland
34 questions

Question 34

Report Export Collapse

In the network shown in the figure below, the router receives a data packet with a destination IP address of 11.0.12.1 from host A. This data packet is forwarded by the router. What are the destination mc and destination IP? () (Single-choice question)

Huawei H12-811_V1.0 image Question 34 33609 09182024192851000000


MAC-D10.0.12.2
MAC-D10.0.12.2
MAC-D11.0.12.1
MAC-D11.0.12.1
MAC-C11.0.12.1
MAC-C11.0.12.1
MAC-B11.0.12.1
MAC-B11.0.12.1
Suggested answer: D
asked 18/09/2024
David Powell
33 questions

Question 35

Report Export Collapse

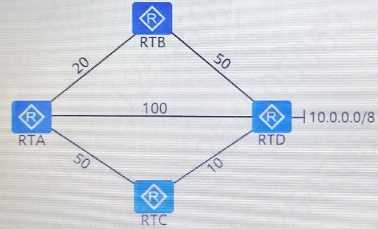

The network shown in the figure below. All routers run OSPF. The link cost value is shown in the figure. What is the cost value of the route entry to the network 10.0.0.0/8 in the RTA routing table? () (Single-choice question)

Huawei H12-811_V1.0 image Question 35 33610 09182024192851000000

100
100
70
70
20
20
60
60
Suggested answer: D
asked 18/09/2024
Mohand TIMSILINE
45 questions

Question 36

Report Export Collapse

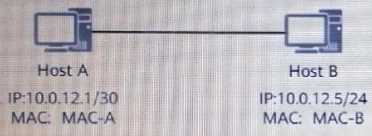

As shown in the figure below, which of the following statements is correct? () (Single-choice question)

Huawei H12-811_V1.0 image Question 36 33611 09182024192851000000

Host A can ping host B
Host A can ping host B
Only if the masks of host A and host B are set to be the same, host A and host B can communicate
Only if the masks of host A and host B are set to be the same, host A and host B can communicate
The IP address mask b of host A and host B are different. Therefore, host A and host B cannot communicate
The IP address mask b of host A and host B are different. Therefore, host A and host B cannot communicate
The broadcast address of host A and host B are the same
The broadcast address of host A and host B are the same
Suggested answer: A
asked 18/09/2024
AJ Foraker
41 questions

Question 37

Report Export Collapse

As shown in the figure below. Which port of the following switches will be blocked? () (Single-choice question)

Huawei H12-811_V1.0 image Question 37 33612 09182024192851000000

SWC's G0/0/2
SWC's G0/0/2
SWA's G0/0/3
SWA's G0/0/3
SWC's G0/0/1
SWC's G0/0/1
G0/0/3 of SWB
G0/0/3 of SWB
Suggested answer: C
asked 18/09/2024
Nomandla Asiya
42 questions

Question 38

Report Export Collapse

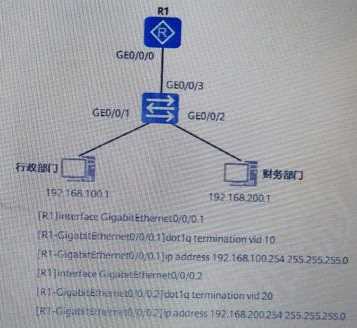

Refer to the configuration of the single-arm routing in the figure below, you can judge that even if the ARP proxy is not enabled on the sub-interface of R1,The administrative department and the financial department can also visit each other. ()(True or False)

Huawei H12-811_V1.0 image Question 38 33613 09182024192851000000

True
True
False
False
Suggested answer: B
asked 18/09/2024
Muhammad Imran
43 questions

Question 39

Report Export Collapse

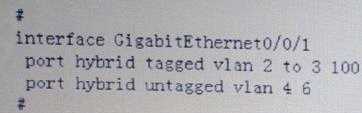

The configuration information of a certain port of the switch is shown in the figure. What is the PVID of this port? () (Single-choice question)

Huawei H12-811_V1.0 image Question 39 33614 09182024192851000000

100
100
2
2
4
4
1
1
Suggested answer: D
asked 18/09/2024
Rahul Biradavolu
43 questions

Question 40

Report Export Collapse

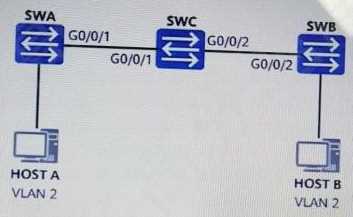

As shown in the figure, the network administrator creates VLAN2 on SWA and SWB. The ports connecting the hosts on the two switches are configured as Access ports. They are assigned to VLAN2. G0/0/1 of SWA and G0/0/2 of SWB are configured as Trunki ports. All VLANs are allowed to pass. What is needed to achieve normal communication between two hosts? () (Single-choice question)

Huawei H12-811_V1.0 image Question 40 33615 09182024192851000000

Configure G0/0/1 on SWC as a trunk port and allow VLAN2 to pass. Set G0/0/2 as an access port. PVID is 2.
Configure G0/0/1 on SWC as a trunk port and allow VLAN2 to pass. Set G0/0/2 as an access port. PVID is 2.
Create VLAN2 on SWC, configure G0/0/1 and G0/0/2 as trunk ports, and allow VLAN2 to pass
Create VLAN2 on SWC, configure G0/0/1 and G0/0/2 as trunk ports, and allow VLAN2 to pass
Just create BLAN2 on SWC
Just create BLAN2 on SWC
Configure G0/0/1 on SWC as a teunk port and allow VLAN2 to pass through
Configure G0/0/1 on SWC as a teunk port and allow VLAN2 to pass through
Suggested answer: B
asked 18/09/2024
Yan Wei
40 questions
Total 984 questions
