Question 61

(0)

The network shown in the figure below. All links are Ethernet links, and all interfaces of all routers run OSPF protocol, how many DRs are elected in the entire network? () (Single-choice question)

Question 62

(0)

The network shown in the figure below. The administrator wants RTA to use a static router. Priority is given to sending data packets to RTB's LoopbackO interface through G0/0/1 port. At the same tim

Question 63

(0)

In the network shown in the figure below, the switch uses VLANIF interfaces to connect with the router sub-interfaces. Which of the following configurations can achieve this requirement? () (Singlec

Question 64

(0)

As shown in the figure, is the description of this network topology correct? () (Single-choice question)

Question 65

(0)

Use the ACL shown in the figure on the router RTA to match routing entries. Then which of the following entries will be matched? (RTA) acl 2002 (RTA-acl-basic-2002) rule deny source 172.16.1.1 0.0

Question 66

(0)

The topology shown in the figure and the configuration on the interconnection ports of the switch. Can it be judged that the data frame tagged as VLAN10 can be forwarded normally between the two swi

Question 67

(0)

The configuration information of a certain router is shown in the figure. Which of the following statements are correct? () (Single-choice question) # aaa authentication-scheme default authentic

Question 68

(0)

The network shown in the figure below. Which router is the BDR in this network? () (Single-choice question)

Question 69

(0)

The output information of the router is shown in the figure. Which of the following statements is wrong? () (Single-choice question)

Question 70

(0)

As shown in the broadcast network. 0SPF runs on four routers. And in the same are a. Same network segment. OSPF will automatically elect one DR and multiple BDRs to achieve a better backup effect. (

Question 61

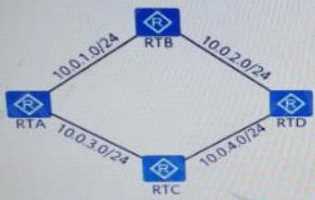

The network shown in the figure below. All links are Ethernet links, and all interfaces of all routers run OSPF protocol, how many DRs are elected in the entire network? () (Single-choice question)

Show Answer Comment (0)

The network shown in the figure below. The administrator wants RTA to use a static router. Priority is given to sending data packets to RTB's LoopbackO interface through G0/0/1 port. At the same time, G0/0/2 is used as a backup. Then any configuration on RTA can be Realize this requirement? () (Single-choice question)

ip route-static10.0.2.2255.255.255.25510.0.12.2Ip route-static10.0.2.2255.255.255.25510.0.21.2 preference 40

ip route-static10.0.2.2255.255.255.25510.0.12.2Ip route-static10.0.2.2255.255.255.25510.0.21.2

ip route-static10.0.2.2255.255.255.25510.0.12.2 preference 70Ip route.-static10.0.2.2255.255.255.25510.0.21.2

ip route-static10.0.2.2255.255.255.25510.0.12.2Ip route-static10.0.2.2255.255.255.25510.0.21.2 preference 70

Show Answer Comment (0)

Question 63

In the network shown in the figure below, the switch uses VLANIF interfaces to connect with the router sub-interfaces. Which of the following configurations can achieve this requirement? () (Singlechoice question)

interface Vlanif10Ip address10.0.12.1255.255.255.0#Interface GigabitEthernet 0/0/2Port link-type trunkPort trunk pvid 10Port trunk allow-pass vlan 10#

interface Vlanif10Ip address10.0.12.1255.255.255.0#Interface GigabitEthernet 0/0/2Port link-type trunkPort trunk allow-pass vlan 10#

interface Vlanif10Ip address10.0.12.1255.255.255.0#Interface GigabitEthernet 0/0/267Port link-type hybridPort hybrid untag vlan 10#

interface Vlanif10Ip address10.0.12.1255.255.255.0#Interface GigabitEthernet 0/0/2Port link-type accessPort default vlan 10

Show Answer Comment (0)

Question 64

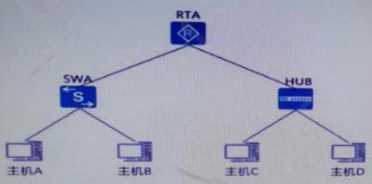

As shown in the figure, is the description of this network topology correct? () (Single-choice question)

There are 6 broadcast domains in this network

There are 12 conflict domains in this network

There are 6 conflict domains in this network

There are 2 broadcast domains in this network

Show Answer Comment (0)

Question 65

Use the ACL shown in the figure on the router RTA to match routing entries. Then which of the following entries will be matched?

(RTA) acl 2002

(RTA-acl-basic-2002) rule deny source 172.16.1.1 0.0.0.0

(RTA-acl-basic-2002) rule deny source 172.16.0.0 0.255.0.0

172.18.0.0/16

172.16.1.0/24

192.17.0.0/24

172.16.1.1/24

Show Answer Comment (0)

Question 66

The topology shown in the figure and the configuration on the interconnection ports of the switch. Can it be judged that the data frame tagged as VLAN10 can be forwarded normally between the two switches? ()(True or False)

(LSW1) interface GigabitEthernet 0/0/1

(LSW1-GigabitEthernet0/0/1) port link-type trunk

(LSW1-GigabitEthernet0/0/1) port trunk pvid vlan 20

(LSW1-GigabitEthernet0/0/1) port trunk allow-passvlan 10

(LSW2) interface GigabitEthernet 0/0/1

(LSW2-GigabitEthernet0/0/1) port link-type trunk

(LSW2-GigabitEthernet0/0/1 port trunk pvid vlan 10

(LSW2-GigabitEthernet0/0/1) port trunk allow-passvlan 10

True

False

Show Answer Comment (0)

Question 67

The configuration information of a certain router is shown in the figure. Which of the following statements are correct? () (Single-choice question)

aaa

authentication-scheme default

authentication-scheme huawei

authentication-mode radius

authorization-scheme default

authorization-scheme huawei

accounting-scheme default

domain default

domain default admin

domain huawei

authentication-scheme huawei

authorization-scheme huawei

local-user huawei password cipher 123456

local-user huawei@huawei password cipher 654321

The domain with the domain name huawei does not use the billing plan

Use the username huawei for authentication. The password needs to be 654321

The authentication method adopted for the domain with the domain name huawei is local authentication

The authorization method for the domain with the domain name huawei is local authorization

Show Answer Comment (0)

Question 68

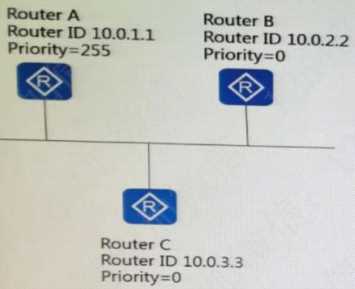

The network shown in the figure below. Which router is the BDR in this network? () (Single-choice question)

Router A

Router B

No BDR

Router C

Show Answer Comment (0)

Question 69

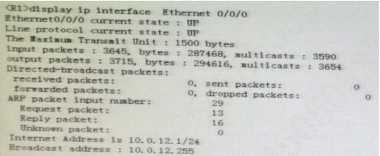

The output information of the router is shown in the figure. Which of the following statements is wrong? () (Single-choice question)

The MTU value of the Ethernet0/0/0 interface is 1480

The broadcast address corresponding to the Ethernet0/0/0 interface is 10.0.12.255

The physical link of the Ethernet0/0/0 interface is normal

Ethernet (The IP address of the /0/0 interface is 10.0.12.1/24

Show Answer Comment (0)

Question 70

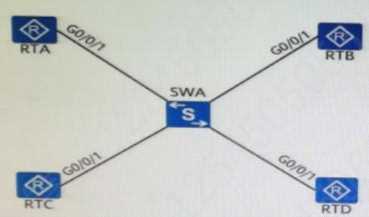

As shown in the broadcast network. 0SPF runs on four routers. And in the same are a. Same network segment. OSPF will automatically elect one DR and multiple BDRs to achieve a better backup effect. ()(True or False)
