HP HPE6-A84 Practice Test - Questions Answers, Page 4

BPDU (Bridge Protocol Data Unit) is a message that is exchanged between switches to maintain the spanning tree topology and prevent loops. BPDU protection and BPDU filtering are two features that can be configured on AOS-CX switch ports to enhance security and performance.

BPDU protection is a feature that disables a port if it receives a BPDU, indicating that an unauthorized switch or device has been connected to the port. BPDU protection is typically used on edge ports, which are ports that connect to end devices such as PCs or printers, and are not expected to receive BPDUs. BPDU protection prevents rogue devices from connecting to the network and affecting the spanning tree topology.

BPDU filtering is a feature that prevents a port from sending or receiving BPDUs, effectively isolating the port from the spanning tree topology. BPDU filtering is typically used on inter-switch ports, which are ports that connect to other switches, for specialized use cases such as creating a separate spanning tree domain or reducing the overhead of BPDUs. BPDU filtering should be used with caution, as it can create loops or inconsistencies in the network.

You can find more information about how to configure BPDU protection and BPDU filtering on AOSCX switch ports in the [Configuring Spanning Tree Protocol - Aruba] page and the [AOS-CX Switching Configuration Guide] page. The other options are not correct because they either use BPDU protection or BPDU filtering on the wrong type of ports or for the wrong purpose. For example, using BPDU protection on inter-switch ports would disable the ports if they receive BPDUs, which are expected in normal operation. Using BPDU filtering on edge ports would allow rogue devices to connect to the network and create loops or affect the spanning tree topology.

The exhibit shows a screenshot of a certificate that has the following information:

The subject common name (CN) is *.clearpass.local, which is a wildcard domain name that matches any subdomain under clearpass.local.

The subject alternative names (SANs) are DNS Name=clearpass.local and DNS

Name=*.clearpass.local, which are the same as the subject CN.

The issuer CN is clearpass.local, which is the same as the subject domain name.

The key usage (KU) is Digital Signature and Key Encipherment, which are required for RADIUS/EAP and RadSec usages.

The extended key usage (EKU) is Server Authentication and Client Authentication, which are also required for RADIUS/EAP and RadSec usages.

The issue with this certificate is that it uses a fully qualified the '.local' domain name, which is a reserved domain name for local networks that cannot be registered on the public Internet. This means that the certificate cannot be verified by any public certificate authority (CA), and therefore cannot be trusted by any external devices or servers that communicate with ClearPass. This could cause problems for RADIUS/EAP and RadSec usages, as they rely on secure and authenticated connections between ClearPass and other devices or servers.

To avoid this issue, the certificate should use a valid domain name that can be registered on the public Internet, such as clearpass.com or clearpass.net. This way, the certificate can be issued by a public CA that is trusted by most devices and servers, and can be verified by them. Alternatively, if the certificate is intended to be used only within a private network, it should be issued by a private CA that is trusted by all devices and servers within that network.

EAP (Extensible Authentication Protocol) is a framework that allows different authentication methods to be used for network access. EAP is used for RADIUS/EAP authentication, which is a common method for authenticating domain users on domain computers using certificates. EAP requires that the RADIUS server, such as ClearPass Policy Manager (CPPM), validates the certificates presented by the clients and verifies their identity against an identity source, such as Windows AD.

Therefore, the root certificate for the Windows CA that issues the certificates to the clients should have the EAP usage in the ClearPass CA Trust list.

Radsec (RADIUS over TLS) is a protocol that allows secure and encrypted communication between RADIUS servers and clients using TLS. Radsec is used for encrypting all communications between CPPM and the domain controllers, which act as RADIUS clients. Radsec requires that both the RADIUS server and the RADIUS client validate each other's certificates and establish a TLS session.

Therefore, the root certificate for the Windows CA that issues the certificates to the domain controllers should have the Radsec usage in the ClearPass CA Trust list.

RF Protect is a feature that enables wireless intrusion detection and prevention system (WIDS/WIPS) capabilities on AOS 8-based solutions. WIDS/WIPS allows detecting and mitigating rogue APs, unauthorized clients, and other wireless threats. RF Protect requires RF Protect licenses to be installed and WIDS to be enabled on the Mobility Master (MM).

To use the built-in capabilities of APs for WIDS/WIPS, without deploying dedicated air monitors (AMs), admins need to set at least one radio on each AP to air monitor mode. Air monitor mode allows the AP to scan the wireless spectrum and report any wireless activity or anomalies to the MM.

Air monitor mode does not affect the other radio on the AP, which can still serve clients in access mode. By setting at least one radio on each AP to air monitor mode, admins can achieve full coverage and visibility of the wireless environment and detect rogue APs.

If admins do not set any radio on the APs to air monitor mode, the APs will not scan the wireless spectrum or report any wireless activity or anomalies to the MM. This means that the APs will not be able to detect rogue APs, even if they are connected to the same network. Therefore, admins should check whether they have set at least one radio on each AP to air monitor mode.

According to the Aruba Cloud Authentication and Policy Overview1, one of the prerequisites for configuring Cloud Authentication and Policy is to configure Device Insight (client profile) tags in

Central. Device Insight tags are used to identify and classify IoT devices based on their behavior and characteristics. These tags can then be mapped to client roles, which are defined in the WLAN configuration for IAPs2. Client roles are used to enforce role-based access policies for the IoT devices.

Therefore, option B is the correct answer.

Option A is incorrect because NetConductor is not related to Cloud Authentication and Policy.

NetConductor is a cloud-based network management solution that simplifies the deployment and operation of Aruba Instant networks.

Option C is incorrect because integrating Aruba ClearPass Policy Manager (CPPM) and Device Insight is not a prerequisite for setting up the device role mappings. CPPM and Device Insight can work together to provide enhanced visibility and control over IoT devices, but they are not required for Cloud Authentication and Policy.

Option D is incorrect because creating global role-to-role firewall policies in Central is not a prerequisite for setting up the device role mappings. Global role-to-role firewall policies are used to define the traffic rules between different client roles across the entire network, but they are not required for Cloud Authentication and Policy.

According to the Aruba Cloud Authentication and Policy Overview1, Device Insight tags are stored in the Endpoint Repository and can be used as conditions within CPPM role mapping or enforcement policy rules. The rule condition type should be Endpoint, and the attribute should be Device Insight Tags. No extra authorization source is required for services that use policies with these rules.

Therefore, option D is the correct answer.

Option A is incorrect because creating an HTTP authentication source to the Central API is not necessary to use Device Insight tags as conditions. Device Insight tags are already synchronized between Central and CPPM, and can be accessed from the Endpoint Repository.

Option B is incorrect because using the Application type for the rule conditions is not applicable to Device Insight tags. The Application type is used to match attributes from the Application Authentication source, which is used to integrate with third-party applications such as Microsoft Intune or Google G Suite.

Option C is incorrect because using the Endpoints Repository type for the rule conditions is not valid for Device Insight tags. The Endpoints Repository type is used to match attributes from the Endpoints Repository source, which is different from the Endpoint type. The Endpoints Repository source contains information about endpoints that are manually added or imported into CPPM, while the Endpoint type contains information about endpoints that are dynamically discovered and profiled by CPPM or Device Insight. Adding Endpoints Repository as a secondary authentication source for services that use policies with these rules is also unnecessary and redundant.

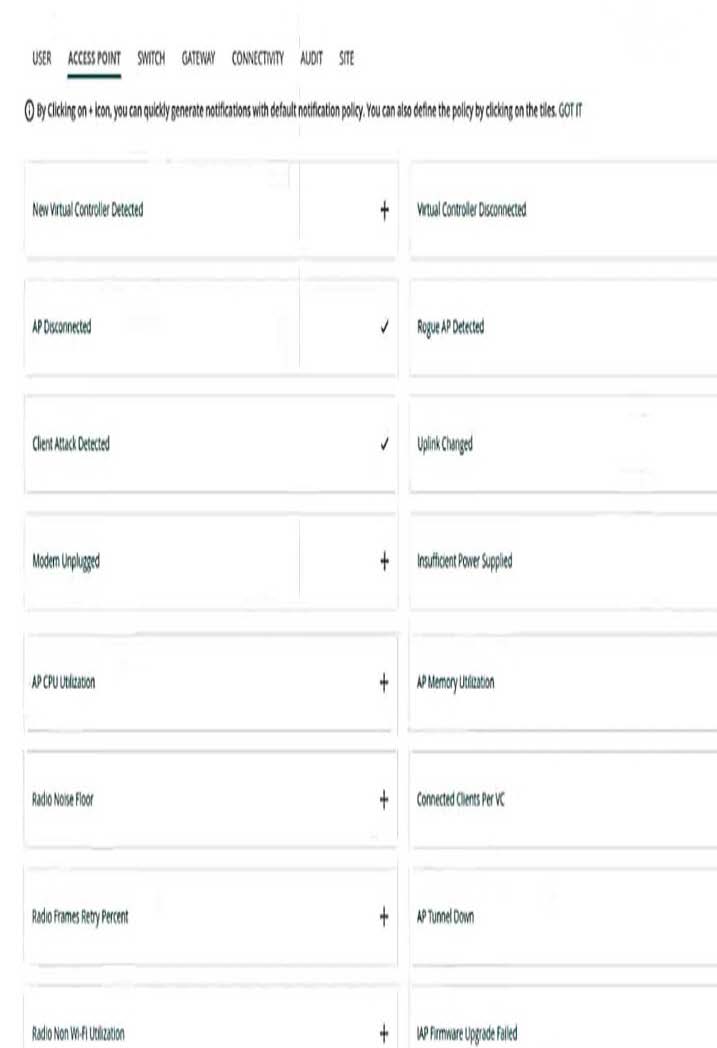

According to the AOS 10 documentation1, WIDS is a feature that monitors the radio spectrum for the presence of unauthorized, rogue access points and the use of wireless attack tools. WIDS can be configured at different levels, such as low, medium, high, or custom. The higher the level, the more checks are enabled and the more alerts are generated. However, not all checks are equally relevant or indicative of real threats. Some checks may generate false positives or unnecessary alerts that can overwhelm the administrators and reduce the effectiveness of WIDS.

Therefore, one step that could be recommended to reduce the number of email notifications is to change the WIDS level to custom, and enable only the checks most likely to indicate real threats. This way, the administrators can fine-tune the WIDS settings to suit their network environment and security needs, and avoid getting flooded with irrelevant or redundant alerts. Option C is the correct answer.

Option A is incorrect because sending the email notifications directly to a specific folder and only checking the folder once a week is not a good practice for security management. This could lead to missing or ignoring important alerts that require immediate attention or action. Moreover, this does not solve the problem of getting too many emails in the first place.

Option B is incorrect because disabling email notifications for Rogue AP, but leaving the Infrastructure Attack Detected and Client Attack Detected notifications on, is not a sufficient solution.

Rogue APs are unauthorized access points that can pose a serious security risk to the network, as they can be used to intercept or steal sensitive data, launch attacks, or compromise network performance. Therefore, disabling email notifications for Rogue APs could result in missing critical alerts that need to be addressed.

Option D is incorrect because disabling just the Rogue AP and Client Attack Detected alerts, as they overlap with the Infrastructure Attack Detected alert, is not a valid assumption. The Infrastructure Attack Detected alert covers a broad range of attacks that target the network infrastructure, such as deauthentication attacks, spoofing attacks, denial-of-service attacks, etc. The Rogue AP and Client Attack Detected alerts are more specific and focus on detecting and classifying rogue devices and clients that may be involved in such attacks. Therefore, disabling these alerts could result in losing valuable information about the source and nature of the attacks.

According to the AOS-CX Switches Multiple Vulnerabilities1, one of the vulnerabilities (CVE-2021-41000) affects the SSH service on AOS-CX switches. This vulnerability allows an unauthenticated remote attacker to cause a denial-of-service condition on the switch by sending specially crafted SSH packets. The impact of this vulnerability is high, as it could result in a loss of management access and network disruption. Therefore, one recommendation to make is to create a control plane ACL to limit the sources that can access the switch with SSH. This way, the switch can filter out unwanted or malicious SSH traffic and reduce the risk of exploitation.

According to the AOS-CX Switches Multiple Vulnerabilities1, one of the vulnerabilities (CVE-2021-41001) affects the Telnet service on AOS-CX switches. This vulnerability allows an unauthenticated remote attacker to cause a denial-of-service condition on the switch by sending specially crafted Telnet packets. The impact of this vulnerability is high, as it could result in a loss of management access and network disruption. Therefore, one immediate remediation that you should recommend is to disable Telnet on the switch. This way, the switch can prevent any malicious Telnet traffic from reaching it and avoid the exploitation of this vulnerability.
