Question 31

(0)

With Aruba CX 6300. how do you configure ip address 10 10 10 1 for the interface in default state for interface 1/1/1?

Question 32

(0)

A system engineer needs to preconfigure several Aruba CX 6300 switches that will be sent to a remote office An untrained local field technician will do the rollout of the switches and the mounting o

Question 33

(0)

Your Director of Security asks you to assign AOS-CX switch management roles to new employees based on their specific job requirements After the configuration was complete, it was noted that a user a

Question 34

(0)

A new network design is being considered to minimize client latency in a high-density environment. The design needs to do this by eliminating contention overhead by dedicating subcarriers to clients

Question 35

(0)

Your manufacturing client is having installers deploy seventy headless scanners and fifty IP cameras in their warehouse These new devices do not support 802 1X authentication. How can HPE Aruba red

Question 36

(0)

Which component is used by the Aruba Network Analytics Engine (NAE)?

Question 37

(0)

You need to have different routing-table requirements with Aruba CX 6300 VSF configuration Assuming the correct layer-2 VLAN already exists how would you create a new OSPF configuration for a separ

Question 38

(0)

With the Aruba CX switch configuration, what is the first-hop protocol feature that is used for VSX L3 gateway as per Aruba recommendation?

Question 39

(0)

You are deploying a bonded 40 MHz wide channel What is the difference in the noise floor perceived by a client using this bonded channel as compared to an unbonded 20MHz wide channel?

Question 40

(0)

When setting up an Aruba CX VSX pair, which information does the Inter-Switch Link Protocol configuration use in the configuration created?

Question 31

With Aruba CX 6300. how do you configure ip address 10 10 10 1 for the interface in default state for interface 1/1/1?

int 1/1/1. switching, ip address 10 10 10 1/24

int 1/1/1. no switching, ip address 10 10 10.1/24

int 1/1/1. ip address 10.10.10.1/24

int 1/1/1. routing, ip address 10.10.10 1/24

Show Answer Comment (0)

A system engineer needs to preconfigure several Aruba CX 6300 switches that will be sent to a remote office An untrained local field technician will do the rollout of the switches and the mounting of several AP-515s and AP-575S. Cables running to theAPs are not labeled.

The VLANs are already preconfigured to VLAN 100 (mgmt), VLAN 200 (clients), and VLAN 300 (guests)

What is the correct configuration to ensure that APs will work properly?

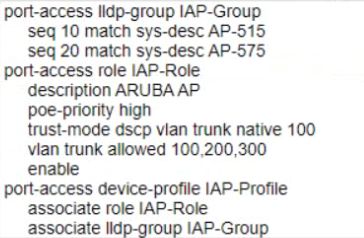

Option A

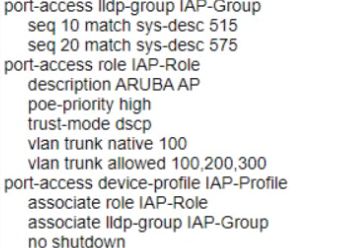

Option B

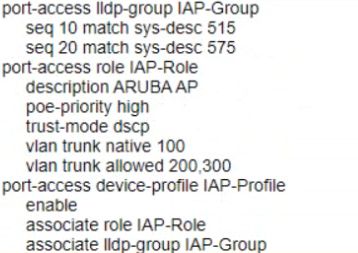

Option C

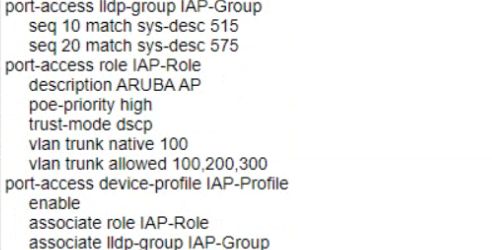

Option D

Show Answer Comment (0)

Question 33

Your Director of Security asks you to assign AOS-CX switch management roles to new employees based on their specific job requirements After the configuration was complete, it was noted that a user assigned with the administrators role did not have the appropriate level of access on the switch.

The user was not limited to viewing nonsensitive configuration information and a level of 1 was not assigned to their role Which default management role should have been assigned for the user?

sysadmin

operators

helpdesk

config

Show Answer Comment (0)

Question 34

A new network design is being considered to minimize client latency in a high-density environment. The design needs to do this by eliminating contention overhead by dedicating subcarriers to clients.

Which technology is the best match for this use case?

OFDMA

MU-MIMO

QWMM

Channel Bonding

Show Answer Comment (0)

Question 35

Your manufacturing client is having installers deploy seventy headless scanners and fifty IP cameras in their warehouse These new devices do not support 802 1X authentication.

How can HPE Aruba reduce the IT administration overhead associated with this deployment while maintaining a secure environment using MPSK?

Have the installers generate keys with ClearPass Self Service Registration.

Have the MPSK gateway derive the unique pre-shared keys based on the MAC OUI.

Use MPSK Local to automatically provide unique pre-shared keys for devices.

MPSK Local will allow the cameras to share a key and the scanners to share a different key

Show Answer Comment (0)

Question 36

Which component is used by the Aruba Network Analytics Engine (NAE)?

JSON-based scripts

Lisp-based agents

Ruby-based scripts

Current State Database

Show Answer Comment (0)

Question 37

You need to have different routing-table requirements with Aruba CX 6300 VSF configuration

Assuming the correct layer-2 VLAN already exists how would you create a new OSPF configuration for a separate routing table?

Create a new OSPF area, and attach VRF name.

Create a new OSPF process ID with vrf name.

Attach a new OSFP process ID with a custom routing table

Attach OSPF process ID in the VRF configuration.

Show Answer Comment (0)

Question 38

With the Aruba CX switch configuration, what is the first-hop protocol feature that is used for VSX L3 gateway as per Aruba recommendation?

Active Gateway

Active-Active VRRP

SVI with vsx-sync

VRRP

Show Answer Comment (0)

Question 39

You are deploying a bonded 40 MHz wide channel What is the difference in the noise floor perceived by a client using this bonded channel as compared to an unbonded 20MHz wide channel?

2dB

3dB

8dB

4dB

Show Answer Comment (0)
