This is the correct explanation of how roles can help keep consistent policy enforcement in a distributed overlay fabric. Roles are used to assign group based policy IDs (GBPs) to devices after they authenticate with ClearPass or a local database. GBPs are then used to tag the traffic from the devices and send them to the ingress VTEP, which applies the GBP on the VXLAN header. The egress VTEP then enforces the policy based on the GBP and the destination device. The other options are incorrect because they either do not describe the correct sequence of events or do not use the correct terms.

Reference: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html

multicast transmission optimization is a feature that allows the IAP to select the optimal rate for sending broadcast and multicast frames based on the lowest of unicast rates across all associated clients1. When this option is enabled, multicast traffic can be sent at up to 24 Mbps. The default rate for sending frames for 2.4 GHz is 1 Mbps and 5.0 GHz is 6 Mbps.This option is disabled by default1.

MPSK Local is a feature that can be used to set up 15 headless IoT devices that do not support 802.1X authentication. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require 802.1X authentication, which is not supported by the IoT devices, or WPA3 encryption, which is not supported by Aruba CX switches.

Reference: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch06.html

To allow a new VLAN 100 between VSX pair inter-switch-link 256 for port 1/45 and 2/45, you need to use the commandvlan trunk allowed 100 in LAG256. This will add VLAN 100 to the list of allowed VLANs on the trunk port LAG256, which is part of the inter-switch-link between VSX peers. The other options are incorrect because they either do not use the correct command or do not specify the correct port or VLAN.

Reference: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch07.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html

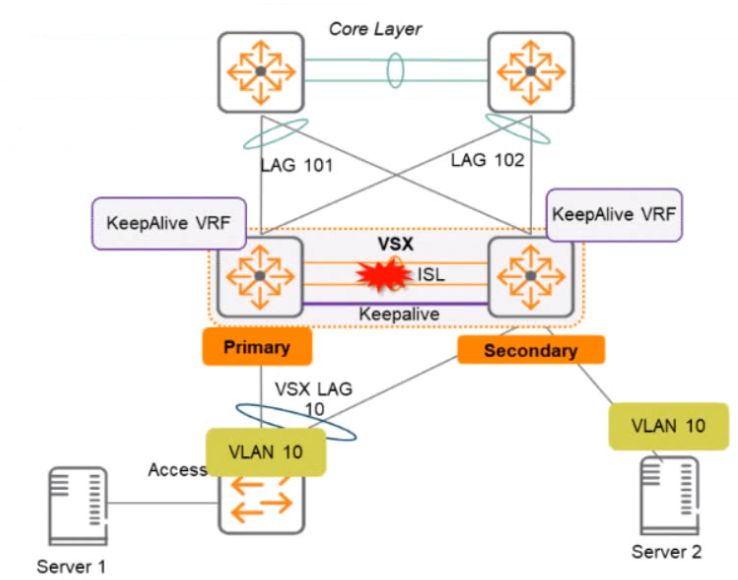

These are the correct statements about access from the servers to the Core when the ISL link between the switches fails, but the keepalive interface functions. Server 1 can access the core layer via both uplinks because it is connected to VSX-A, which is still active for VLAN 10. Server 2 can also access the core layer via its uplink to VSX-B, which is still active for VLAN 10 because of Active Gateway feature. Server 1 and Server 2 can communicate with each other via the core layer because they are in the same VLAN and subnet, and their traffic can be routed through the core switches. The other statements are incorrect because they either describe scenarios that are not possible or not relevant to the question.

Reference: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-

802.11mc is a standard that uses Round Trip Time (RTT) and Fine Time Measurements (FTM) to calculate the distance a client is from an AP. 802.11mc defines a protocol for exchanging FTM frames between an AP and a client, which contain timestamps that indicate when the frames were transmitted and received. By measuring the RTT of these frames, the AP or the client can estimate their distance based on the speed of light. The other options are incorrect because they either do not use RTT or FTM or do not exist as standards.

Reference: https://www.arubanetworks.com/assets/wp/WP_WiFi6.pdf https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf

To establish a keepalive connection between two Aruba CX 8325 switches for VSX configuration, you need to use a routed port in custom VRF. A routed port is a physical port that acts as a layer 3 interface and does not belong to any VLAN. A custom VRF is a virtual routing and forwarding instance that provides logical separation of routing tables. By using a routed port in custom VRF, you can isolate the keepalive traffic from other traffic and prevent routing loops or conflicts. The other options are incorrect because they either do not use a routed port or do not use a custom VRF.

Reference: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch07.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html

To onboard a new UXI in an existing environment with 802.1X authentication, you need to use the UXI app on your smartphone and connect the UXI via Bluetooth. The UXI app allows you to scan the QR code on the UXI sensor and configure its network settings, such as SSID, password, IP address, etc. The Bluetooth connection allows you to communicate with the UXI sensor without requiring any network access or cellular connection. The other options are incorrect because they either do not use the UXI app or do not use Bluetooth.

Reference: https://www.arubanetworks.com/products/network-management-operations/analytics-monitoring/user-experience-insight-sensors/ https://help.centralon-prem.arubanetworks.com/2.5.4/documentation/online_help/content/nms-on-prem/aos-cx/get-started/uxi-sensor.htm

VXLAN is a technology that can be used to meet the requirement of using a legacy application that communicates at layer-2 across a layer-3 network. Static VXLAN is a feature that allows the creation of layer-2 overlay networks over a layer-3 underlay network using VXLAN tunnels. Static VXLAN does not require any control plane protocol or VTEP discovery mechanism, and can be configured manually on the Aruba CX 6200 switches. The other options are incorrect because they either do not support layer-2 communication over layer-3 network or are not supported by Aruba CX 6200 switches.

Reference: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html
