MuleSoft MCIA Level 1 Maintenance Practice Test - Questions Answers, Page 2
List of questions
Related questions
Question 11

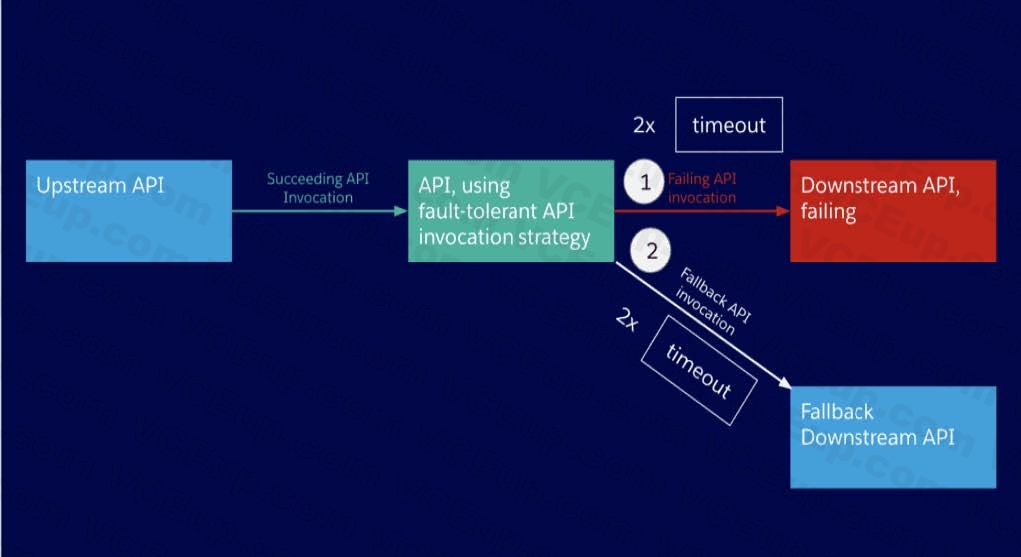

An API implementation is being designed that must invoke an Order API which is known to repeatedly experience downtime. For this reason a fallback API is to be called when the Order API is unavailable. What approach to designing invocation of the fallback API provides the best resilience?
Explanation:
* Resilience testing is a type of software testing that observes how applications act under stress. It's meant to ensure the product's ability to perform in chaotic conditions without a loss of core functions or data; it ensures a quick recovery after unforeseen, uncontrollable events.
* In case an API invocation fails — even after a certain number of retries — it might be adequate to invoke a different API as a fallback. A fallback API, by definition, will never be ideal for the purpose of the API client, otherwise it would be the primary API.
* Here are some examples for fallback APIs:
- An old, deprecated version of the same API.
- An alternative endpoint of the same API and version (e.g. API in another CloudHub region).
- An API doing more than required, and therefore not as performant as the primary API.
- An API doing less than required and therefore forcing the API Client to offer a degraded service, which is still better than no service at all.
* API clients implemented as Mule applications offer the ‘Until Successful Scope and Exception’ strategies at their disposal, which together allow configuring fallback actions such as a fallback API invocation.
* All HTTP response status codes within the 3xx category are considered redirection messages. Thesecodes indicate to the user agent (i.e. your web browser) that an additional action is required in orderto complete the request and access the desired resource
Hence correct answer is Redirect client requests through an HTTP 303 temporary redirect status codeto the fallback API whenever the Order API is unavailable
Question 12

How are the API implementation , API client, and API consumer combined to invoke and process an API ?
Explanation:
The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality
Question 13

What Mule application can have API policies applied by Anypoint Platform to the endpoint exposed by that Mule application?
Explanation:
* HTTP/1.1 keeps all requests and responses in plain text format.
* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while stillmaintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, andoffers several methods to decrease latency, especially when dealing with mobile platforms andserver-intensive graphics and videos* Currently, Mule application can have API policies only for Mule application that accepts requestsover HTTP/1x
Question 14

The implementation of a Process API must change. What is a valid approach that minimizes the impact of this change on API clients?
Explanation:
* Option B shouldn't be used unless extremely needed, if RAML is changed, client needs to accommodate changes. Question is about minimizing impact on Client. So this is not a valid choice.
* Option C isn't valid as Business can't stop for consumers acknowledgment.
* Option D again needs Client to accommodate changes and isn't viable option.
* Best choice is A where RAML definition isn't changed and underlined functionality is changed without any dependency on client and without impacting client.
Question 15

Organization wants to achieve high availability goal for Mule applications in customer hosted runtime plane. Due to the complexity involved, data cannot be shared among of different instances of same Mule application. What option best suits to this requirement considering high availability is very much critical to the organization?
Explanation:
High availability is about up-time of your application
A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well
B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.
Reference: https://docs.mulesoft.com/mule-runtime/4.3/mule-object-stores

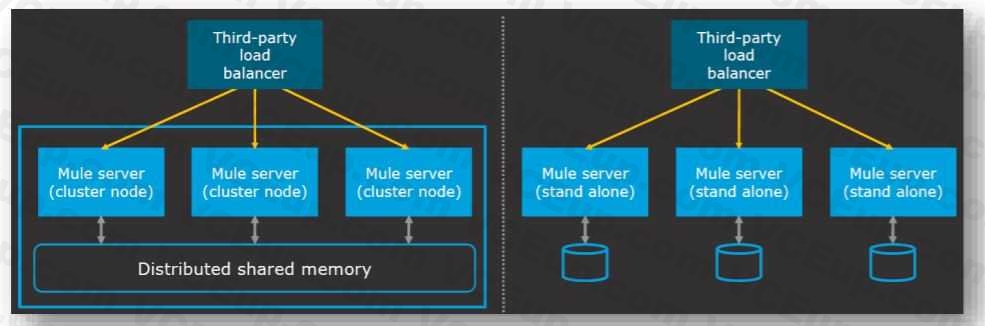

C) High availability can be achieved by below two models for on-premise MuleSoft implementations.
1) Mule Clustering – Where multiple Mule servers are available within the same cluster environment and the routing of requests will be done by the load balancer. A cluster is a set of up to eight servers that act as a single deployment target and high-availability processing unit. Application instances in a cluster are aware of each other, share common information, and synchronize statuses.
If one server fails, another server takes over processing applications. A cluster can run multiple applications. ( refer left half of the diagram) In given scenario, it's mentioned that 'data cannot be shared among of different instances'. So this is not a correct choice.
Reference: https://docs.mulesoft.com/runtime-manager/cluster-about
2) Load balanced standalone Mule instances – The high availability can be achieved even without cluster, with the usage of third party load balancer pointing requests to different Mule servers. This approach does not share or synchronize data between Mule runtimes. Also high availability achieved as load balanced algorithms can be implemented using external load balancer. ( refer right half of the diagram)
Question 16

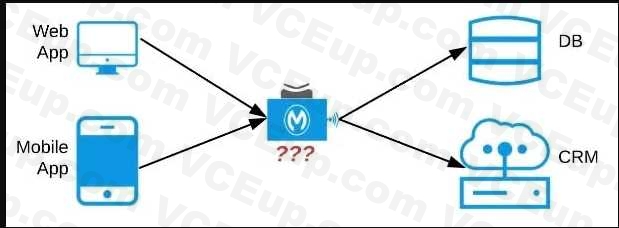

An organization needs to enable access to their customer data from both a mobile app and a web application, which each need access to common fields as well as certain unique fields. The data is available partially in a database and partially in a 3rd-party CRM system. What APIs should be created to best fit these design requirements?
Explanation:

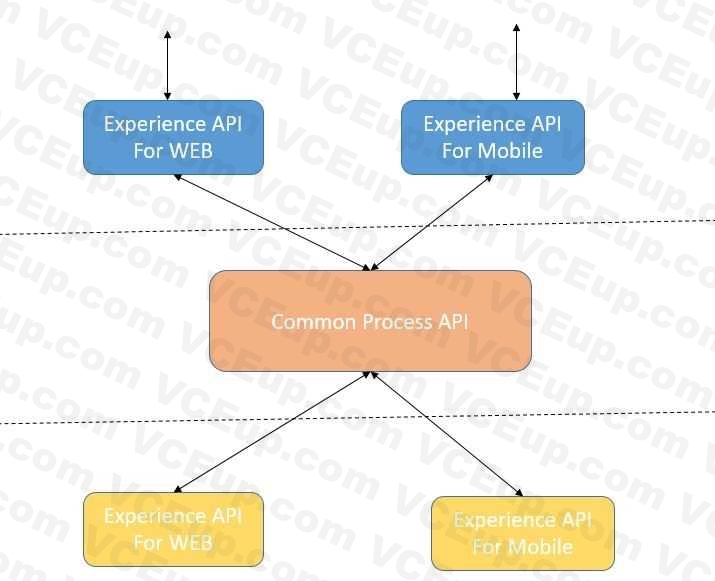

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.
Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

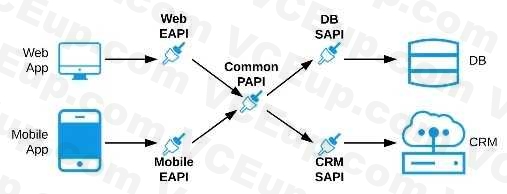

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system
Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.
Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.
Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system
Question 17

What is true about automating interactions with Anypoint Platform using tools such as Anypoint Platform REST API's, Anypoint CLI or the Mule Maven plugin?
Explanation:
Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.
Question 18

An organization uses one specific CloudHub (AWS) region for all CloudHub deployments. How are CloudHub workers assigned to availability zones (AZs) when the organization's Mule applications are deployed to CloudHub in that region?
Explanation:
Correct answer is Workers are randomly distributed across available AZs within that region. This ensure high availability for deployed mule applications Mulesoft documentation reference :
https://docs.mulesoft.com/runtime-manager/cloudhub-hadr
Question 19

What best describes the Fully Qualified Domain Names (FQDNs), also known as DNS entries, created when a Mule application is deployed to the CloudHub Shared Worker Cloud?
Explanation:
Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:
<application-name>.<region>.cloudhub.io <application-name> is the deployed application name which is unique across all the MuleSoft clients. <region> is the region name in which an application is deployed.
The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp.<region>.cloudhub.io redirects to http://mule-worker-myApp.<region>.cloudhub.io:8081
HTTPS traffic to https://myApp.<region>.cloudhub.io redirects to
https://mule-worker-myApp.<region>.cloudhub.io:8082
Question 20

What API policy would LEAST likely be applied to a Process API?
Explanation:
Key to this question lies in the fact that Process API are not meant to be accessed directly by clients.
Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3- json-threat
