Question 11
An API has been unit tested and is ready for integration testing. The API is governed by a Client ID Enforcement policy in all environments.
What must the testing team do before they can start integration testing the API in the Staging environment?
Explanation:
* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.
* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.
* Each authorized application is configured with credentials: client_id and client_secret.
* At runtime, authorized applications provide the credentials with each request to the API implementation.
MuleSoft Reference: https://docs.mulesoft.com/api-manager/2.x/policy-mule3-client-id-basedpolicies
Question 12
What requires configuration of both a key store and a trust store for an HTTP Listener?
Explanation:

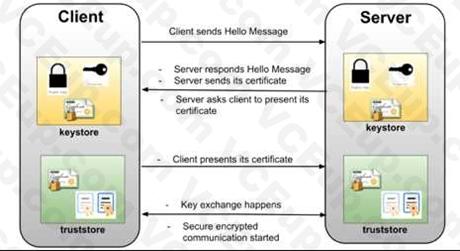

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.
2-way SSL: The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.
* TLS is a cryptographic protocol that provides communications security for your Mule app.
* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:
For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.
Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.
* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.
Question 13
A retailer is designing a data exchange interface to be used by its suppliers. The interface must support secure communication over the public internet. The interface must also work with a wide variety of programming languages and IT systems used by suppliers.
What are suitable interface technologies for this data exchange that are secure, cross-platform, and internet friendly, assuming that Anypoint Connectors exist for these interface technologies?
Explanation:
* As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-basedprotocols. Non-HTTP-based programmatic interfaces are not APIs.
* HTTP-based programmatic interfaces are APIs even if they don't use REST or JSON. Henceimplementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are notusing HTTP.
* One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.
* Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.
Considering the above points only correct option is
-XML over ActiveMQ
- XML over SFTP
- XML/REST over HTTPS
Question 14
An organization currently uses a multi-node Mule runtime deployment model within their datacenter, so each Mule runtime hosts several Mule applications. The organization is planning to transition to a deployment model based on Docker containers in a Kubernetes cluster. The organization has already created a standard Docker image containing a Mule runtime and all required dependencies (including a JVM), but excluding the Mule application itself.
What is an expected outcome of this transition to container-based Mule application deployments?
Explanation:
* Organization can continue using existing load balancer even if backend application changes are there. So option A is ruled out.
* As Mule runtime is within their datacenter, this model is RTF and not PCE. So option C is ruled out.
Mule runtime deployment model within their datacenter, so each Mule runtime hosts several Mule applications -- This mean PCE or Hybird not RTF - Also mentioned in Question is that - Mule runtime is hosting several Mule Application, so that also rules out RTF and as for hosting multiple Application it will have Domain project which need redesign to make it microservice architecture ---------------------------------------------------------------------------------------------------------------
Answer: Required redesign of Mule applications to follow microservice
Explanation:architecture principles
Question 15
A team would like to create a project skeleton that developers can use as a starting point when creating API Implementations with Anypoint Studio. This skeleton should help drive consistent use of best practices within the team.
What type of Anypoint Exchange artifact(s) should be added to Anypoint Exchange to publish the project skeleton?
Explanation:
* Sharing Mule applications as templates is a great way to share your work with other people who are in your organization in Anypoint Platform. When they need to build a similar application they can create the mule application using the template project from Anypoint studio.
* Anypoint Templates are designed to make it easier and faster to go from a blank canvas to a production application. They're bit for bit Mule applications requiring only Anypoint Studio to build and design, and are deployable both on-premises and in the cloud.
* Anypoint Templates are based on five common data Integration patterns and can be customized and extended to fit your integration needs. So even if your use case involves different endpoints or connectors than those included in the template, they still offer a great starting point.
Some of the best practices while creating the template project: - Define the common error handler as part of template project, either using pom dependency or mule config file - Define common logger/audit framework as part of the template project - Define the env specific properties and secure properties file as per the requirement - Define global.xml for global configuration - Define the config file for connector configuration like Http,Salesforce,File,FTP etc - Create separate folders to create DWL,Properties,SSL certificates etc - Add the dependency and configure the pom.xml as per the business need - Configure the mule-artifact.json as per the business need
Question 16
What aspect of logging is only possible for Mule applications deployed to customer-hosted Mule runtimes, but NOT for Mule applications deployed to CloudHub?
Explanation:
* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word to note in the answer is directly.
* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file.
This specifies the CloudHub appender to write logs to the CloudHub logging service.

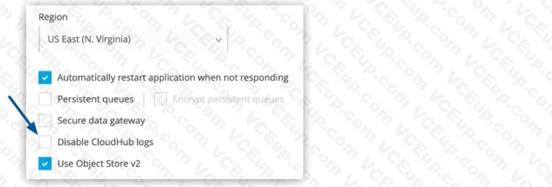

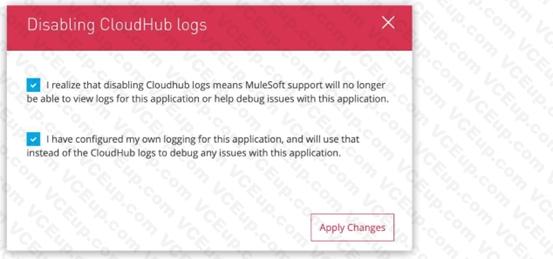

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.
* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.
* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that
- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support
- where as Customer-hosted runtime can send system and application log to external log management system MuleSoft Reference:
https://docs.mulesoft.com/runtime-manager/viewing-log-data
https://docs.mulesoft.com/runtime-manager/custom-log-appender
Question 17

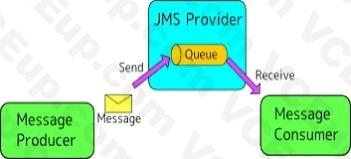

What is true about the network connections when a Mule application uses a JMS connector to interact with a JMS provider (message broker)?
Explanation:
* To send message or receive JMS (Java Message Service) message no separate network connection need to be established. So option A, C and D are ruled out.
Answer: The JMS connector supports both sending and receiving of JMS
Explanation:messages over the protocol determined by the JMS provider.
* JMS Connector enables sending and receiving messages to queues and topics for any message service that implements the JMS specification.
* JMS is a widely used API for message-oriented middleware.
* It enables the communication between different components of a distributed application to be loosely coupled, reliable, and asynchronous.
MuleSoft Doc Reference: https://docs.mulesoft.com/jms-connector/1.7/
Question 18

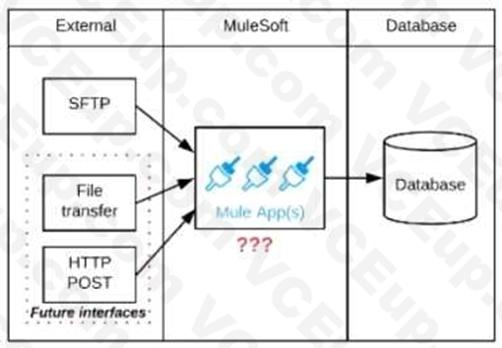

Refer to the exhibit.
A business process involves the receipt of a file from an external vendor over SFTP. The file needs to be parsed and its content processed, validated, and ultimately persisted to a database. The delivery mechanism is expected to change in the future as more vendors send similar files using other mechanisms such as file transfer or HTTP POST.
What is the most effective way to design for these requirements in order to minimize the impact of future change?
Explanation:
* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.
* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.
* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

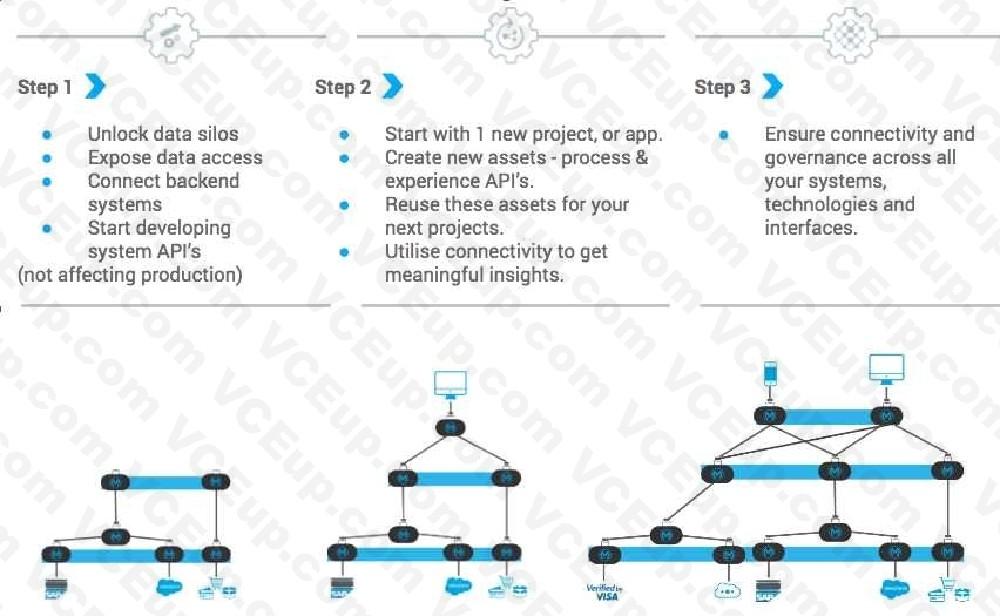

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role ñ unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value.
Experience APIs : These are designed specifically for consumption by a specific end-user app or device.
So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.
Question 19

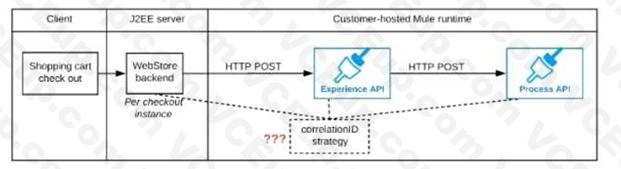

Refer to the exhibit.
A shopping cart checkout process consists of a web store backend sending a sequence of API invocations to an Experience API, which in turn invokes a Process API. All API invocations are over HTTPS POST. The Java web store backend executes in a Java EE application server, while all APIimplementations are Mule applications executing in a customer -hosted Mule runtime.
End-to-end correlation of all HTTP requests and responses belonging to each individual checkoutInstance is required. This is to be done through a common correlation ID, so that all log entrieswritten by the web store backend, Experience API implementation, and Process API implementationinclude the same correlation ID for all requests and responses belonging to the same checkoutinstance.
What is the most efficient way (using the least amount of custom coding or configuration) for the web store backend and the implementations of the Experience API and Process API to participate in end-to-end correlation of the API invocations for each checkout instance?
Explanation:
Correct answer is "The web store backend generates a new correlation ID value at the start of checkout and sets it on the X¨CORRELATION-ID HTTP request header in each API invocation belonging to that checkout No special code or configuration is included in the Experience API and Process API implementations to generate and manage the correlation ID" : By design, Correlation Ids cannot be changed within a flow in Mule 4 applications and can be set only at source.
This ID is part of the Event Context and is generated as soon as the message is received by the application. When a HTTP Request is received, the request is inspected for "X-Correlation-Id" header. If "X-Correlation-Id" header is present, HTTP connector uses this as the Correlation Id. If "X-Correlation-Id" header is NOT present, a Correlation Id is randomly generated. For Incoming HTTP Requests: In order to set a custom Correlation Id, the client invoking the HTTP request must set "X-Correlation-Id" header. This will ensure that the Mule Flow uses this Correlation Id. For Outgoing HTTP Requests: You can also propagate the existing Correlation Id to downstream APIs. By default, all outgoing HTTP Requests send "X-Correlation-Id" header. However, you can choose to set a different value to "X-Correlation- Id" header or set "Send Correlation Id" to NEVER.
Mulesoft Reference: https://help.mulesoft.com/s/article/How-to-Set-Custom-Correlation-Id-for-Flows-with-HTTP-Endpoint-in-Mule-4
Question 20
What operation can be performed through a JMX agent enabled in a Mule application?
Explanation:
JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent.
Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the <jmx-log4j> element. It does not take any additional properties MuleSoft Reference:
https://docs.mulesoft.com/mule-runtime/3.9/jmxmanagement
