This study guide should help you understand what to expect on the exam and includes a summary of the topics the exam might cover and links to additional resources. The information and materials in this document should help you focus your studies as you prepare for the exam.
Related questions
An API implementation returns three X-RateLimit-* HTTP response headers to a requesting APIclient. What type of information do these response headers indicate to the API client?
Unlock Premium Member
A system API is deployed to a primary environment as well as to a disaster recovery (DR) environment, with different DNS names in each environment. A process API is a client to the system API and is being rate limited by the system API, with different limits in each of the environments. The system API's DR environment provides only 20% of the rate limiting offered by the primary environment. What is the best API fault-tolerant invocation strategy to reduce overall errors in the process API, given these conditions and constraints?
What correctly characterizes unit tests of Mule applications?
Explanation:
Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.
*****************************************
Below TWO are characteristics of Integration Tests but NOT unit tests:
>> They test the validity of input and output of source and target systems.
>> They must be triggered by an external client tool or event source.
It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.
MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.
https://dzone.com/articles/munit-framework
Which of the following best fits the definition of API-led connectivity?
Which of the following sequence is correct?
An API implementation is deployed on a single worker on CloudHub and invoked by external API clients (outside of CloudHub). How can an alert be set up that is guaranteed to trigger AS SOON AS that API implementation stops responding to API invocations?
Explanation:

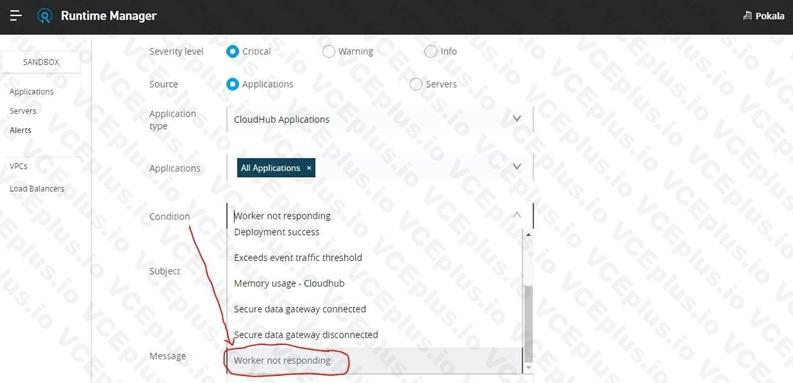

Answer: Configure a "Worker not responding" alert in Anypoint Runtime Manager.
*****************************************
>> All the options eventually helps to generate the alert required when the application stops responding.
>> However, handling exceptions within calling API and then raising alert from API client is inappropriate and silly. There could be many API clients invoking the API implementation and it is not ideal to have this setup consistently in all of them. Not a realistic way to do.
>> Implementing a health check/ heartbeat with in the API and calling from outside to detmine the health sounds OK but needs extra setup for it and same time there are very good chances of generating false alarms when there are any intermittent network issues between external tool calling the health check API on API implementation. The API implementation itself may not have any issues but due to some other factors some false alarms may go out.
>> Creating an alert in API Manager when the API receives no requests within a specified time period would actually generate realistic alerts but even here some false alarms may go out when there are genuinely no requests from API clients.
The best and right way to achieve this requirement is to setup an alert on Runtime Manager with a condition "Worker not responding". This would generate an alert AS SOON AS the workers become unresponsive.
What is a key performance indicator (KPI) that measures the success of a typical C4E that is immediately apparent in responses from the Anypoint Platform APIs?
Explanation:
Answer: The number of API specifications in RAML or OAS format published to Anypoint Exchange *****************************************
>> The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.
>> It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints
>> Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.
Reference: https://help.mulesoft.com/s/question/0D52T00004mXSTUSA4/how-should-a-companymeasure-c4e-success
An organization uses various cloud-based SaaS systems and multiple on-premises systems. The onpremises systems are an important part of the organization's application network and can only be accessed from within the organization's intranet.
What is the best way to configure and use Anypoint Platform to support integrations with both the cloud-based SaaS systems and on-premises systems?
Explanation:
Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.
*****************************************
Key details to be taken from the given scenario:
>> Organization uses BOTH cloud-based and on-premises systems
>> On-premises systems can only be accessed from within the organization's intranet Let us evaluate the given choices based on above key details:
>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane.
We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID
>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSofthosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID
>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.
The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted
Platform control plane.
A set of tests must be performed prior to deploying API implementations to a staging environment.
Due to data security and access restrictions, untested APIs cannot be granted access to the backend systems, so instead mocked data must be used for these tests. The amount of available mocked data and its contents is sufficient to entirely test the API implementations with no active connections to the backend systems. What type of tests should be used to incorporate this mocked data?
A REST API is being designed to implement a Mule application.
What standard interface definition language can be used to define REST APIs?
