NCP-CI-AWS: Nutanix Certified Professional - Cloud Integration - AWS V6.7

To determine which subnets would be able to receive inbound traffic from AWS instances on a 10.0.0.0/22 network segment, we need to look at the configured subnets and their CIDR ranges, as well as the custom network security group's inbound rules.

Available CIDR ranges in VPC:

70.73.0.0/16

10.79.107.0/24

10.0.0.0/22

Configured Subnets in NC2 AWS VPC:

VDI: 10.78.130.0/22

SQL: 10.78.3.0/24

Server01: 10.78.2.0/24

Server02: 10.79.120.0/24

Tier01: 10.19.101.0/24

Custom Network Security Group Inbound Rule:

Allows all inbound traffic from 10.0.0.0/22.

Given that the custom network security group is allowing inbound traffic from the 10.0.0.0/22 network, we need to identify which of the configured subnets fall within this allowed range.

Analysis:

The subnets 10.78.130.0/22, 10.78.3.0/24, 10.78.2.0/24, 10.79.120.0/24, and 10.19.101.0/24 do not overlap with 10.0.0.0/22. Therefore, none of these subnets would naturally fall within the 10.0.0.0/22 range directly.

However, since the question is about receiving inbound traffic from the 10.0.0.0/22 network and considering security group rules, all subnets mentioned can technically receive traffic if the inbound rules are configured correctly, but since we are strictly asked about the configuration from the image and the overlap in the ranges:

Server01 (10.78.2.0/24) and Tier01 (10.19.101.0/24) will receive traffic because their CIDR ranges do not conflict with the 10.0.0.0/22 range, thus allowing traffic without additional restrictions.

Nutanix Clusters on AWS Administration Guide

AWS VPC and Subnet documentation

Network Security Group rules configuration in Nutanix documentation

To create a cluster in Nutanix Cloud Integration with AWS, the role needed is Cluster Super Admin.

The Cluster Super Admin role provides the highest level of privileges required to perform critical operations such as creating, managing, and deleting clusters.

This role is essential for overseeing the cluster setup and configuration processes, ensuring the user has full control over the cluster lifecycle.

Reference: Refer to the Nutanix documentation on roles and permissions for NC2 on AWS for further details on the capabilities and required permissions for cluster creation.

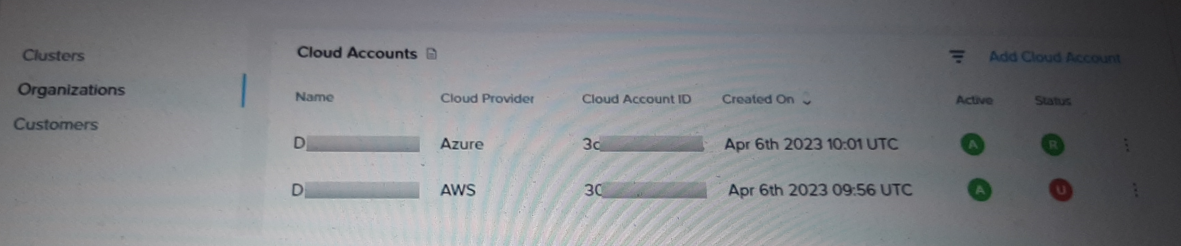

The exhibit shows two cloud accounts, one for Azure and one for AWS, with their statuses indicated. The AWS cloud account status is marked as 'U' (which likely stands for 'Unavailable' or 'Unreachable'). This indicates that the AWS cloud account configuration is not properly connected or accessible.

Status Check:

The AWS cloud account is marked with an 'U' status, meaning it is not active or accessible.

This status prevents the creation of an NC2 cluster because the necessary cloud resources cannot be allocated or managed without a proper connection.

Action:

The best course of action is to create a new cloud account in the organization. This involves setting up the cloud account details correctly and ensuring it is properly configured to communicate with Nutanix and AWS.

Steps to Create a New Cloud Account:

Log in to the Nutanix console.

Navigate to the 'Organizations' section.

Select 'Add Cloud Account' and provide the required AWS credentials and permissions.

Ensure the new cloud account is active and correctly configured.

Nutanix Cloud Clusters on AWS Administration Guide

Nutanix Best Practices for Cloud Account Management

When creating user VM subnets for multiple NC2 clusters in AWS, the best approach is to create guest-VM subnets for each cluster. This ensures that each cluster has its own dedicated subnets, which simplifies network management and avoids potential IP conflicts.

Advantages of Dedicated Subnets:

Isolation: Each cluster operates in its own subnet, providing better isolation and security.

Management: Easier to manage and troubleshoot network issues when each cluster has its own subnets.

Scalability: More scalable as each subnet can be managed and expanded independently.

Steps to Create Guest-VM Subnets:

Identify the IP range for each subnet.

In the AWS VPC console, create a new subnet for each cluster using the identified IP ranges.

Associate the new subnets with the respective clusters during or after the cluster deployment process.

Why Not Shared Subnets:

Shared subnets could lead to IP conflicts and make network management more complex, especially as the number of clusters grows.

Nutanix Cloud Clusters on AWS Administration Guide

AWS VPC Subnet Creation Documentation

The role of 'Customer Administrator' in Nutanix Cloud Integration with AWS (NC2) is designed to meet the requirements of creating and managing multiple organizations and clusters, as well as managing user access for the entire company.

Roles and Permissions:

Customer Administrator: This role has the broadest set of permissions, allowing the user to create and manage organizations, clusters, and user access across the entire company. It encompasses administrative control over multiple aspects of the NC2 environment.

Capabilities:

Organization Management: Ability to create and manage multiple organizations.

Cluster Management: Full control over creating, configuring, and managing clusters.

User Access Management: Manage user roles and permissions, ensuring that the right individuals have access to the necessary resources.

Why Not Other Roles:

Organization Administrator: Limited to managing organizations but not clusters and user access at the company level.

Customer Security Administrator: Focuses on security aspects, lacking broader administrative capabilities.

Cluster Administrator: Limited to managing clusters without the ability to manage organizations and user access comprehensively.

Nutanix Cloud Clusters on AWS Administration Guide

Nutanix Role-Based Access Control Documentation

The clusters that are to be protected must be registered with the same instance of Prism Central (Answer C):

For Cluster Protect to function correctly, all clusters intended for protection must be registered under the same Prism Central instance. This ensures consistent management and coordination of protection policies and operations across clusters.

The Cluster Protect feature requires AOS version 6.7 or higher (Answer D):

Cluster Protect is a feature that is available starting from AOS version 6.7. To utilize this feature, ensure that the Nutanix clusters are running this version or a newer one.

Nutanix Cluster Protection Documentation

Nutanix AOS Release Notes

To protect workloads on an NC2 cluster on AWS, deploying strategies that ensure high availability and disaster recovery are essential. The two valid options are:

Create a Second NC2 Cluster in a Different Availability Zone:

High Availability: Deploying a second NC2 cluster in a different availability zone ensures that workloads can be quickly recovered in case of an availability zone failure.

Disaster Recovery: This setup enables asynchronous replication between clusters, providing a robust disaster recovery solution.

Use an Existing On-Prem Nutanix Cluster as a Disaster Recovery Target:

Hybrid DR: Leveraging an existing on-premises Nutanix cluster for disaster recovery provides a cost-effective and efficient DR solution.

Replication: Set up replication policies to ensure data is consistently copied from the NC2 cluster on AWS to the on-premises cluster.

Why Not Other Options:

One-node cluster in another availability zone: Not a valid DR solution as a single-node cluster cannot provide the required resilience and high availability.

Deploy a cluster across two availability zones: While this can enhance availability, it is not a typical approach for Nutanix clusters which are designed to operate within a single availability zone for simplicity and performance reasons.

Nutanix Cloud Clusters on AWS Administration Guide

Nutanix Disaster Recovery Best Practices

AWS Availability Zones and Disaster Recovery Documentation
