NSE6_FAC-6.4: Fortinet NSE 6 - FortiAuthenticator 6.4

Realms are a way to delegate user accounts, user groups and permissions per domain when they are authenticating on a single FortiAuthenticator device. A realm is a logical grouping of users and groups based on a common attribute, such as a domain name or an IP address range. Realms allow administrators to apply different authentication policies and settings to different groups of users based on their realm membership.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/user-management#realms

HTTPS and SSH are the default management access protocols for administrative access for FortiAuthenticator. HTTPS allows administrators to access the web-based GUI of FortiAuthenticator using a web browser and a secure connection. SSH allows administrators to access the CLI of FortiAuthenticator using an SSH client and an encrypted connection. Both protocols require the administrator to enter a valid username and password to log in.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administration-guide/906179/system-settings#management-access

Adaptive Authentication is a feature that allows administrators to bypass the need for two-factor authentication for users accessing from specific secured networks. Adaptive Authentication uses geolocation information from IP addresses to determine whether a user is accessing from a trusted network or not. If the user is accessing from a trusted network, FortiAuthenticator can skip the second factor of authentication and grant access based on the first factor only.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/authentication-policies#adaptive-authentication

To allow members of only specific AD groups to participate in FSSO with their corporate FortiGate firewalls, the administrator can configure SSO groups and assign them to FortiGate groups. SSO groups are groups of users or devices that are defined on FortiAuthenticator based on various criteria, such as user group membership, source IP address, MAC address, or device type. FortiGate groups are groups of users or devices that are defined on FortiGate based on various criteria, such as user group membership, firewall policy, or authentication method. By mapping SSO groups to FortiGate groups, the administrator can control which users or devices can access the network resources protected by FortiGate.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/single-sign-on#sso-groups

Captive portal policies are used to define the conditions and settings for presenting a captive portal to users who need to authenticate before accessing the network. A captive portal policy consists of a set of conditions and a set of actions. The conditions can be based on various attributes, such as source IP address, MAC address, user group, device type, or RADIUS client. The actions can include redirecting the user to a specific portal, applying a specific authentication method, or assigning a specific VLAN or firewall policy. A single policy can have multiple conditions, and all conditions in the policy must match before a user is presented with the captive portal.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/portal-services#captive-portal-policies

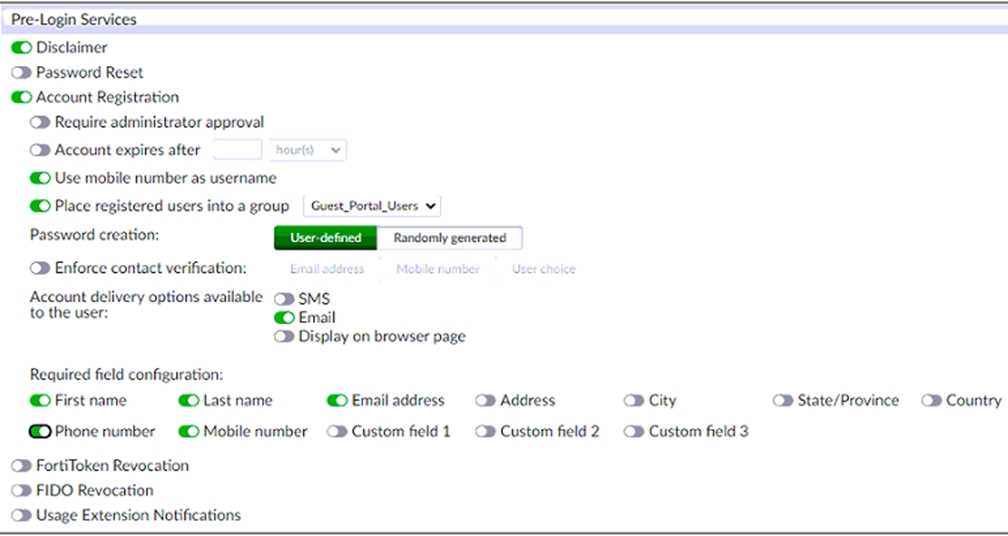

The screenshot shows that the account registration feature is enabled for the guest portal and that the guest group is set to Guest_Portal_Users. This means that all guest accounts created using this feature will be placed under that group1. The screenshot also shows that email validation is enabled for the guest portal and that the email validation link expires after 24 hours. This means that all accounts registered through the guest portal must be validated through email within that time frame1.

Reference: 1 https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/guest-management#account-registration

Reference: https://www.fortinet.com/content/dam/fortinet/assets/data-sheets/fortitoken.pdf HOTP stands for HMAC-based One-time Password, which is an OATH-based standard to generate event-based OTP tokens. HOTP uses a cryptographic hash function called HMAC (Hash-based Message Authentication Code) to generate OTPs based on two pieces of information: a secret key and a counter. The counter is incremented by one after each OTP generation, creating an eventbased sequence of OTPs.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/two-factor-authentication#hotp

Both sponsor and administrator account permissions are assigned using admin profiles. An admin profile is a set of permissions that defines what actions an administrator or a sponsor can perform on

FortiAuthenticator. An admin profile can be assigned to an admin group or an individual admin user.

A sponsor is a special type of admin user who can create and manage guest accounts on behalf of other users.

Reference: https://docs.fortinet.com/document/fortiauthenticator/6.4.0/administrationguide/ 906179/administrators#admin-profiles
