Fortinet NSE7_PBC-7.2 Practice Test - Questions Answers, Page 2

The correct answer is C and D. FortiGate NGFW can inspect north-south container traffic with label aware policies and FortiGate NGFW and FortiSandbox can be used to secure container traffic.

According to the Fortinet documentation for container security1, FortiGate NGFW can provide the following benefits for securing container infrastructure:

It can inspect north-south traffic between containers and external networks using label aware policies, which allow for dynamic policy enforcement based on Kubernetes labels and metadata.

It can integrate with FortiSandbox to provide advanced threat protection for container traffic, by sending suspicious files or URLs to a cloud-based sandbox for analysis and detection.

It can leverage FortiGuard Security Services to provide real-time threat intelligence and updates for container traffic, such as antivirus, web filtering, IPS, and application control.

The other options are incorrect because:

FortiGate NGFW cannot be placed between each application container for north-south traffic inspection, as this would create unnecessary complexity and overhead. Instead, FortiGate NGFW can be deployed at the edge of the container network or as a sidecar proxy to inspect traffic at the ingress and egress points.

FortiGate NGFW cannot connect to the worker node and protect the container, as this would not provide sufficient visibility and control over the container traffic. Instead, FortiGate NGFW can leverage the native Kubernetes APIs and services to monitor and secure the container traffic.

1: Fortinet Documentation Library - Container Security

A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels.Reference:

Creating the TGW and related resources

Configuring TGW route tables

FortiGate Public Cloud 7.2.0 - Fortinet Documentation

Updating the route table and adding an IAM policy

Immutable infrastructure is a DevOps approach that emphasizes the creation of disposable resources instead of modifying existing ones1.This approach helps to achieve stability, consistency, and predictability in IT operations by reducing the risk of configuration drift and eliminating stateful components1.

One way to implement immutable infrastructure is to use a blue-green deployment strategy, which runs two live environments for configuration changes2. The blue environment is the current production environment, while the green environment is the new version of the application or service.When the green environment is ready, the traffic is switched from blue to green, and the blue environment is destroyed or kept as a backup2. This way, there is no need to update or patch the existing infrastructure, but rather replace it with a new one.

1:Immutable Infrastructure, Architecture, and its benefits

2:Introduction to Immutable Infrastructure -- BMC Software | Blogs

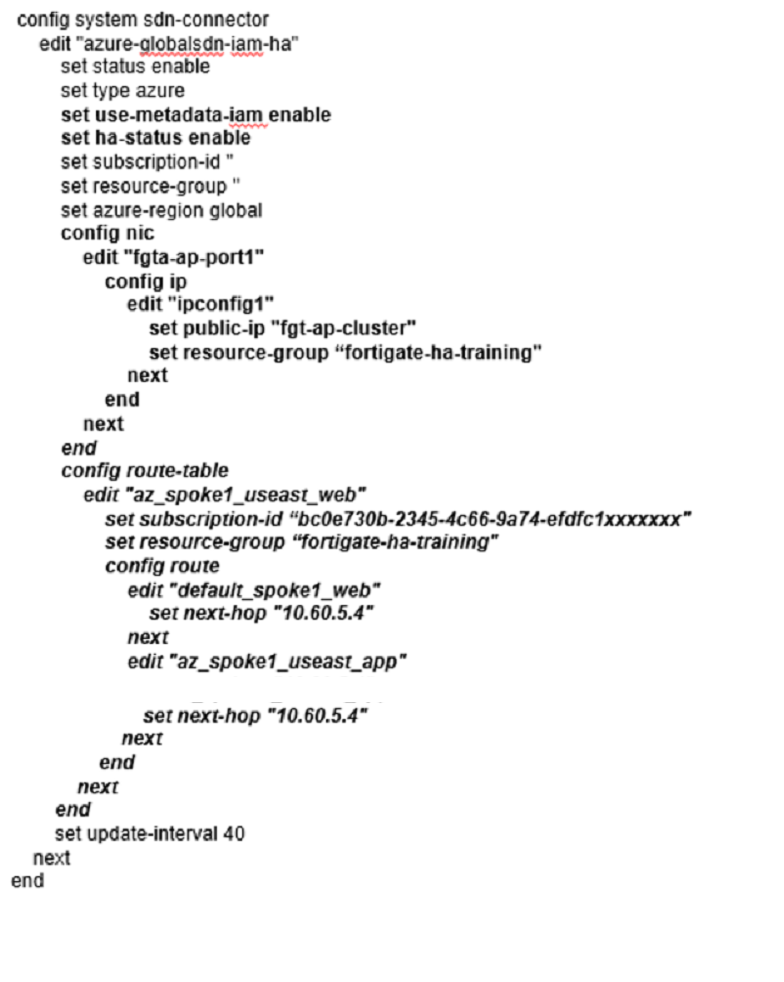

A is correct because in this deployment, the passive FortiGate issues API calls to Azure to update the routing table and the public IP address of the active FortiGate123. This way, the traffic is redirected to the new active FortiGate after a failover.

B is incorrect because the vdom-exception command is used to exclude specific VDOMs from being synchronized in an HA cluster. This command is not related to this deployment scenario.

C is incorrect because Microsoft Azure does provide an SLA for API calls. According to the Azure Service Level Agreements, the API Management service has a monthly uptime percentage of at least 99.9% for the standard tier and higher.

D is correct because by default, the configuration is not synchronized between the primary and secondary devices in this deployment.The administrator needs to manually enable configuration synchronization on both devices123.Alternatively, the administrator can use FortiManager to manage and synchronize the configuration of both devices4.

A is incorrect because the FortiGate public IP is not the next-hop for all the traffic. The FortiGate public IP is only used for incoming traffic from the internet.The Azure load balancer distributes the incoming traffic to the active FortiGate VM based on a health probe123. The FortiGate public IP is not used for outgoing traffic or internal traffic.

B is correct because an internal load balancer listener is the next-hop for outgoing traffic. The internal load balancer listener is configured with a floating IP address that is assigned to the active FortiGate VM.The internal load balancer listener also has a health probe to monitor the status of the FortiGate VMs123. The internal load balancer listener forwards the outgoing traffic to the internet through the public load balancer.

C is incorrect because you do not need to add a route to the Microsoft VIP used for the health check.The Microsoft VIP is an internal IP address that is used by the Azure load balancer to send health probes to the FortiGate VMs123. The Microsoft VIP is not reachable from outside the Azure network and does not require any routing configuration on the FortiGate VMs.

D is correct because a dedicated management interface can be used for load balancing.In this deployment, port4 is used as a dedicated management interface that connects to the management network3. The dedicated management interface can be used to access the FortiGate VMs for configuration and monitoring purposes.The dedicated management interface can also be used to synchronize the configuration and session information between the primary and secondary devices in an HA cluster2.

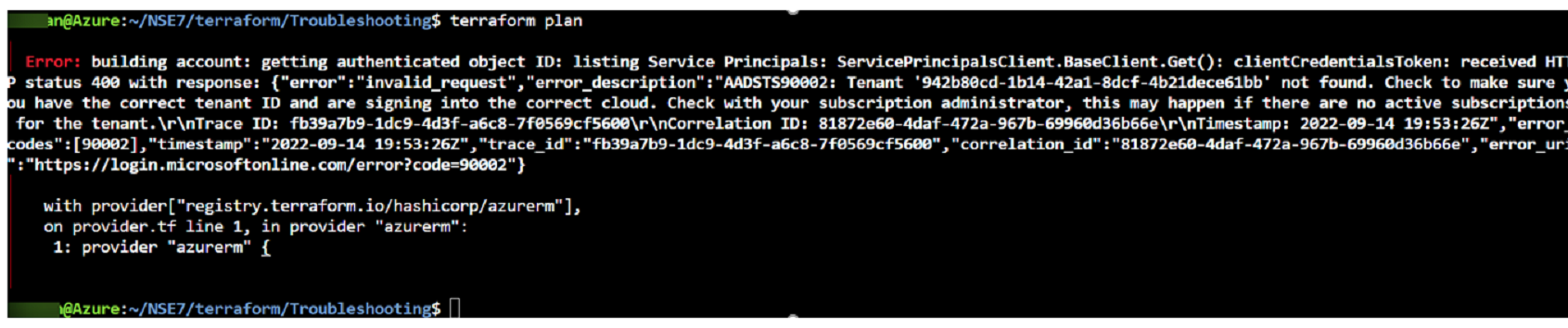

A is incorrect because the terraform plan command will not deploy any resources at all. It will only show the changes that would be made if the terraform apply command was run.The error message in the exhibit indicates that the service principal details are invalid, which means that Terraform cannot authenticate to Azure and cannot create any resources1.

B is incorrect because you can run the terraform apply command without running the terraform plan command first.The terraform apply command will automatically generate a new plan and prompt you to approve it before applying it2. However, running the terraform plan command first can help you preview the changes and avoid any unwanted or unexpected actions.

C is correct because you must run the terraform init command once before the terraform plan command. The terraform init command initializes a working directory containing Terraform configuration files.It downloads and installs the provider plugins required for your configuration, such as the Azure provider2.It also creates a hidden directory called .terraform to store the plugin binaries and other metadata1. Without running the terraform init command, the terraform plan command will fail because it cannot find the required plugins or modules.

D is correct because the terraform plan command makes Terraform do a dry run. A dry run is a simulation of what would happen if you executed a certain action, without actually performing it.The terraform plan command creates an execution plan, which is a description of the actions that Terraform would take to make your infrastructure match your configuration2. The execution plan shows you what resources will be created, modified, or destroyed, and what attributes will be changed.The execution plan does not affect your infrastructure or state file until you apply it with the terraform apply command1.

B) FortiGate A and FortiGate B are two independent devices. This means that they are not part of a cluster or a high availability group, and they do not share the same configuration or state information.They are configured as standalone FortiGates with standalone configuration synchronization enabled1.This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname1. D. It does not synchronize the FortiGate hostname. This is one of the settings that are excluded from the standalone configuration synchronization, as mentioned above.The hostname is a unique identifier for each FortiGate device, and it should not be changed by the synchronization process1.

The other options are incorrect because:

FortiGate-VM instances are not scaled out automatically according to predefined workload levels.This is a feature of the auto scaling solution for FortiGate-VM on Azure, which requires a different deployment and configuration than the one shown in the exhibit2. The exhibit shows a static deployment of two FortiGate-VM instances behind an Azure load balancer, which does not support auto scaling.

By default, FortiGate does not use FGCP.FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group3. However, the exhibit shows that the FortiGates are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

A) Use the terraform destroy command.This command is used to remove all the resources that were created using the Terraform configuration1. It is the opposite of the terraform apply command, which is used to create resources. The terraform destroy command will first show a plan of what resources will be destroyed, and then ask for confirmation before proceeding. The command will also update the state file to reflect the changes. D. The administrator must manually delete the Linux server.This is because the Linux server was not deployed using Terraform, but using AWS Marketplace2. Therefore, Terraform does not have any information about the Linux server in its state file, and cannot manage or destroy it. The administrator will have to use the AWS console or CLI to delete the Linux server manually.

The other options are incorrect because:

There is no terraform validate command.The correct command is terraform plan, which is used to show a plan of what changes will be made by applying the configuration3. However, this command does not delete any resources, it only shows what will happen if terraform apply or terraform destroy is run.

There is no terraform destroy all command.The correct command is terraform destroy, which will destroy all the resources in the current configuration by default1. There is no need to add an all argument to the command.

To deploy a FortiGate HA solution in AWS using Terraform, you need to create an AWS IAM user with permissions to access the AWS resources and services required by the FortiGate-VM. You also need to use CloudShell to install Terraform, which is a tool for building, changing, and versioning infrastructure as code.

Deploying FortiGate-VM using Terraform | AWS Administration Guide

Setting up IAM roles | AWS Administration Guide

Launching the instance using roles and user data | AWS Administration Guide

Terraform by HashiCorp
