Salesforce Certified MuleSoft Integration Architect I Practice Test - Questions Answers, Page 3

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you'll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

<jms:listener config-ref='config' destination='${inputQueue}' primaryNodeOnly='false'/>

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Context of the question is about managing and governing mule applications deployed on Anypoint platform.

Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.

Mule Ref Doc :https://docs.mulesoft.com/api-manager/2.x/getting-started-proxy

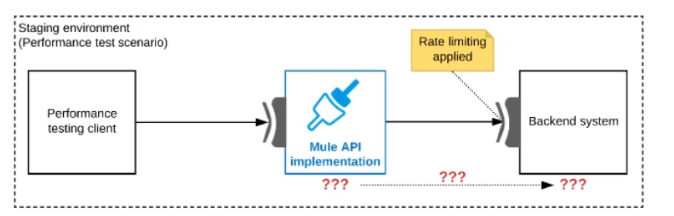

Correct answer is Create a mocking service that replicates the backend system's production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests

* MUnit is for only Unit and integration testing for APIs and Mule apps. Not for performance Testing, even if it has the ability to Mock the backend.

* Bypassing the backend invocation defeats the whole purpose of performance testing. Hence it is not a valid answer.

* Scaled down performance tests cant be relied upon as performance of API's is not linear against load.

* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.

* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.

* Each authorized application is configured with credentials: client_id and client_secret.

* At runtime, authorized applications provide the credentials with each request to the API implementation.

MuleSoft

Reference:https://docs.mulesoft.com/api-manager/2.x/policy-mule3-client-id-based-policies

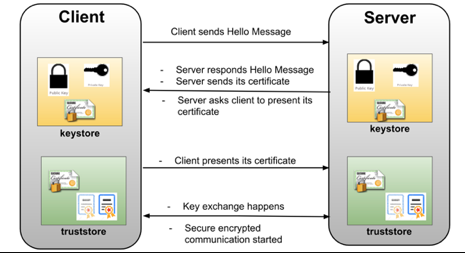

1 way SSL :The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers:the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server.For clients:the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer isSupport for TLS mutual (two-way) authentication with HTTP clients.

*As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-based protocols. Non-HTTP-based programmatic interfaces are not APIs.

*HTTP-based programmatic interfaces are APIs even if they don't use REST or JSON. Hence implementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are not using HTTP.

*One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.

*Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.

Considering the above points only correct option is

-XML over ActiveMQ

- XML over SFTP

- XML/REST over HTTPS

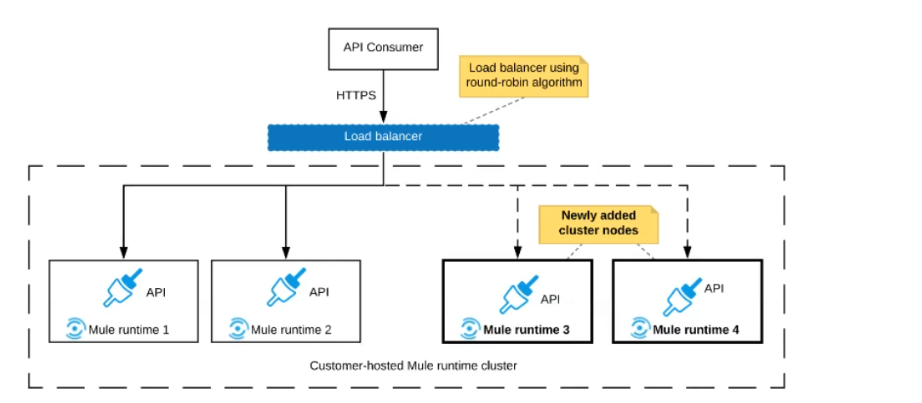

* Organization can continue using existing load balancer even if backend application changes are there. So option A is ruled out.* As Mule runtime is within their datacenter, this model is RTF and not PCE. So option C is ruled out.Mule runtime deployment model within their datacenter, so each Mule runtime hosts several Mule applications -- This mean PCE or Hybird not RTF - Also mentioned in Question is that - Mule runtime is hosting several Mule Application, so that also rules out RTF and as for hosting multiple Application it will have Domain project which need redesign to make it microservice architecture---------------------------------------------------------------------------------------------------------------Answer:: Required redesign of Mule applications to follow microservice

*Sharing Mule applications as templates is a great way to share your work with other people who are in your organization in Anypoint Platform. When they need to build a similar application they can create the mule application using the template project from Anypoint studio.

*Anypoint Templates are designed to make it easier and faster to go from a blank canvas to a production application. They're bit for bit Mule applications requiring only Anypoint Studio to build and design, and are deployable both on-premises and in the cloud.

*Anypoint Templates are based on five common data Integration patterns and can be customized and extended to fit your integration needs. So even if your use case involves different endpoints or connectors than those included in the template, they still offer a great starting point.

Some of the best practices while creating the template project:- Define the common error handler as part of template project, either using pom dependency or mule config file - Define common logger/audit framework as part of the template project - Define the env specific properties and secure properties file as per the requirement - Define global.xml for global configuration - Define the config file for connector configuration like Http,Salesforce,File,FTP etc - Create separate folders to create DWL,Properties,SSL certificates etc - Add the dependency and configure the pom.xml as per the business need - Configure the mule-artifact.json as per the business need
