Salesforce Certified MuleSoft Integration Architect I Practice Test - Questions Answers, Page 4

* If your API implementation involves putting a load balancer in front of your APIkit application, configure the load balancer to redirect URLs that reference the baseUri of the application directly. If the load balancer does not redirect URLs, any calls that reach the load balancer looking for the application do not reach their destination.

* When you receive incoming traffic through the load balancer, the responses will go out the same way. However, traffic that is originating from your instance will not pass through the load balancer. Instead, it is sent directly from the public IP address of your instance out to the Internet. The ELB is not involved in that scenario.

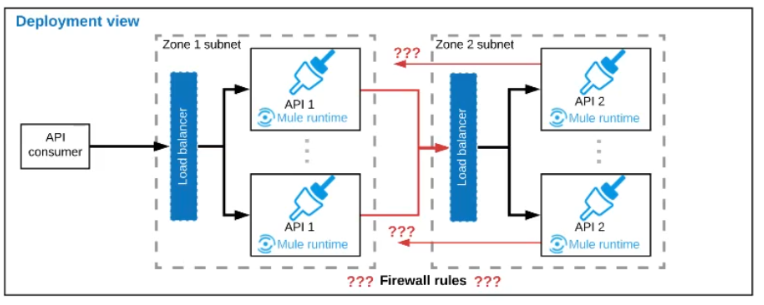

* The question says ''each API is deployed to multiple redundant Mule runtimes'', that seems to be a hint for self hosted Mule runtime cluster. Set Inbound allowed for the LB, outbound allowed for runtime to request out.

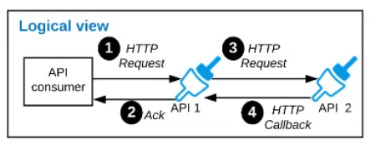

* Hence correct way is to enable communication from each API's Mule Runtimes and Network zone to the load balancer of the other API. Because communication is asynchronous one

Correct answer is Application A accesses the persistent object store via the Object Store REST API Application B uses the Object Store connector to access a persistent object * Object Store v2 lets CloudHub applications store data and states across batch processes, Mule components and applications, from within an application or by using the Object Store REST API. * On-premise Mule applications cannot use Object Store v2. * You can select Object Store v2 as the implementation for Mule 3 and Mule 4 in CloudHub by checking the Object Store V2 checkbox in Runtime Manager at deployment time. * CloudHub Mule applications can use Object Store connector to write to the object store * The only way on-premises Mule applications can access Object Store v2 is via the Object Store REST API. * You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

* 'The existence of a public Anypoint Exchange portal to which the asset has been published' - question does not mention anything about the public portal. Beside the public portal is open to the internet, to anyone. * If you cannot find an asset in the current business group scopes, search in other scopes. In the left navigation bar click All assets (assets provided by MuleSoft and your own master organization), Provided by MuleSoft, or a business group scope. User belonging to one Business Group can see assets related to his group only

Reference: https://docs.mulesoft.com/exchange/to-find-info https://docs.mulesoft.com/exchange/asset-details Correct answer is The business groups to which the user belongs

* Roles are business group specific. Configure identity management in the Anypoint Platform master organization. As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * Roles and permissions can be set up at business group and organization level also. But Identity Management setup is only done at Organization level * Business groups are self-contained resource groups that contain Anypoint Platform resources such as applications and APIs. Business groups provide a way to separate and control access to Anypoint Platform resources because users have access only to the busine

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don't guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don't guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU

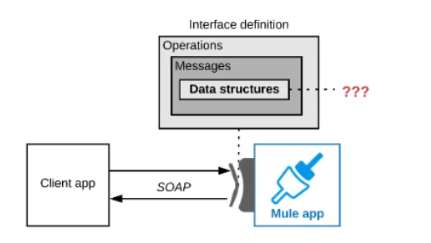

Answer:: XSD In this approach to developing a web service, you begin with-----------------------------------------------------------------------------------------------------------------

Reference: https://www.w3schools.com/xml/schema_intro.asp

* 'Create a Mule domain project that maintains the credentials as Mule domain-shared resources' is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization's data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized -- and potentially malicious -- use by anyone with access to the Mule application

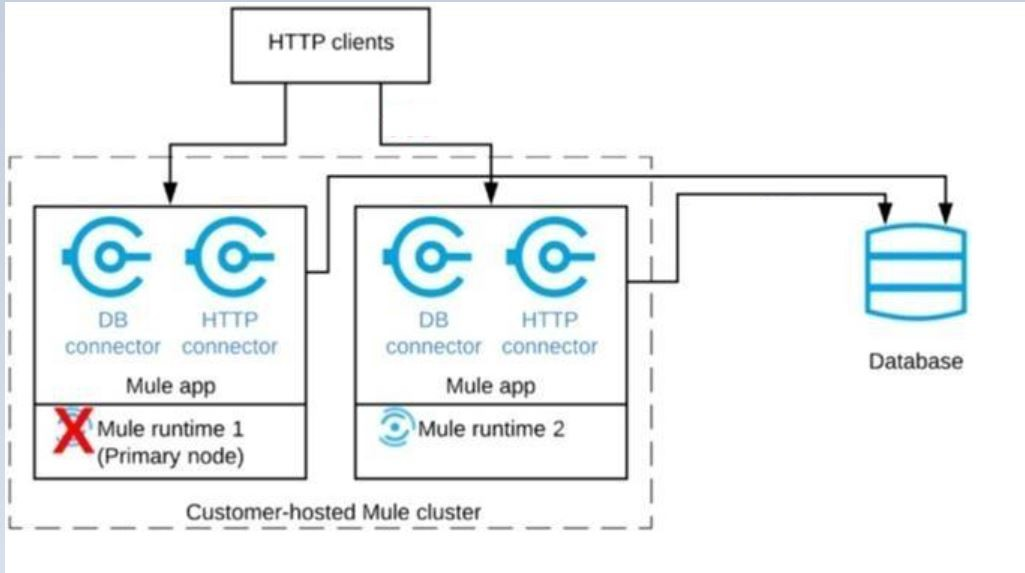

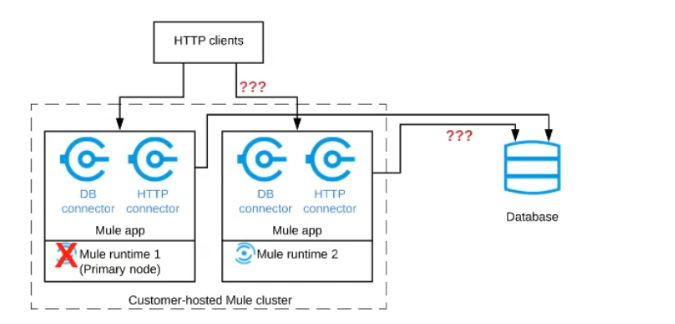

Correct answer is Database polling continues Only HTTP requests sent to the remaining node continue to be accepted. : Architecture descripted in the question could be described as follows.When node 1 is down , DB polling will still continue via node 2 . Also requests which are coming directly to node 2 will also be accepted and processed in BAU fashion. Only thing that wont work is when requests are sent to Node 1 HTTP connector. The flaw with this architecture is HTTP clients are sending HTTP requests directly to individual cluster nodes. By default, clustering Mule runtime engines ensures high system availability. If a Mule runtime engine node becomes unavailable due to failure or planned downtime, another node in the cluster can assume the workload and continue to process existing events and messages

Correct answer is MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in each datacenter There are two things to note about the question which can help us figure out correct answer.. * Business data must be exchanged over these private network connections which means we can not use MuleSoft provided Cloudhub option. So we are left with either customer hosted runtime in external cloud provider or customer hosted runtime in their own premises. As customer does not use AWS at the moment. Hence that don't have the immediate option of using Customer-hosted runtime plane in multiple AWS regions. hence the most suitable option for runtime plane is Customer-hosted runtime plane in each datacenter * Metadata has no limitation to reside in organization premises. Hence for control plane MuleSoft hosted Anypoint platform can be used as a strategic solution.

Hybrid is the best choice to start. Mule hosted Control plane and Customer hosted Runtime to start with. Once they mature in cloud migration, everything can be in Mule hosted.
