Cisco 300-720 Practice Test - Questions Answers, Page 7

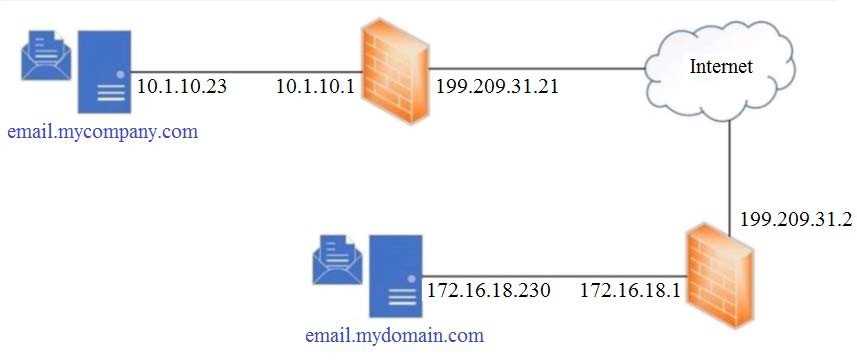

The SPF record for mycompany.com is shown in the exhibit as:

v=spf1 a mx ip4:199.209.31.21 -all

This means that the domain mycompany.com authorizes the following sources to send email on its behalf:

The A record of mycompany.com, which resolves to 199.209.31.21

The MX record of mycompany.com, which points to mail.mycompany.com, which also resolves to 199.209.31.21

The IP address 199.209.31.21

The -all qualifier means that any other source is not authorized and should be rejected.

Therefore, the correct answer is C.

Reference:

SPF Record Syntax

Define your SPF record唯asic setup

A content filter action is an operation that Cisco ESA performs on a message if it matches the conditions of a content filter rule, such as headers, envelope, body, attachments, etc.

Quarantine is a valid content filter action that allows Cisco ESA to store the message in a quarantine area for further review or release by an administrator or an end user.

The other options are not valid content filter actions on Cisco ESA.

Reference: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-3 and page 8-7.

Reference: https://www.cisco.com/c/en/us/td/docs/security/esa/esa12-0/user_guide/b_ESA_Admin_Guide_12_0/b_ESA_Admin_Guide_chapter_01010.html#con_1158022

Virtual gateways are a feature that allows Cisco ESA to host multiple email domains on a single physical interface, using different IP addresses and hostnames for each domain.

When virtual gateways are configured, two distinct attributes are allocated to each virtual gateway address:

Domain, which is the email domain name that is associated with the virtual gateway address, such as mycompany.com or mydomain.com.

IP address, which is the IPv4 or IPv6 address that is assigned to the virtual gateway address, such as 199.209.31.X or 2001:db8::X.

The other options are not attributes that are allocated to each virtual gateway address on Cisco ESA.

Reference: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 5-14 and page 5-15.

Reference: https://www.cisco.com/c/en/us/support/docs/security/email-security-appliance/118542-qa-esa- 00.html

When Cisco ESA is configured to perform antivirus scanning, the default timeout value is 60 seconds, which means that Cisco ESA will wait for 60 seconds for the antivirus engine to scan a message before applying the configured action for unscannable messages, such as deliver, drop, or quarantine.

Reference: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 7-3.

Reference: https://www.cisco.com/c/en/us/td/docs/security/esa/esa12-0/user_guide/b_ESA_Admin_Guide_12_0/b_ESA_Admin_Guide_chapter_01011.html

The global setting that is configured under Cisco ESA Scan Behavior is the actions for unscannable messages due to attachment type. This setting allows the administrator to specify what action to take when a message contains an attachment that cannot be scanned by the appliance, such as encrypted or password-protected files. The possible actions are:

Deliver - Deliver the message normally.

Drop - Drop the message silently without notifying the sender or recipient.

Quarantine - Quarantine the message in a specified policy quarantine.

Bounce - Bounce the message back to the sender with a specified reason.

Reference:

Scan Behavior

Reference: https://community.cisco.com/t5/email-security/cisco-ironport-esa-security-services-scanbehavior-impact-on-av/td-p/3923243

The safelist/blocklist (SLBL) is a feature that allows Cisco ESA to accept or reject messages from specific email addresses or domains, based on the configuration of mail flow policies or end user preferences.

The action that provides direct access to view the SLBL on Cisco ESA is to export the SLBL to a .csv file, which can be done from the web user interface by selecting Security Services > Safelist/Blocklist and clicking Export.

The other options do not provide direct access to view the SLBL on Cisco ESA.

Reference: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-13 and page 6-14.

Reference: https://www.cisco.com/c/en/us/support/docs/security/email-security-appliance/117922-technote- esa-00.html

A policy quarantine is a type of quarantine that allows Cisco ESA to store messages that match certain criteria, such as virus, spam, or DLP verdicts, for further review or release by an administrator or an end user.

A scenario that prevents a message from being sent to the quarantine as an action in the scan behavior on Cisco ESA is when a policy quarantine is missing, which means that no policy quarantine has been created or enabled on Cisco ESA.

The other options do not prevent a message from being sent to the quarantine as an action in the scan behavior on Cisco ESA.

Reference: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 10-2 and page 10-3.

Content filters are rules that allow Cisco ESA to perform actions on messages based on predefined or custom conditions, such as headers, envelope, body, attachments, etc.

The two primary components of content filters are:

Conditions, which are the criteria that determine whether a message matches a content filter rule or not, such as message size, sender address, attachment type, etc.

Actions, which are the operations that Cisco ESA performs on a message if it matches the conditions of a content filter rule, such as deliver, drop, quarantine, encrypt, etc.

The other options are not primary components of content filters on Cisco ESA.

Reference: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-3 and page 8-4.

Reference: https://www.cisco.com/c/en/us/td/docs/security/ces/user_guide/esa_user_guide_11-1/b_ESA_Admin_Guide_ces_11_1/b_ESA_Admin_Guide_chapter_01010.pdf

To enable domain protection for the organization, the administrator must configure an outgoing mail policy that matches the sender and the from headers of the email. The sender header is the envelope sender address that is used by SMTP to route the email. The from header is the address that is displayed to the recipient as the source of the email. These headers are used to generate and verify a DomainKeys Identified Mail (DKIM) signature, which is a cryptographic method of validating the authenticity and integrity of an email message.

The other headers are not relevant for domain protection. The message-ID header is a unique identifier for each email message. The URL reputation header is a score that indicates the likelihood of a URL being malicious. The mail-from header is an alias for the sender header.

Reference:

Domain Protection

DKIM Signing
