Which protocol should be used to verify the connectivity for different media paths found during a call using ICE?
STUN
RTP
SNMP
TURN
Which SIP media encryption mode is applied by default for newly created zones in the Cisco Expressway?
Off
Best Effort
Auto
Force Encrypted
Cisco media traversal technology has enabled a secure environment where internal video endpoints call and receive calls from external video endpoints. How does the Expressway-C and Expressway-E communicate?
Expressway-C establishes an outgoing request to Expressway-E, enabling the Expressway-E in the DMZ to notify the internal Expressway-C of an incoming call from an external endpoint.
Internal endpoints are registered to Expressway-E in the DMZ. Expressway-C, which is also in the DMZ, will receive and make calls on behalf of Expressway- E because they are in the same network.
Expressway-E establishes an outgoing request to Expressway-C, enabling the Expressway-C in the DMZ to notify the internal Expressway-E of an incoming call from an external endpoint.
Internal endpoints are registered to Expressway-C in the DMZ. Expressway-E, which is also in the DMZ, will receive and make calls on behalf of Expressway- C because they are in the same network.
Which dial plan component is configured in Expressway-C to route a call to the Cisco UCM?
call routing
traversal subzone
call policy
search rule
Which attribute in the SDP for a call is affected by the static NAT address configuration in an Expressway-E?
connection
name
version
bandwidth
Which describes what could done on the Expressway-E to successfully route calls from Expressway-C on the internal network to the Internet?
Application layer gateway could be enabled to bridge the media traffic.
A static NAT route could be added to the firewall to bridge the two networks.
The Expressway-E could be enabled for Dual-NIC capability.
The Expressway-E could be enabled for interworking.

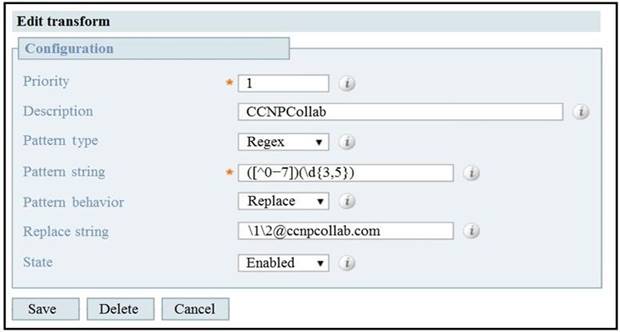

Refer to the exhibit. What is the result of a transformation applied to alias 88514?
88513@ccnpcollab com
When configuring a Cisco Expressway solution and need to design the dial plan with various rules for URIs and numbers coming through the device. To do so, it is important that some dial plan rules are applied in a certain order. When configuring the transform section, you must know the range of the priorities.
Which range is correct?
any number in the drop-down menu
any number in the dialog box
any number between 1-128
any number between 1-65534
Which zone is required on a B2B deployment between Expressway-C and Expressway-E?
traversal zone
DNS zone
default zone
neighbor zone
Which mode should be used when Call Policy is configured on Expressways?
extended CPL
local CPL, policy service, and off
on
remote CPL
