Question 21

Report Export Collapse

Which of the following are characteristics of 802.1p? (Choose two)

802.1p adds 16 bits to the Layer 2 header,
802.1p adds 16 bits to the Layer 2 header,
802.1p adds 16 bits to the Layer 3 header.
802.1p adds 16 bits to the Layer 3 header.
802.1p specifies 64 different priority levels.
802.1p specifies 64 different priority levels.
802.1p uses a field in the 802.1Q header.
802.1p uses a field in the 802.1Q header.
802.1p uses a field in the Layer 3 IP header
802.1p uses a field in the Layer 3 IP header
802.1p defines a 3-bit Class of Service field.
802.1p defines a 3-bit Class of Service field.
Suggested answer: D, F
asked 23/09/2024
Faria Sah
40 questions

Question 22

Report Export Collapse

Which of the following BEST describes a SAP when regarding QoS?

A point in the network where EXP bits can be mapped to one of eight predefined FCs, each one with its own queue.
A point in the network where EXP bits can be mapped to one of eight predefined FCs, each one with its own queue.
A logical point in a service tunnel where all of customer traffic is aggregated.
A logical point in a service tunnel where all of customer traffic is aggregated.
A point at which the initial classification of customer traffic occurs.
A point at which the initial classification of customer traffic occurs.
A point in the network where QoS parameters are discarded in favor of lower-level hardware queuing functions, such as LLI (Link Layer Interleave).
A point in the network where QoS parameters are discarded in favor of lower-level hardware queuing functions, such as LLI (Link Layer Interleave).
A point in the network where traffic flows from multiple different services are queued together, based on forwarding class.
A point in the network where traffic flows from multiple different services are queued together, based on forwarding class.
Suggested answer: C
asked 23/09/2024
Jordi Nogués
41 questions

Question 23

Report Export Collapse

Individual application streams are considered microflows, whereas __________ are considered macroflows.

SAPs
SAPs
SDPs
SDPs
Services
Services
Queues
Queues
Schedulers
Schedulers
Forwarding classes
Forwarding classes
Suggested answer: F
asked 23/09/2024
Phanel Xavier
50 questions

Question 24

Report Export Collapse

What is the maximum number of SAP-ingress policies that can be applied on a SAP?

1
1
2
2
3
3
4
4
5
5
8
8
Suggested answer: A
asked 23/09/2024
Kshitij Vyas
40 questions

Question 25

Report Export Collapse

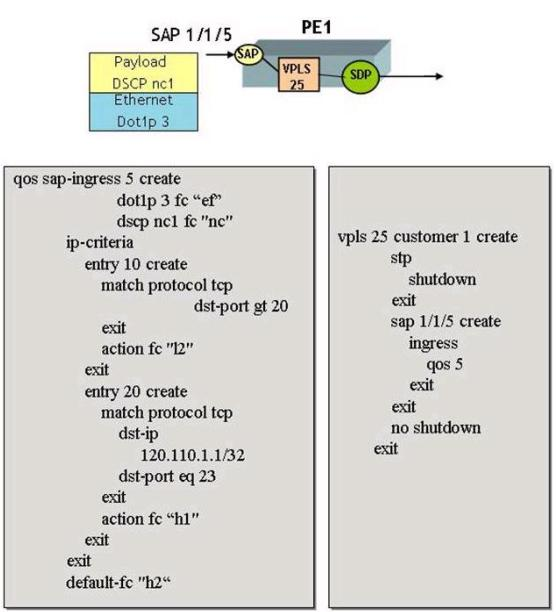

Click the exhibit button below.

Nokia 4A0-107 image Question 25 80287 09232024011844000000

Based on the configuration shown below, name the forwarding class to be associated with a TCP packet encapsulated inside an Ethernet frame that arrives on SAP 1/1/5 with the following characteristics:

Destination IP address = 120.110.1.1

TCP port number = 23

DSCP value = nc1

Dot1pvalue = 3

H2
H2
NC
NC
L2
L2
EF
EF
H1
H1
BE
BE
Suggested answer: C
asked 23/09/2024
Garwin Liu
38 questions

Question 26

Report Export Collapse

Which of the following are possible criteria for classifying packets at the network port ingress on the Nokia 7750 SR? (Choose three)

The EXP bits in the MPLS header.
The EXP bits in the MPLS header.
The packet's source and destination IP addresses.
The packet's source and destination IP addresses.
The packet's DSCP bits.
The packet's DSCP bits.
The dot1p bits in the frame header.
The dot1p bits in the frame header.
The ID of an SDP that is transporting the packet.
The ID of an SDP that is transporting the packet.
Suggested answer: A, C, D
asked 23/09/2024
Jennifer Okai Addey
40 questions

Question 27

Report Export Collapse

A default network policy is applied to all router interfaces associated with network ports.

TRUE
TRUE
FALSE
FALSE
Suggested answer: A
asked 23/09/2024
Exam Prepping
29 questions

Question 28

Report Export Collapse

Which of the following are NOT ingress matching criteria for a network policy? (Choose two)

TCP port numbers
TCP port numbers
LSP EXP
LSP EXP
DSCP
DSCP
Source and destination IP addresses
Source and destination IP addresses
Dot1p priority
Dot1p priority
Suggested answer: A, D
asked 23/09/2024
David Galiata
37 questions

Question 29

Report Export Collapse

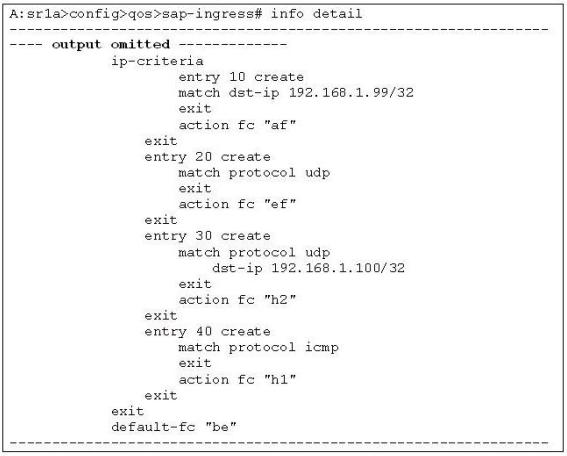

Click the exhibit button below. A partial SAP-ingress policy configuration is shown below. A UDP video stream is sent to a PC with IP address 192.168.1.100. Given the SAP-ingress policy, to which forwarding class is the traffic matched?

Nokia 4A0-107 image Question 29 80291 09232024011844000000

AF
AF
EF
EF
H2
H2
H1
H1
BE
BE
Suggested answer: B
asked 23/09/2024
Ammar Khan
30 questions

Question 30

Report Export Collapse

On an Nokia IOM 3, how is buffer memory allocated per forwarding complex?

512 MB ingress, 512 MB egress
512 MB ingress, 512 MB egress
256 MB ingress, 256 MB egress
256 MB ingress, 256 MB egress
1 GB dynamically allocated between ingress and egress.
1 GB dynamically allocated between ingress and egress.
768 MB dynamically allocated between ingress and egress.
768 MB dynamically allocated between ingress and egress.
768 MB, with a minimum of 256 MB ingress and egress, and an additional 256 MB dynamically allocated.
768 MB, with a minimum of 256 MB ingress and egress, and an additional 256 MB dynamically allocated.
Suggested answer: D
asked 23/09/2024
Marcos Antonio Dantas
45 questions
