Question 71

(0)

Which of the following statements regarding the egress port scheduler is TRUE?

Question 72

(0)

Traffic assigned to forwarding classes is placed into queues, while the contents of the queues are serviced in a controlled manner using____________.

Question 73

(0)

To implement Hierarchical-QoS (Multi-tiered scheduling), which of the following actions must be undertaken? (Choose three)

Question 74

(0)

Which of the following statements regarding policing and shaping on the Nokia 7750 SR are TRUE? (Choose two)

Question 75

(0)

Click the exhibit button below. Given this scheduler-policy configuration, which of the following can be said about the scheduler called 'high'? (Choose two)

Question 76

(0)

At which points can traffic be marked or remarked on the Nokia 7750? (Choose two)

Question 77

(0)

Which of the following statements regarding egress FC and profile over-ride are TRUE? (Choose two)

Question 78

(0)

Which of the following are trusted boundaries, by default? (Choose two)

Question 79

(0)

A service provider is using GRE for his transport tunnel on the Nokia 7750 SR. How can traffic be marked as it traverses the service provider's network? (Choose two)

Question 80

(0)

In which of the following scenarios is self-generated traffic QoS (sgt-QoS) useful?

Question 71

Which of the following statements regarding the egress port scheduler is TRUE?

The egress port scheduler can have up to 17 children spread across 8 levels.

Multiple egress port schedulers can be assigned to a single port with many HQoS children.

Multiple HQoS policies can be children of a single port scheduler.

Multiple egress port schedulers can be children of a single HQoS scheduler.

Show Answer Comment (0)

Question 72

Traffic assigned to forwarding classes is placed into queues, while the contents of the queues are serviced in a controlled manner using____________.

WRED

shapers

schedulers

markers

weighted fair queues (WFQ)

Show Answer Comment (0)

Question 73

To implement Hierarchical-QoS (Multi-tiered scheduling), which of the following actions must be undertaken? (Choose three)

H-QoS capabilities must be enabled globally on the router

A scheduler-policy must be configured.

The queues in the SAP-ingress and SAP-egress policies do not require additional configuration attributes to make use of the hierarchical schedulers.

The network queue policy must be configured to make use of the scheduler-policy.

The scheduler-policy must be referenced in the SAP-ingress and SAP-egress policies.

The scheduler-policy must be applied on the service SAP.

Show Answer Comment (0)

Question 74

Which of the following statements regarding policing and shaping on the Nokia 7750 SR are TRUE? (Choose two)

The larger the configured MBS value, the lower the amount of shaping performed.

When policing is enabled on the SAP-ingress, all traffic is considered as in-profile.

Setting the CIR to 1000 and the PIR to max will enable shapeless policing at 1 Mbps within the SAP-egress policy.

Configuring MBS to equal CBS will disable shaping.

Setting the CIR and PIR to equal values disables soft-policing.

Show Answer Comment (0)

Question 75

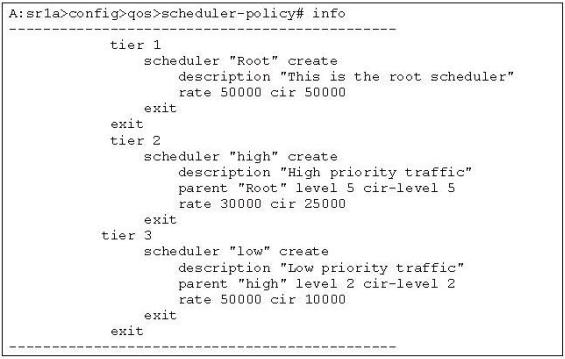

Click the exhibit button below. Given this scheduler-policy configuration, which of the following can be said about the scheduler called 'high'? (Choose two)

It is a parent scheduler.

It is the top-level scheduler.

It can allocate up to 50 Mbps of bandwidth to scheduler 'low' since the bandwidth is not used by another Tier 3 scheduler.

It is a child scheduler.

It can only have queues as children.

Show Answer Comment (0)

Question 76

At which points can traffic be marked or remarked on the Nokia 7750? (Choose two)

SAP-ingress only

SAP-egress only

SAP-ingress and SAP-egress

Network ingress

Network egress

Show Answer Comment (0)

Question 77

Which of the following statements regarding egress FC and profile over-ride are TRUE? (Choose two)

Packets can be classified into 16 different FCs when using priority mode queuing.

This feature is available on egress SAPs within any service.

MPLS EXP bits can be changed based on multi-field classification.

If a Behavior Aggregate (BA) and Multi-field (MF) match occurs, only the MF override parameters will take effect.

If a Behavior Aggregate (BA) and Multi-field (MF) match occurs, the BA classification can override the forwarding class while the MF classification can override the profile.

Show Answer Comment (0)

Question 78

Which of the following are trusted boundaries, by default? (Choose two)

An IES SAP

A VPLS SAP

A network port

AVPRN SAP

An access port

Show Answer Comment (0)

Question 79

A service provider is using GRE for his transport tunnel on the Nokia 7750 SR. How can traffic be marked as it traverses the service provider's network? (Choose two)

Using dot1p bits of the 802.1q Ethernet frame header

Using DSCP bits within the ToS field of the IP packet header.

Using the IP precedence bits within the ToS field of the IP packet header.

Using the CLP bit of the ATM cell header.

Using the EXP bits of the MPLS transport label header.

Show Answer Comment (0)
