Question 21
What is a Blue Prism Process?
Explanation:
A Blue Prism process is a graphical representation of a working computer program that automates manual repetitive tasks using business objects and stages.A process can be run by an operator or scheduled by a control room2.
Reference:2https://www.koenig-solutions.com/blue-prism-associate-developer-course
Question 22
Process rules or logic are evaluated in Blue Prism using which type of stage?
Explanation:
A decision stage is used to evaluate process rules or logic and branch the process flow based on the outcome of the evaluation.A decision stage can have multiple outcomes and can use expressions to compare values or check conditions1.
Reference:1https://portal.blueprism.com/sites/default/files/2021-05/Blue%20Prism%20Certification%20-%20Associate%20Developer%20-%20Certification%20Overview_0.pdf
Question 23

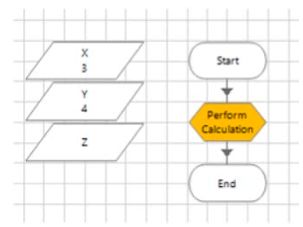

Examine the following Blue Prism Process diagram:
The initial values of the data items are displayed in the diagram above All 3 data items are configured as Number

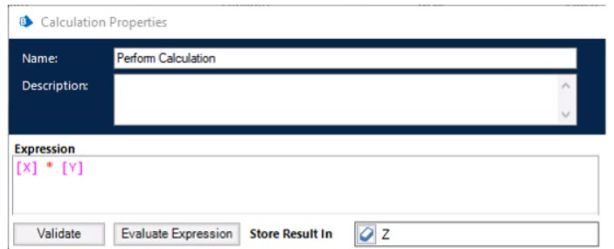

The 'Perform Calculation' stage Properties window is displayed below:
When this diagram is run through the the End stage, what will the current value of the Z data item be?
Explanation:
The calculation stage will assign the value of [X][Y] to the Z data item, which is 34 = 12.The blank spaces in the expression do not affect the calculation1.
Reference:1https://bpdocs.blueprism.com/bp-6-9/en-us/frmStagePropertiesCalculation.htm
Question 24
Which of the following items can be used in Blue Prism to transmit values between Process Pages?
(Select all items which apply)
Explanation:
Input parameters, output parameters and data items can be used to transmit values between process pages by passing or returning values from one page to another2.Lookup stages and calculation stages are not used for this purpose, as they are used to retrieve values from collections or perform calculations on values3.
Reference:2https://bpdocs.blueprism.com/bp-6-10/en-us/helpProcessPages.htm3https://bpdocs.blueprism.com/bp-6-10/en-us/helpCalculationsAndDecisions.htm
Question 25

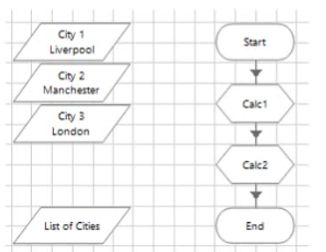

Examine the following Process flow:
The data item 'City V is configured as a Text data item and has an initial value of 'LiverpooI'.
The data item 'City 2' is configured as a Text data item and has an initial value of 'Manchester'.
The data item 'City 3* is configured as a Text data item and has an initial value of 'London'.
The data item 'List of Cities' is configured as a Text data item and has no initial value.

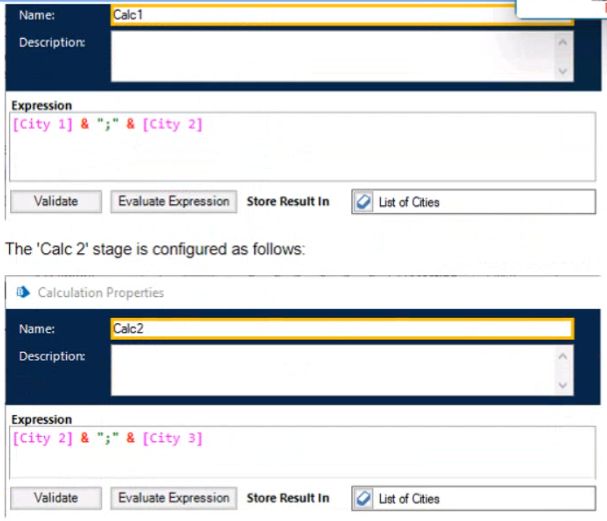

The 'Calc 1' stage is configured as follows:
What will the value of the list of Cities' data item be after the Process flow has run?
Explanation:
The calculation stage will append the values of City 1, City 2 and City 3 to the List of Cities data item, separated by spaces.The text data type can store words or phrases as well as numerical identifiers, and it has no character limit if the data is input by another method than manual1.
Reference:1https://bpdocs.blueprism.com/bp-7-0/en-us/helpDatatypes.htm
Question 26
DRAG DROP
Drag and drop the Blue Prism stage names on the left into the placement boxes (A - E) so that the dropped stage names correspond with the image of the Blue Prism stage beside it:
Question 27
What is a Blue Prism Expression?
Explanation:
A Blue Prism expression is a formula that can be entered into any stage to produce a value or perform an action.It can use data items, operators, functions and constants to create complex expressions that can manipulate data or control the flow of the process1.
Reference:1https://bpdocs.blueprism.com/bp-6-10/en-us/helpCalculationsAndDecisions.htm
Question 28
A Blue Prism Process reads data about a customer from an online form which includes their date of birth A Process must determine if the customer is under the age of 18 before processing the customer request
What type of Blue Prism stage would you use to test the customers age?
Explanation:
A decision stage is used to evaluate process rules or logic and branch the process flow based on the outcome of the evaluation.A decision stage can have multiple outcomes and can use expressions to compare values or check conditions1.In this case, a decision stage can be used to compare the customer's date of birth with the current date and determine if they are under 18 or not.
Reference:1https://bpdocs.blueprism.com/bp-6-10/en-us/helpCalculationsAndDecisions.htm
Question 29

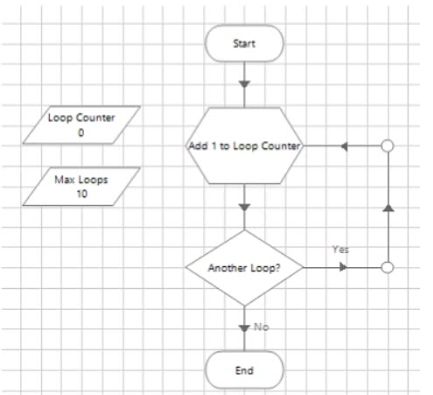

Examine the following diagram from a Blue Prism Process:
This is an example of a common looping diagram which you will see within Blue Prism Processes What is the name given for this type of flow diagram?
Explanation:
A circular path is a type of flow diagram that uses links to create a loop in the process flow, which can be repeated until a certain condition is met or an exception is thrown2.A circular path typically consists of a decision stage, a loop end stage and a loop start stage3.
Reference:2https://bpdocs.blueprism.com/bp-6-10/en-us/helpProcessFlow.htm3https://bpdocs.blueprism.com/bp-6-10/en-us/helpLooping.htm
Question 30
Which area of Blue Prism would you use to develop a Blue Prism Process?
Explanation:
Process Studio is the area of Blue Prism where processes are created and edited using stages and links to form graphical representations of working computer programs that automate manual repetitive tasks. Process Studio provides various tools and features to design, test and debug processes.
Reference: https://bpdocs.blueprism.com/bp-6-10/en-us/helpProcessStudio.htm https://www.koenig-solutions.com/blue-prism-associate-developer-course
